The Durable MARK50 Drilling Rig


THE VERSA-DRILL MARK50 drilling rig PROVIDES ASTONISHING POWER ALONGSIDE OUR PROVEN DURABILITY AND EASE.

Combining the reputable efficiency of past drills with innovative technology, the water well drilling rig MARK50’s size and drilling abilities makes this air-rotary drilling rig a note-worthy addition to any fleet.

With 50,000 lb pullback and 28,000 lb pulldown, the water well drilling rig MARK50 proves its strength among the Versa-Drill fleet. Its exceptional, easy-to-use technology makes its compressor air drilling function stand out from other drills in a competitive market. For the toughest jobs, rely on Versa-Drill’s tested grit and the MARK50’s impressive air and mud drilling capabilities.

APPLICATIONS FOR THE MARK50 drilling rig:

  • Air Rotary Drilling

  • Cathodic Protection Drilling

  • Water Well Drilling

  • Exploration Drilling

  • Geothermal Drilling

Compare Rigs

Mark50 Drilling rig spec sheet

Download the Mark50 Drilling Rig Guide

Standard Features and Specifications

CARRIER

  • Peterbilt 567 6x4

  • Cummins ISX with 605 HP

  • 13-speed transmission

  • 210-gallon fuel tanks

TRANSFER CASE

  • NAMCO

HYDRAULIC SYSTEM

  • Bosch Rexroth

TOP HEAD

  • Variable 3-speed/torque with 2.4” thru-hole

  • 0-125 rpm @ 8,100 lbf·ft

  • 0-175 rpm @ 5,840 lbf·ft

  • 0-250 rpm @ 3,545 lbf·ft

DERRICK & FEED SYSTEM

  • 26’ top head travel

  • 50,000 lbs pullback

  • 28,000 lbs pulldown

  • 158 FPM up

  • 235 FPM down

ROD HANDLING

  • 3.5”x20’ - 15 rod carousel/15 rod box

  • 4.5”x20’ - 11 rod carousel/9 rod box

MAIN WINCH

  • 18,000 lb.

CENTRALIZER TABLE

  • 20” through centralizer bushings

  • 24” fully open

CONTROL PANEL

  • Electric over hydraulic controls

  • Marine grade electric switches

  • Hydraulic joysticks

  • 12” touch screen display

  • Twin aluminum platforms

  • Aluminum console cover

LEVELING JACKS

  • Two 36” stroke independently controlled

  • Two 48” stroke independently controlled

WORK LIGHTS

  • 8 LED night lights

TOOL BOXES

  • 14”x12”x24”

  • 24”x24”x30”

OVERALL DIMENSIONS

  • Length: 40’

  • Width: 8.5’

  • Derrick up height: 44’

  • Derrick down height: 13’4”

Options/Upgrades (at additional cost)

MAIN WINCH

  • 25,000 lb.

AUXILIARY WINCH

  • 4,000 lb.

  • 8,000 lb.

  • Free fall options available

MUD PUMP

  • 4x3x13 centrifugal 425 gpm/300 psi

  • 5x6 piston 200 gpm/310 psi (skid mounted)

  • 5.5x8 piston 317 gpm/338 psi (skid mounted)

  • 6x8 piston (skid mounted)

AIR COMPRESSOR

  • 500 cfm/200 psi Vanair

  • 600 cfm/250 psi Vanair

  • 1070 cfm/350 psi Doosan/Bobcat

LINE OILER

  • 7-gallon venturi

WATER INJECTION

  • 25 gpm FMC

  • 75 gpm American Mfg Company

  • Foam pulse pump

ADDITIONAL OPTIONS

  • 0-50 gpm/5,000 psi auxiliary hydraulics

  • TIREBOSS™ tire pressure control system

  • Swing out grouter (multiple options)

  • Hose reel (multiple options)

  • Aluminum catwalk

  • Remote pendant for winches & jib boom

  • Versa-Rod spinner

  • 1-2-3 slot hammer holder

  • Stabilizer bushings

  • 300-gallon mud pit assembly

  • The MUD MANAGER solids control system

  • Cribbing rack

  • Chain wrench

Versa-Drill Geothermal drilling rigs can reach significant drilling depths, ranging to several thousand feet.

Versa-Drill Geothermal drilling rigs can reach significant drilling depths, ranging to several thousand feet.

Versa-Drill Geothermal drilling rigs are capable of constructing geothermal wells, which involve drilling, casing & cementing.

Versa-Drill Geothermal drilling rigs are capable of constructing geothermal wells, which involve drilling, casing & cementing.

Versa-Drill Geothermal drilling rigs employ techniques to ensure the stability of wellbores & preventing collapses.

Versa-Drill Geothermal drilling rigs employ techniques to ensure the stability of wellbores & preventing collapses.

Versa-Drill Geothermal driling rigs can construct injection wells to re-inject cooled fluids back into the subsurface.

Versa-Drill Geothermal driling rigs can construct injection wells to re-inject cooled fluids back into the subsurface.

Versa Drill Geothermal drilling rigs employ equipment to maintain proper pressure control during operations.

Versa Drill Geothermal drilling rigs employ equipment to maintain proper pressure control during operations.

Versa-Drill Geothermal drilling rigs enable monitoring of reservoir parameters for better resource management.

Versa-Drill Geothermal drilling rigs enable monitoring of reservoir parameters for better resource management.

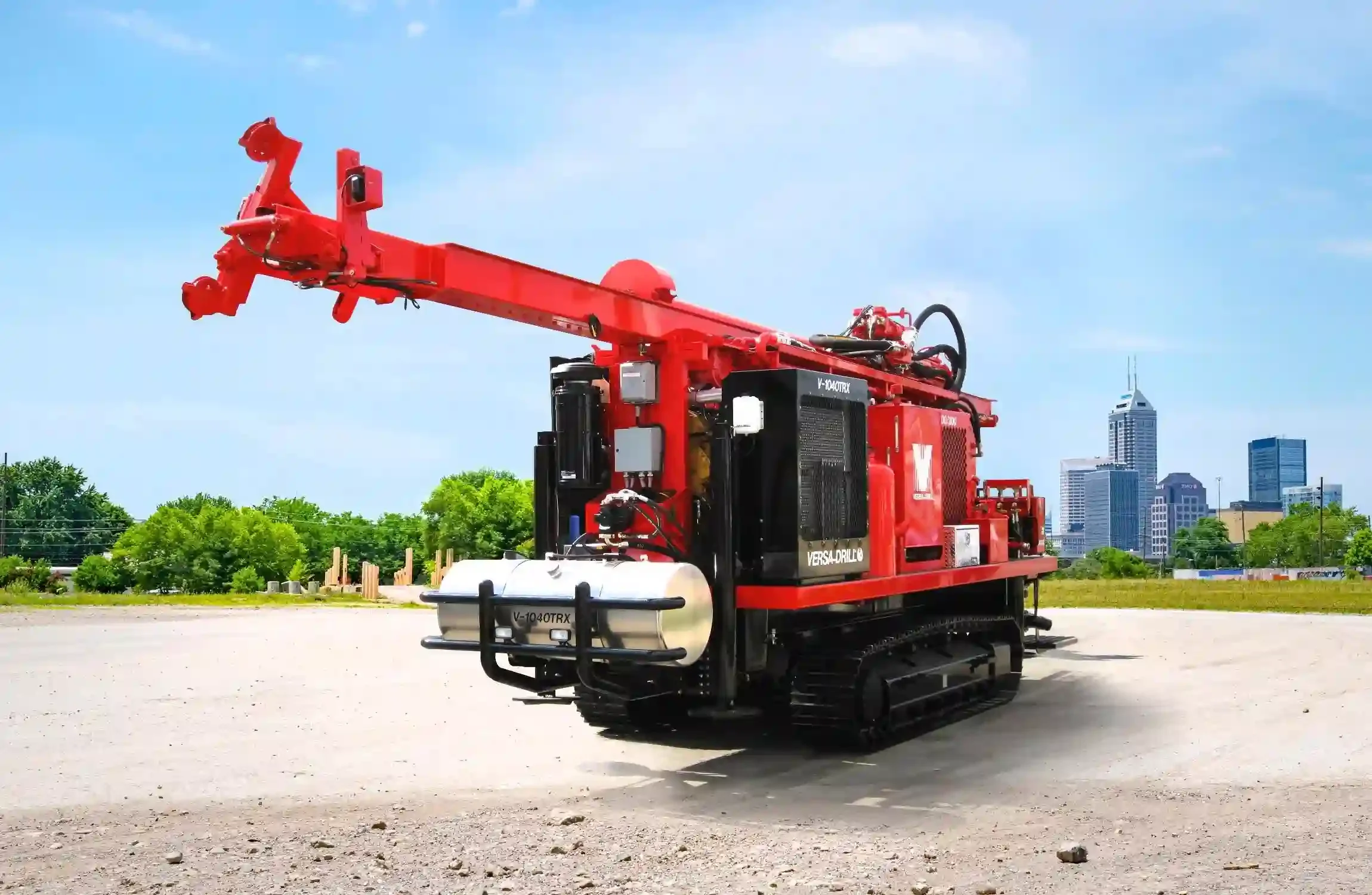

Versa-Drill Geothermal drilling rigs facilitate monitoring environmental parameters, ensuring regulation compliance.

Versa-Drill Geothermal drilling rigs facilitate monitoring environmental parameters, ensuring regulation compliance.

Drilling Rig Model Comparison

Specifications & Applications Overview

Model Image Carrier / Make Top Head Pullback Pulldown Carousel Control Panel Dimensions Applications
V-12 V-12 Ram 5500 4x42.5" thru-hole12,000 lbs7,000 lbs3"x20' - 7 rod7" display, CANBUS28'6" x 7'6", Up: 30', Down: 9'4"Air rotary, Water well, Geothermal, Exploration
V-125X V-125X Peterbilt 584 6x62.4" thru-hole25,000 lbs22,000 lbs3"x20' - 11 rod / 18 rod box12" touchscreen35'10" x 8', Up: 40', Down: 13'2"Air rotary, Geothermal, Exploration
V-140X V-140X Peterbilt 548 6x62.4" thru-hole40,000 lbs22,100 lbs3"x20' - 17 rod12" touchscreen35'10" x 8', Up: 40', Down: 13'2"Air rotary, Water well, Cathodic, Exploration
V-140TRX V-140TRX Cummins 9L 360HP2.4" thru-hole40,000 lbs22,100 lbsSame as V-140X12" touchscreenN/AAir rotary, Water well, Geothermal, Exploration
MARK50 MARK50 Peterbilt 567 6x42.4" thru-hole50,000 lbs28,000 lbs3"x20' - 15 rod12" touchscreen40' x 8.5', Up: 44', Down: 13'4"Air rotary, Water well, Geothermal, Exploration

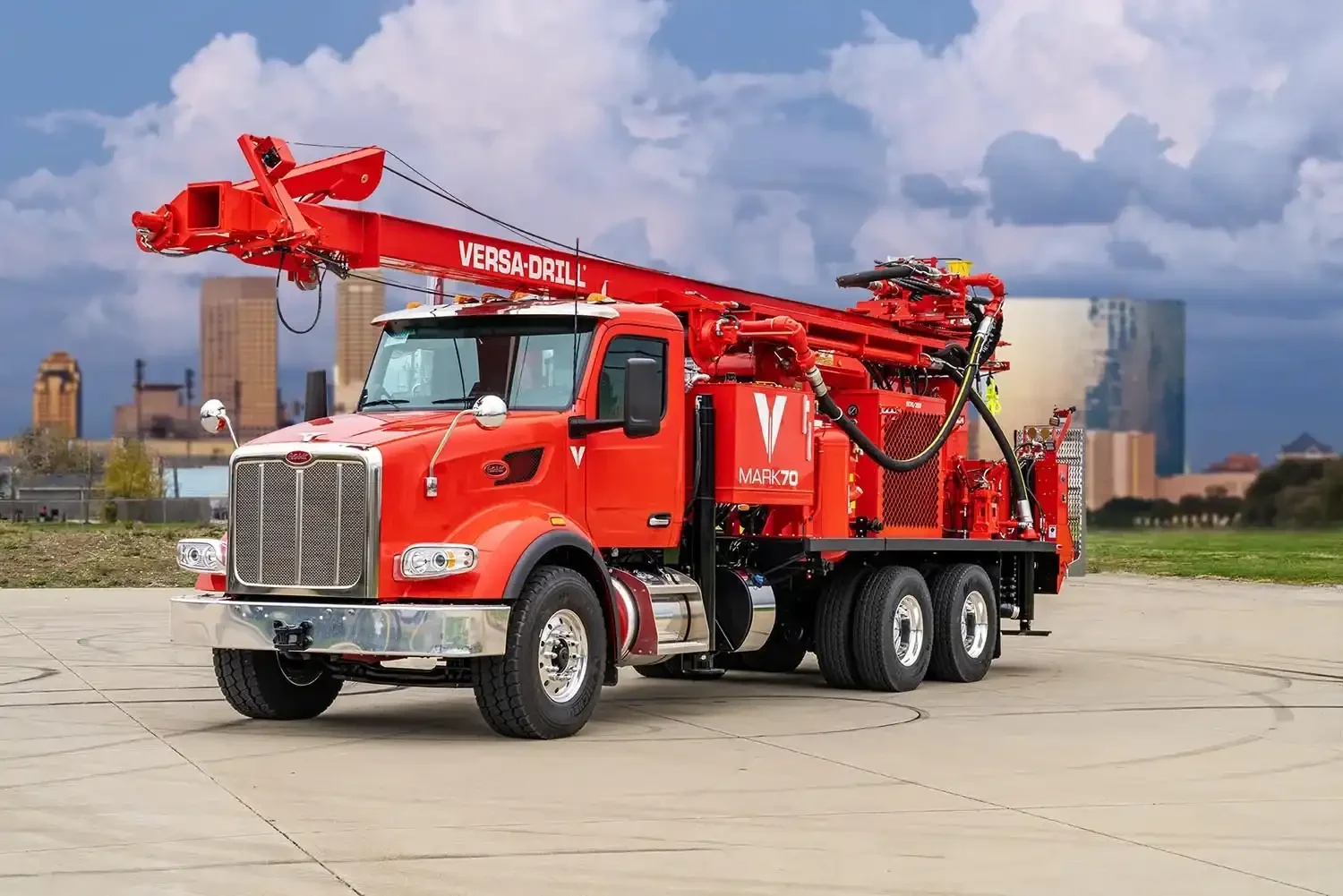

MARK70 MARK70 Peterbilt 567 6x42.4" thru-hole70,000 lbs28,000 lbs4.5"x20' - 25 rod auto12" touchscreen40' x 8.5', Up: 44', Down: 13'4"Air rotary, Water well, Geothermal, Exploration
VERSA-SONIC VERSA-SONIC Peterbilt 548 6x4Sonicor 50k25,000 lbs22,100 lbsNo carousel4" touchscreen35'10" x 8', Up: 40', Down: 13'2"Air rotary, Water well, Geothermal, Exploration
V-12

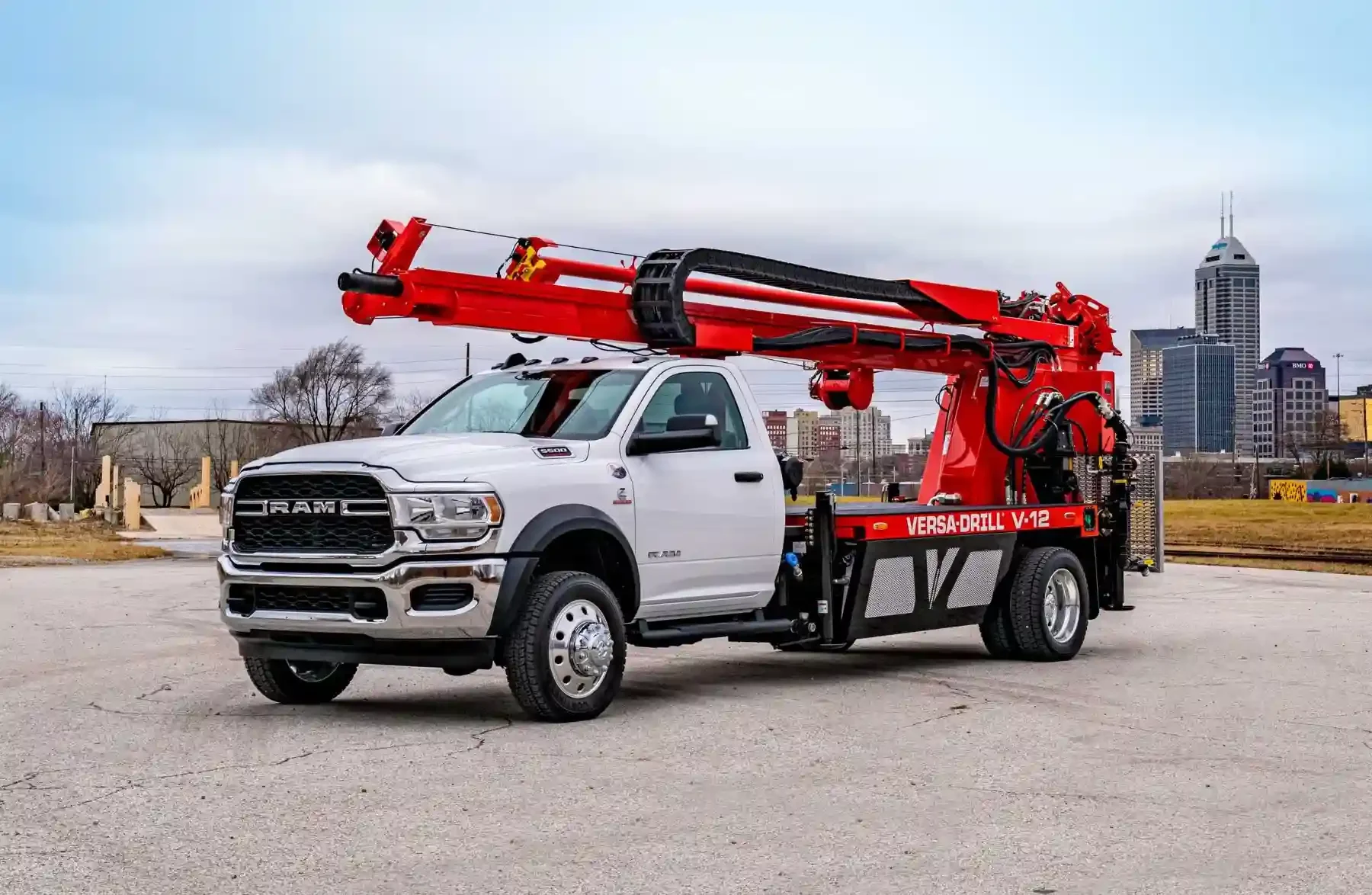

V-12 drilling rig
Carrier/MakeRam 5500 4x4
Top Head2.5" thru-hole
Pullback12,000 lbs
Pulldown7,000 lbs
Carousel3"x20' - 7 rod
Control Panel7" display, CANBUS
Dimensions28'6" x 7'6", Up: 30', Down: 9'4"
ApplicationsAir rotary, Water well, Geothermal, Exploration
V-125X

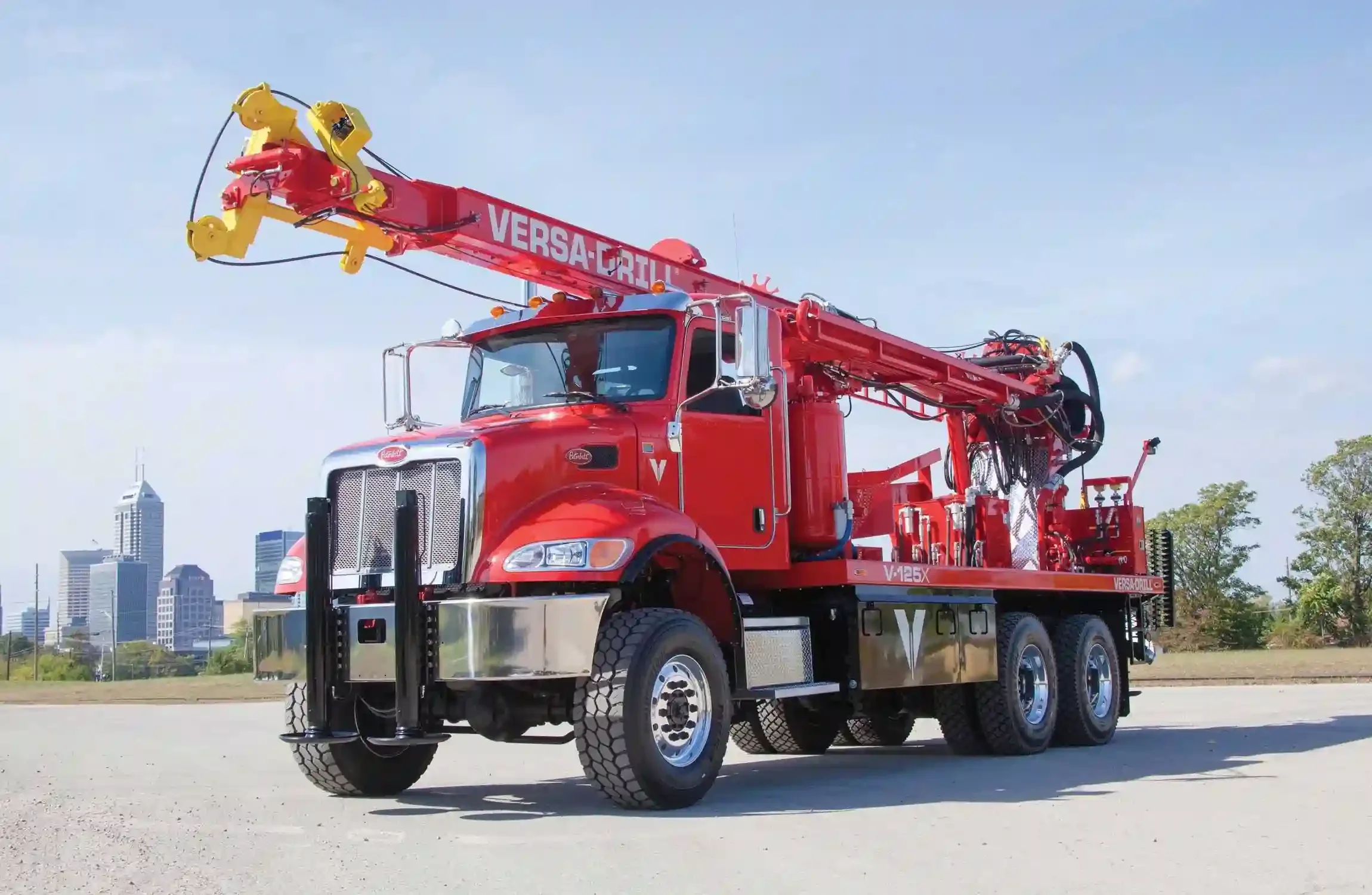

V-125X drilling rig
Carrier/MakePeterbilt 584 6x6
Top Head2.4" thru-hole
Pullback25,000 lbs
Pulldown22,000 lbs
Carousel3"x20' - 11 rod / 18 rod box
Control Panel12" touchscreen
Dimensions35'10" x 8', Up: 40', Down: 13'2"
ApplicationsAir rotary, Geothermal, Exploration
V-140X

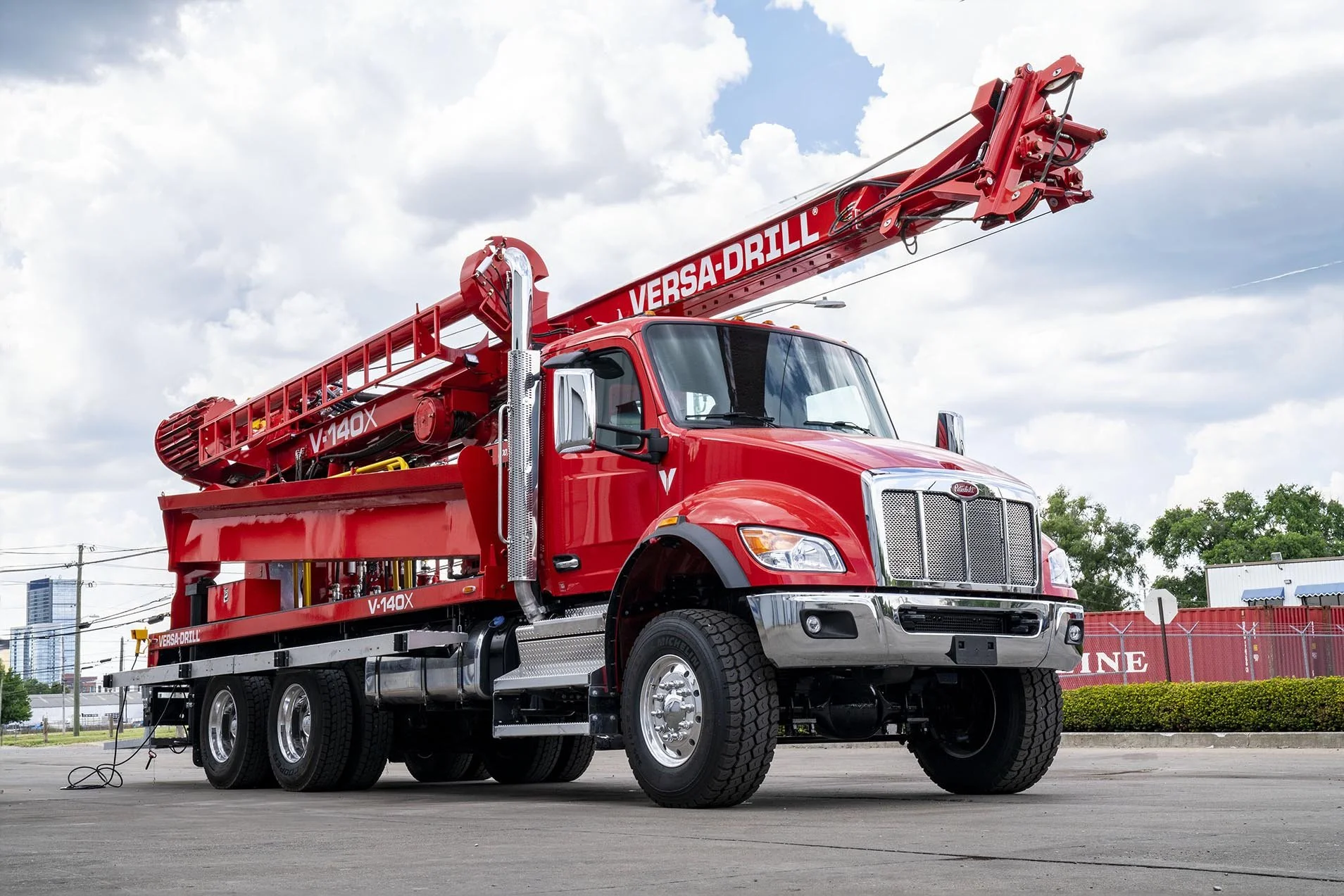

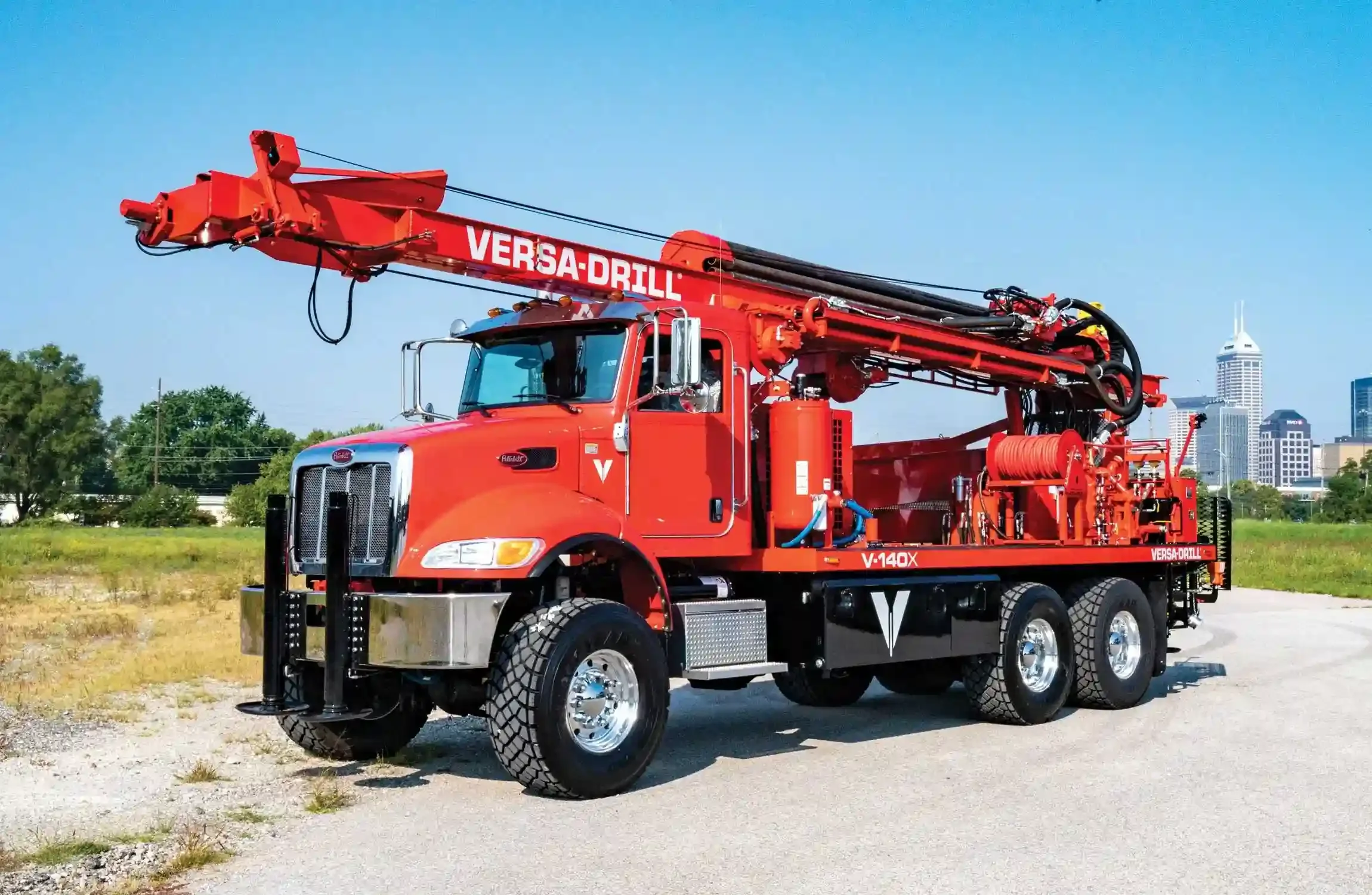

V-140X drilling rig
Carrier/MakePeterbilt 548 6x6
Top Head2.4" thru-hole
Pullback40,000 lbs
Pulldown22,100 lbs
Carousel3"x20' - 17 rod
Control Panel12" touchscreen
Dimensions35'10" x 8', Up: 40', Down: 13'2"
ApplicationsAir rotary, Water well, Cathodic, Exploration
V-140TRX
V-140TRX drilling rig
Carrier/MakeCummins 9L 360HP
Top Head2.4" thru-hole
Pullback40,000 lbs
Pulldown22,100 lbs
CarouselSame as V-140X
Control Panel12" touchscreen
DimensionsN/A
ApplicationsAir rotary, Water well, Geothermal, Exploration
MARK50

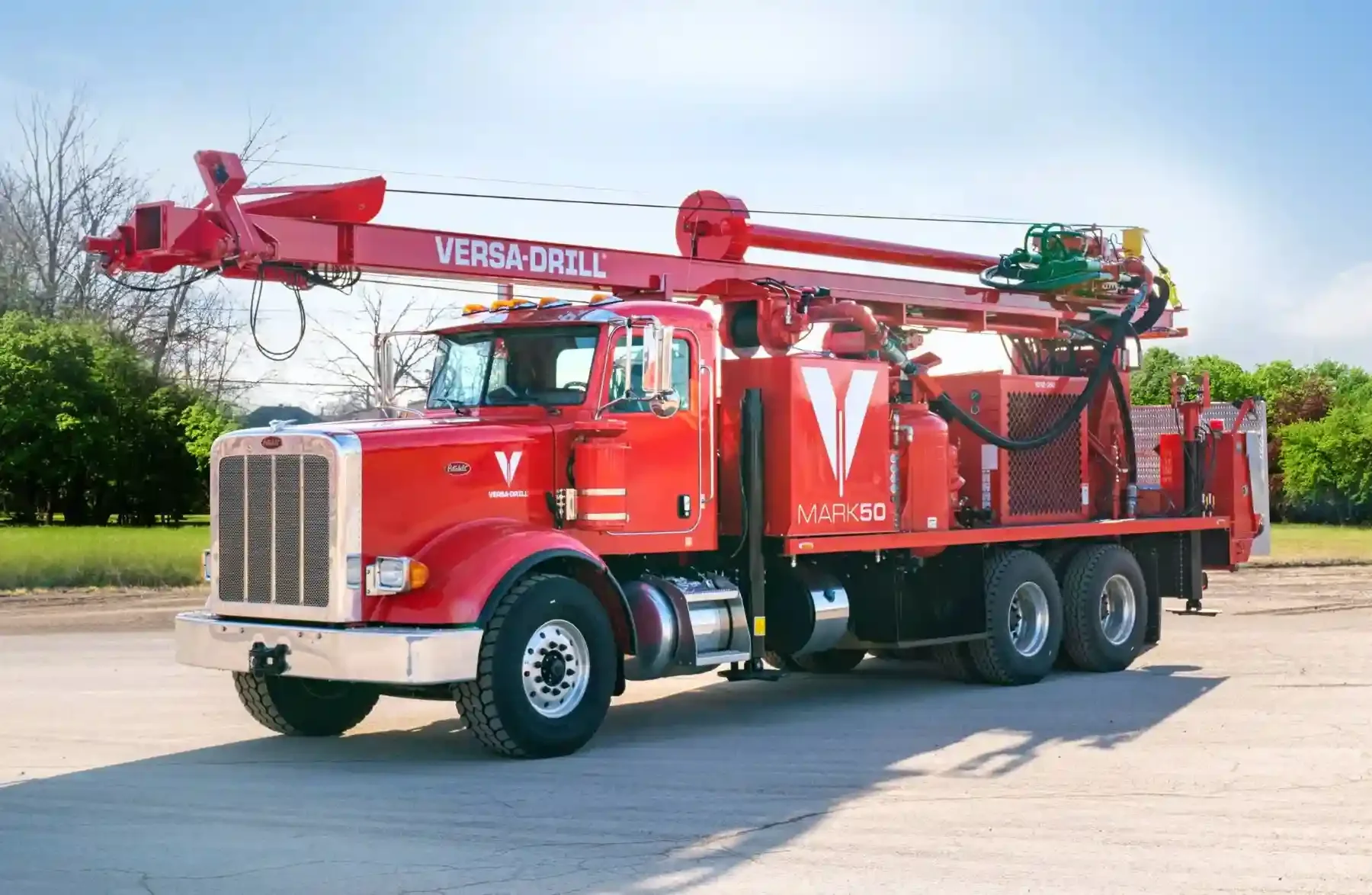

MARK50 drilling rig
Carrier/MakePeterbilt 567 6x4
Top Head2.4" thru-hole
Pullback50,000 lbs
Pulldown28,000 lbs
Carousel3"x20' - 15 rod
Control Panel12" touchscreen
Dimensions40' x 8.5', Up: 44', Down: 13'4"
ApplicationsAir rotary, Water well, Geothermal, Exploration
MARK70

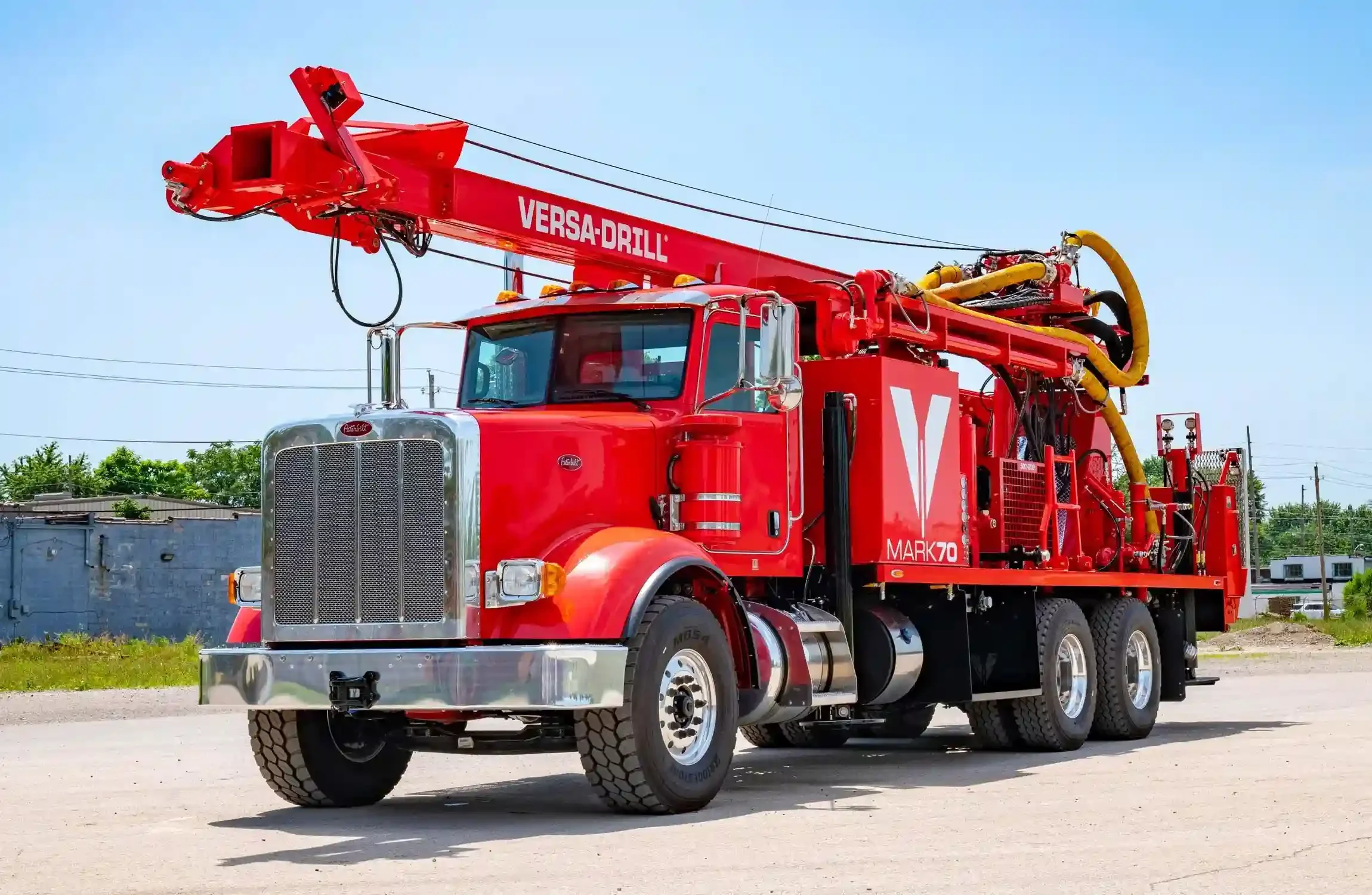

MARK70 drilling rig
Carrier/MakePeterbilt 567 6x4
Top Head2.4" thru-hole
Pullback70,000 lbs
Pulldown28,000 lbs
Carousel4.5"x20' - 25 rod auto
Control Panel12" touchscreen
Dimensions40' x 8.5', Up: 44', Down: 13'4"
ApplicationsAir rotary, Water well, Geothermal, Exploration
VERSA-SONIC

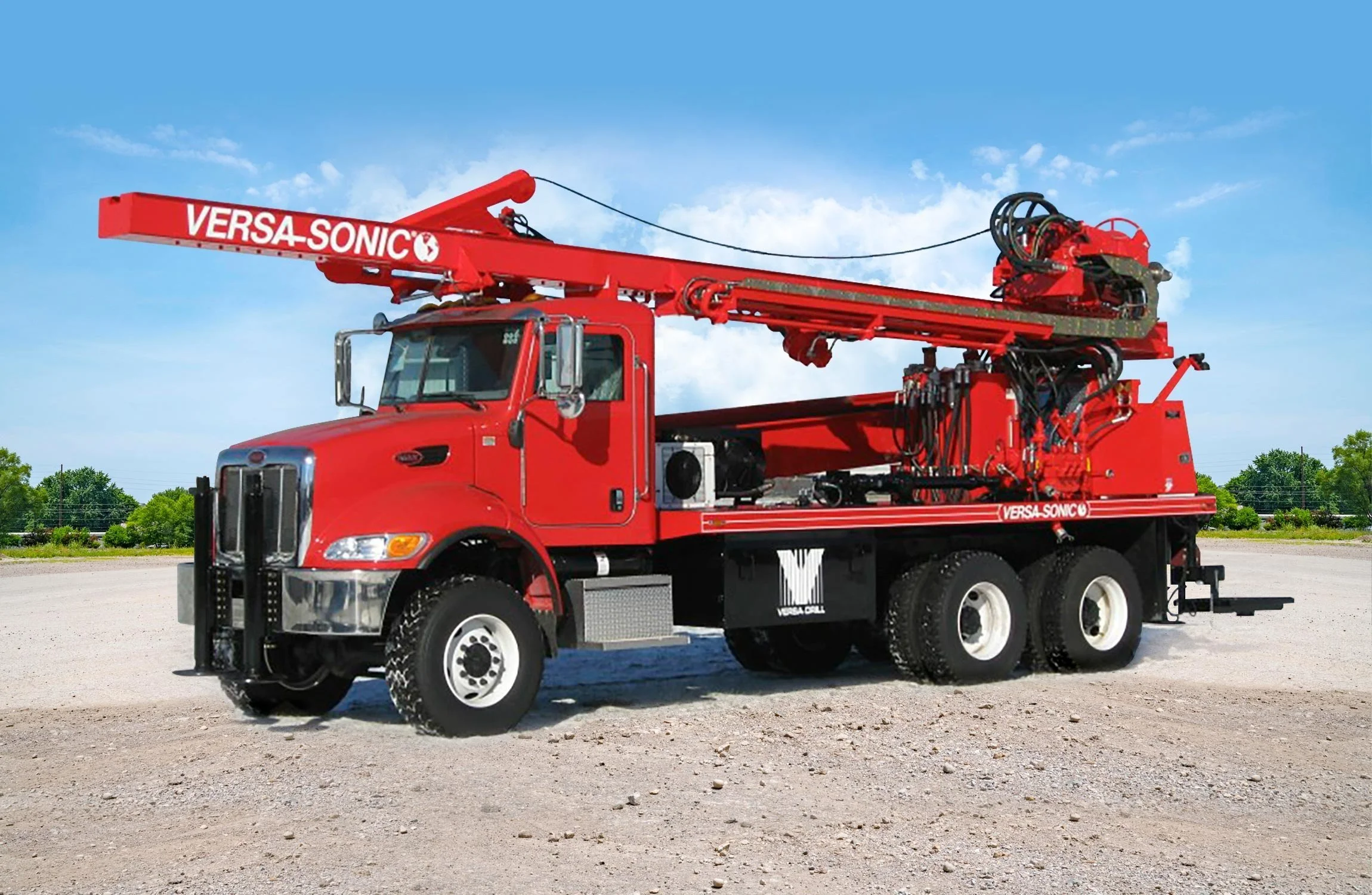

VERSA-SONIC drilling rig
Carrier/MakePeterbilt 548 6x4
Top HeadSonicor 50k
Pullback25,000 lbs
Pulldown22,100 lbs
CarouselNo carousel
Control Panel4" touchscreen
Dimensions35'10" x 8', Up: 40', Down: 13'2"
ApplicationsAir rotary, Water well, Geothermal, Exploration
