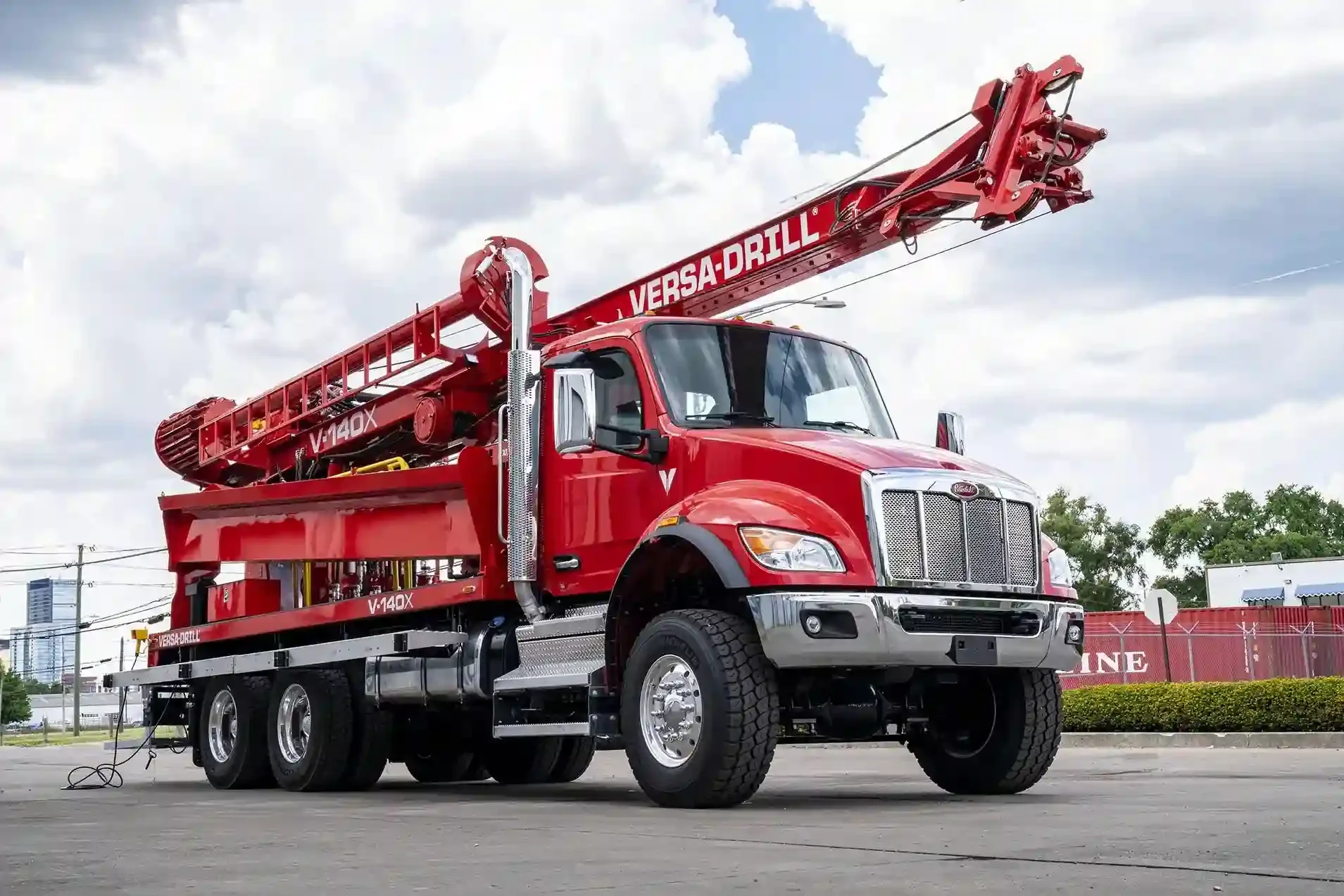

Top PErforming v-140X Drilling Rig


Unrivaled in performance, the Versa-Drill V-140X Drilling rig has the lightweight capability of our V-125X drilling rig with even more amazing power.

A top-seller, the water well drilling rig V-140X’s forward-thinking technology expands on earlier models to offer improved efficiency and potential for tough, everyday drilling.

With 40,000 lbs pullback and 22,100 lbs pulldown, the water well drilling rig V-140X establishes its reputation as an unbeatable, cost-effective asset. Its 180-degree swing and extending jib arm give greater flexibility and function for whatever type of work you need to be done. To accomplish your water or geothermal drilling goals, turn to the V-140X to get the job done right.

APPLICATIONS FOR THE v-140x drilling rig:

  • Air Rotary Drilling

  • Cathodic Protection Drilling

  • Water Well Drilling

  • Exploration Drilling

  • Geothermal Drilling

Compare Rigs

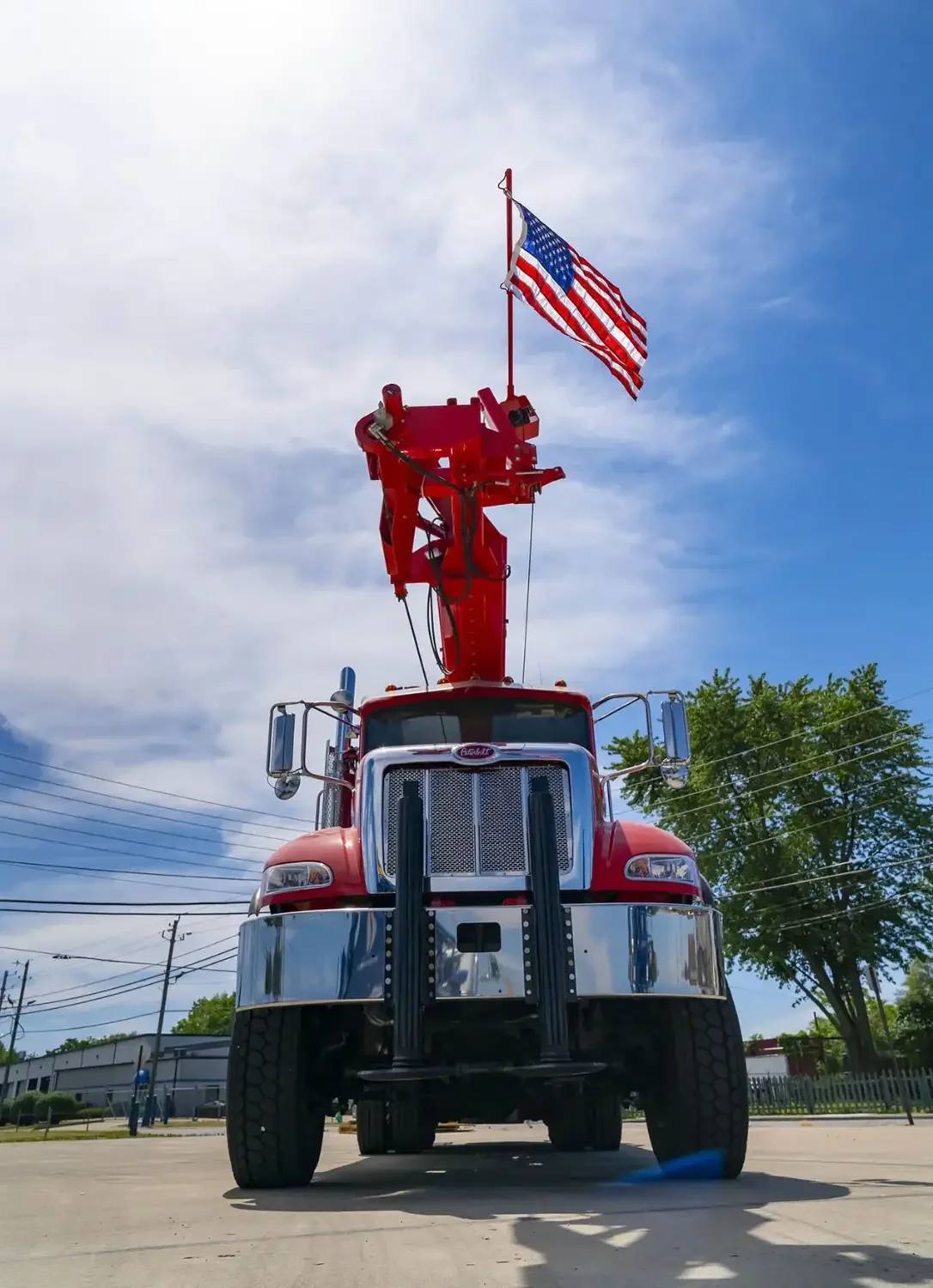

The V-140X drilling rig ensures accurate hole placement and depth control with precise drilling.

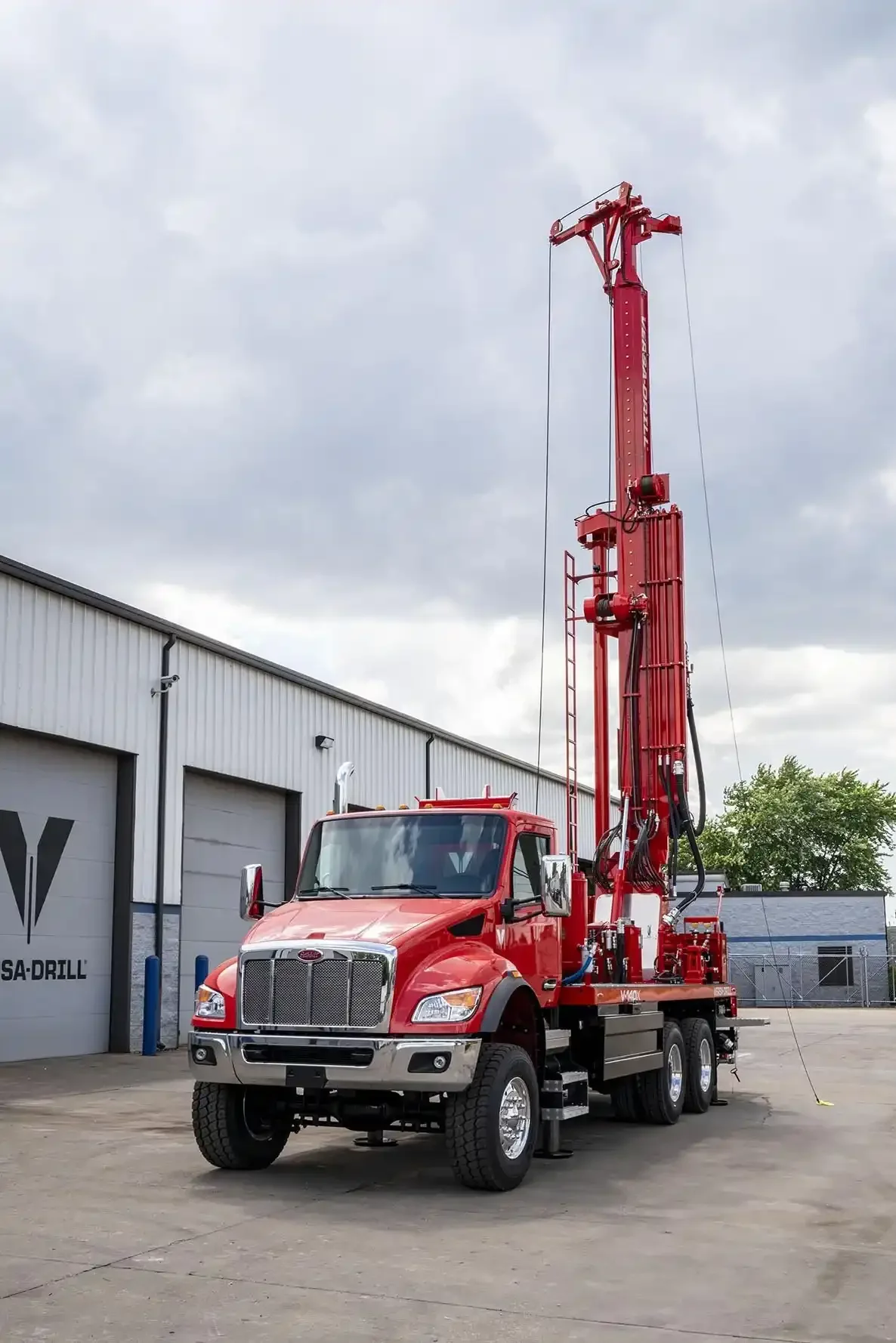

DSC00132 (1).webp

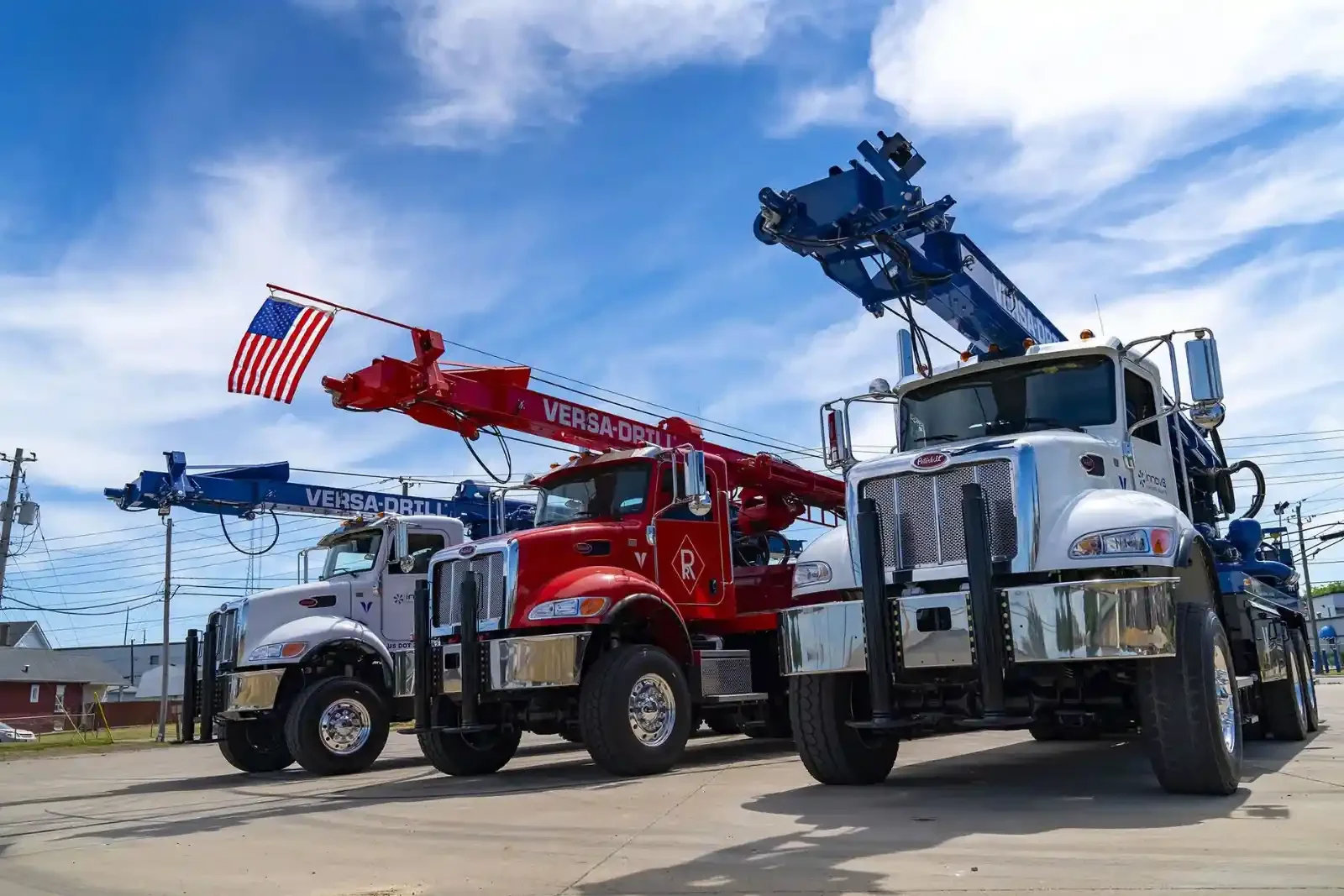

The V-140X drilling rig's mast allows for various drilling angles and positions.

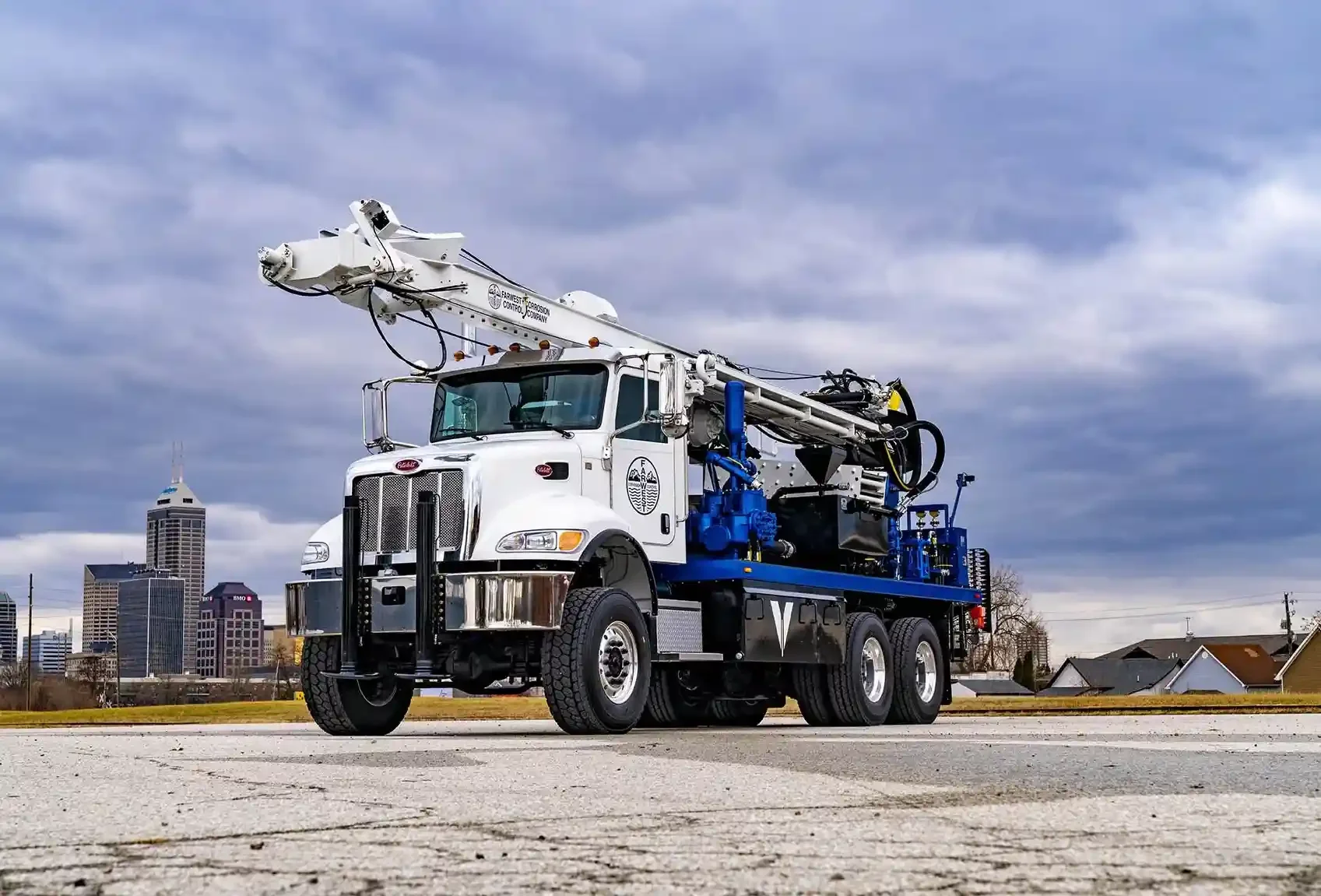

The V140x drilling rig can be easily transported to different job sites.

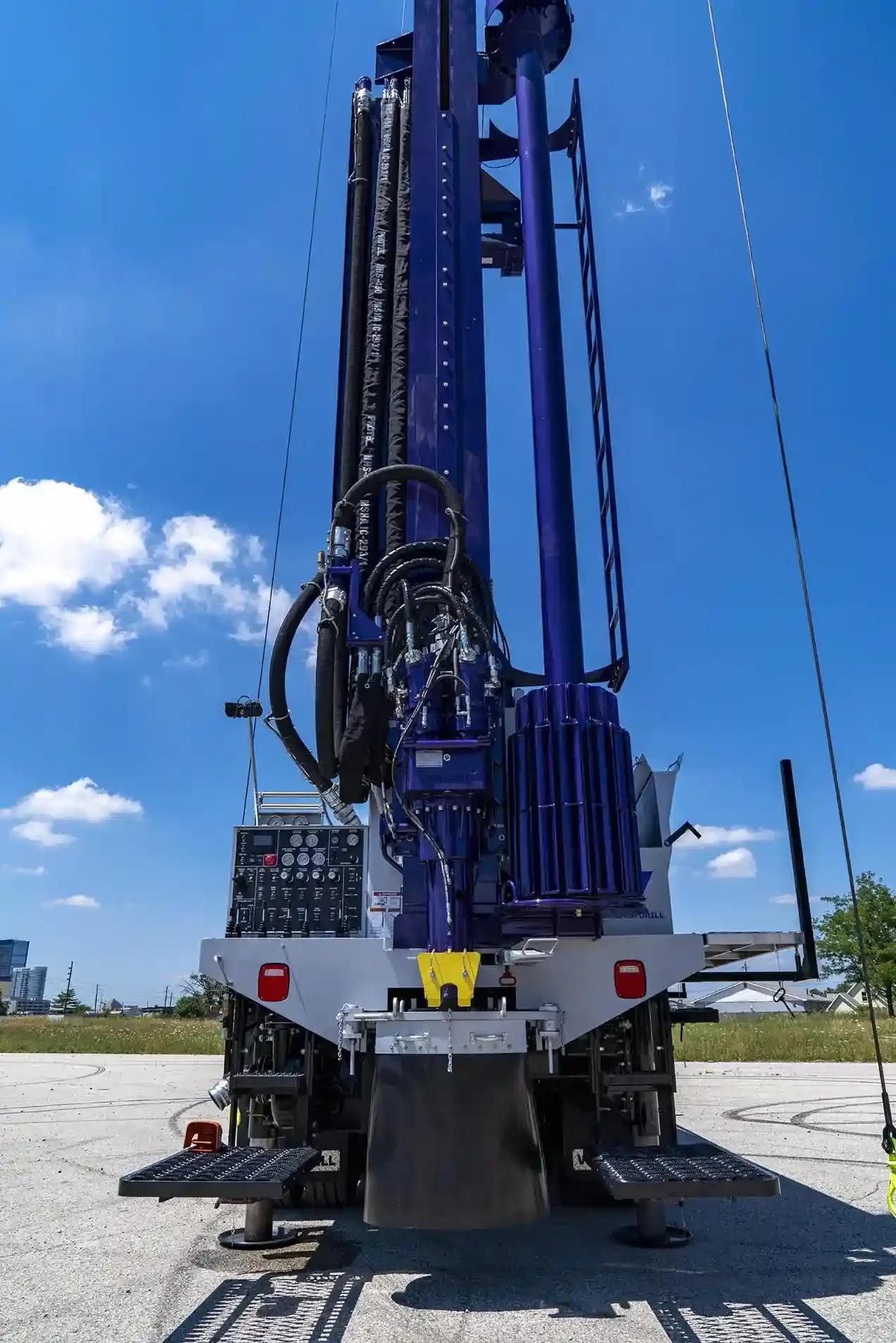

The V-140X drilling rig has a small footprint, making it suitable for tight spaces.

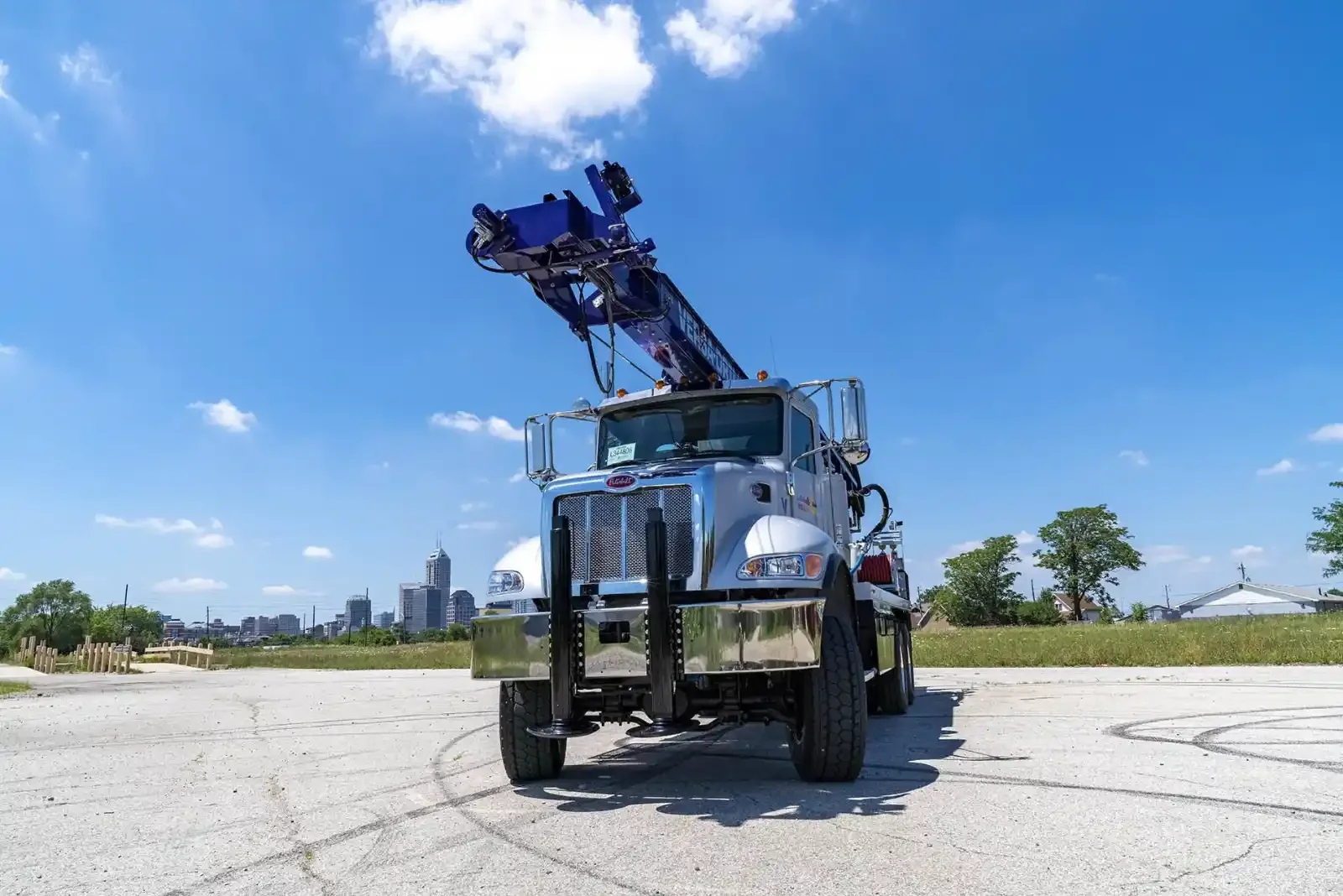

The V-140X drilling rig can be set up and ready for drilling in a short amount of time.

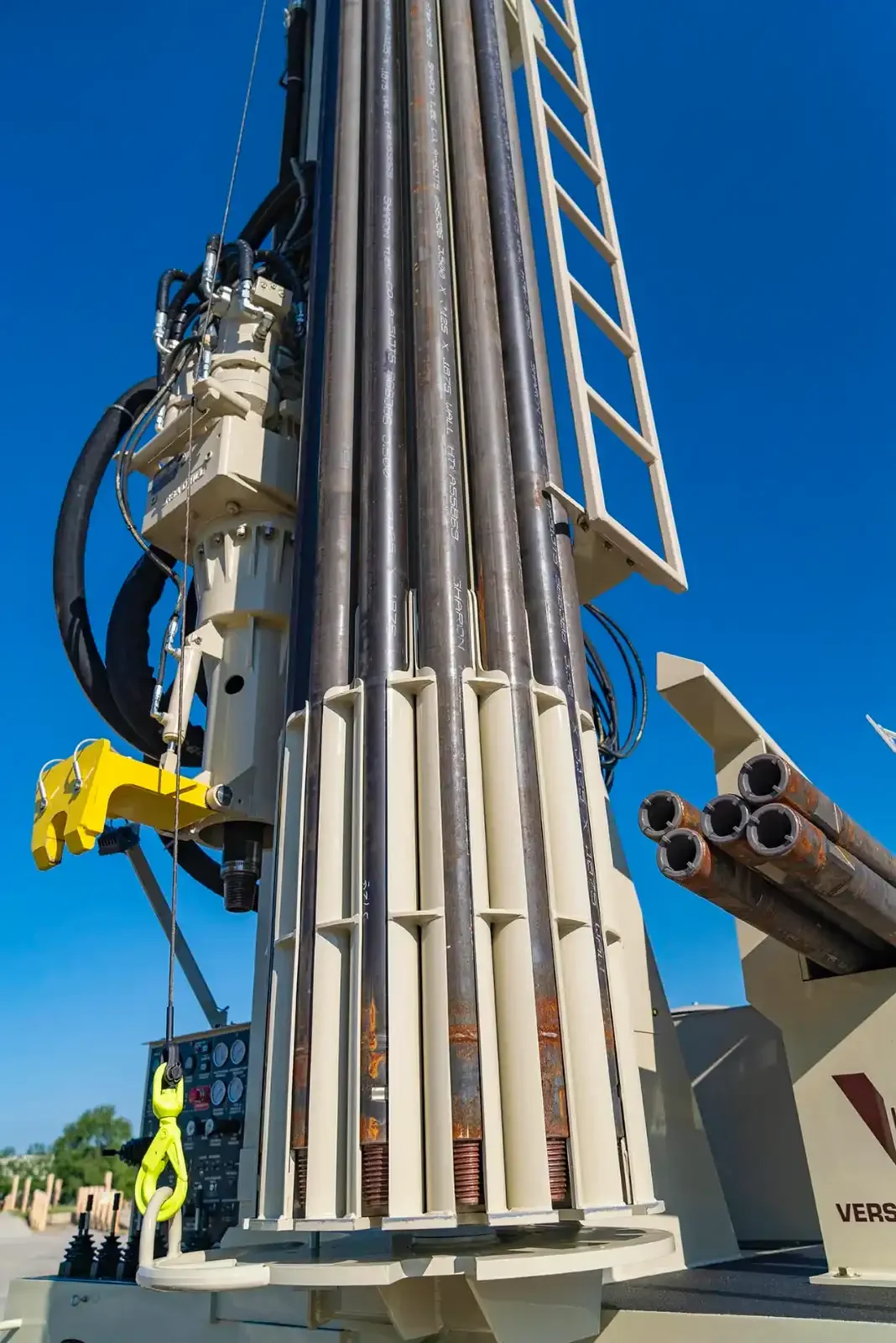

The V-140 X drilling rig's design minimizes its impact on the environment.

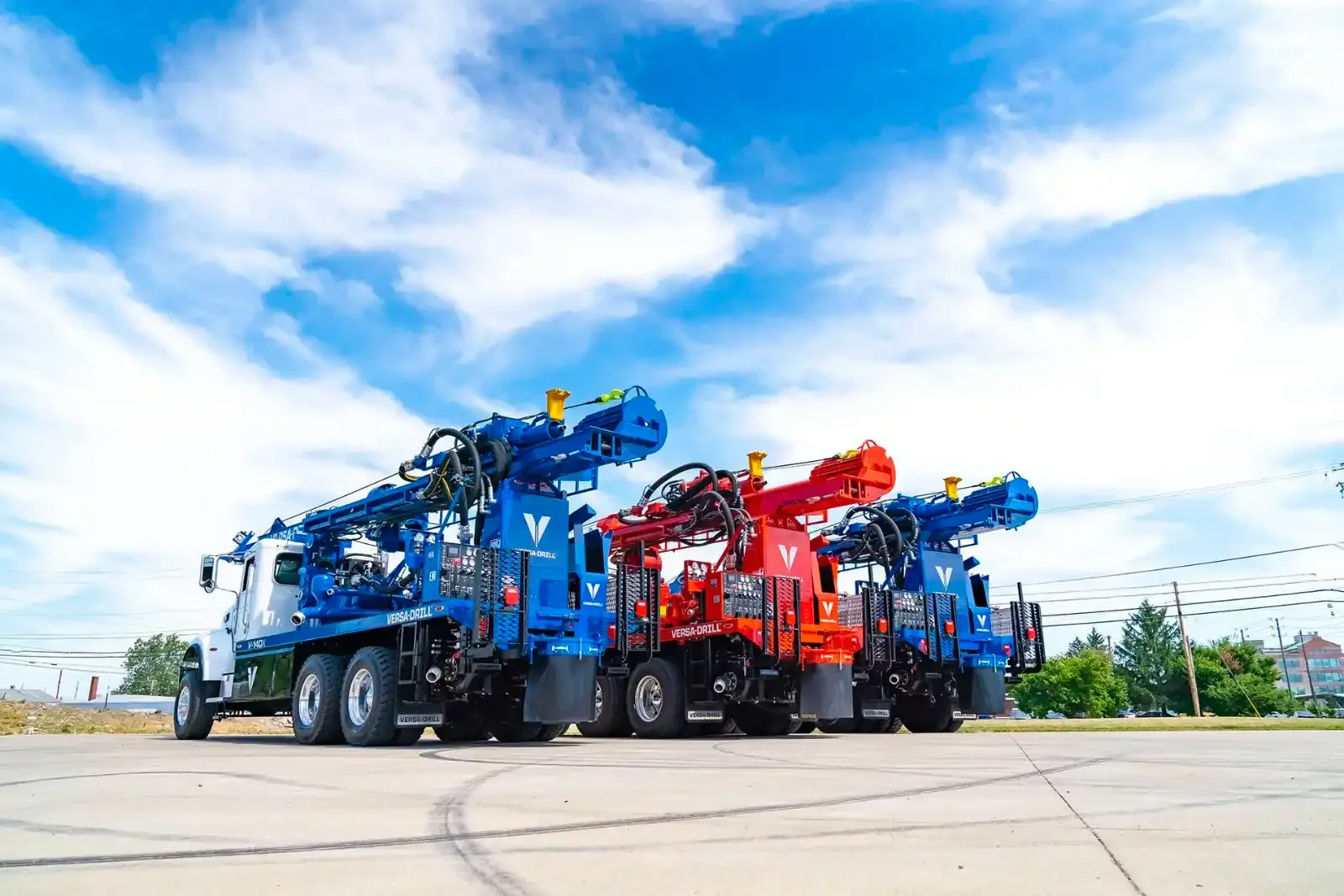

The V140X drilling rig incorporates safety measures to protect operators.

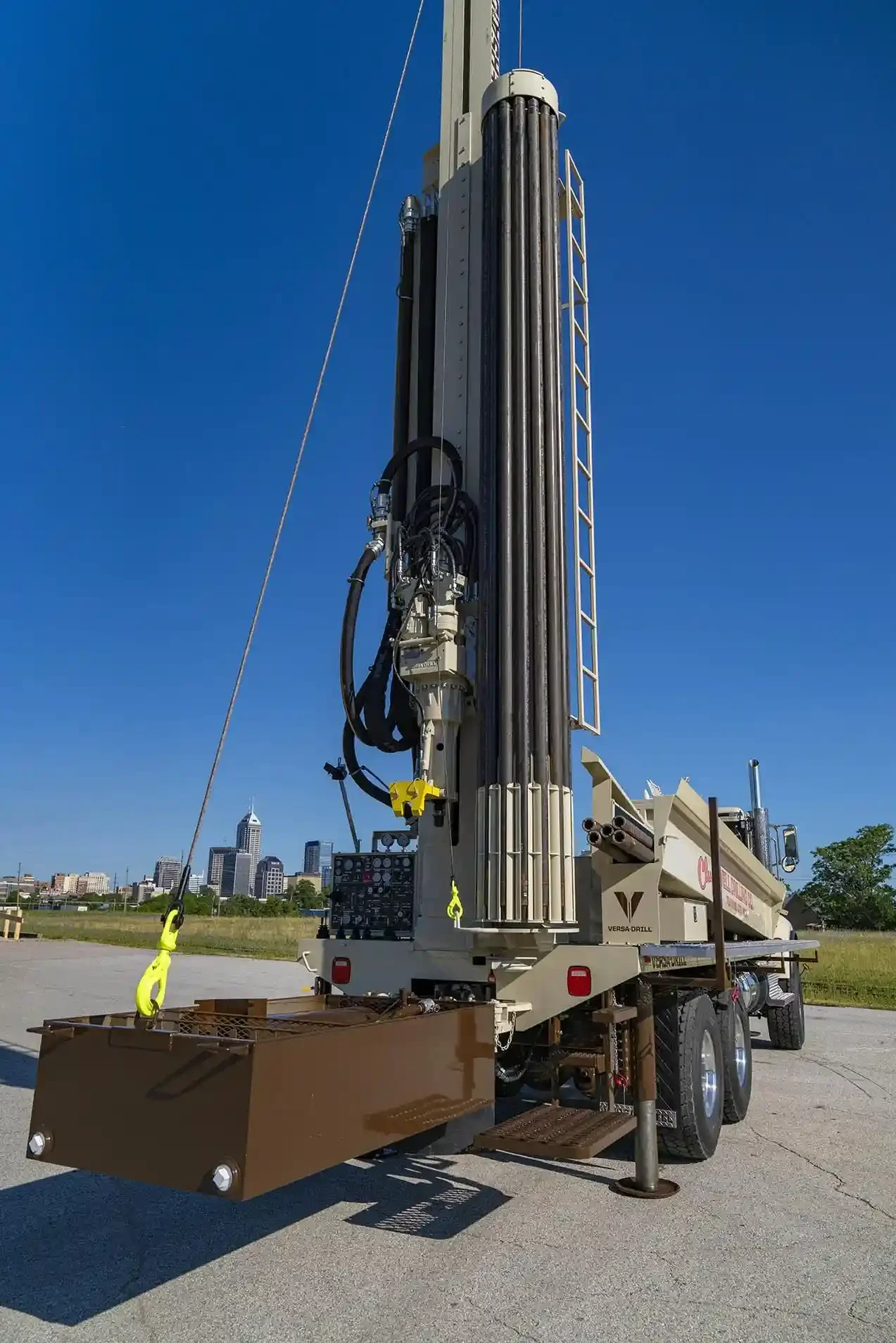

The V-140X drilling rig has intuitive controls for ease of operation.

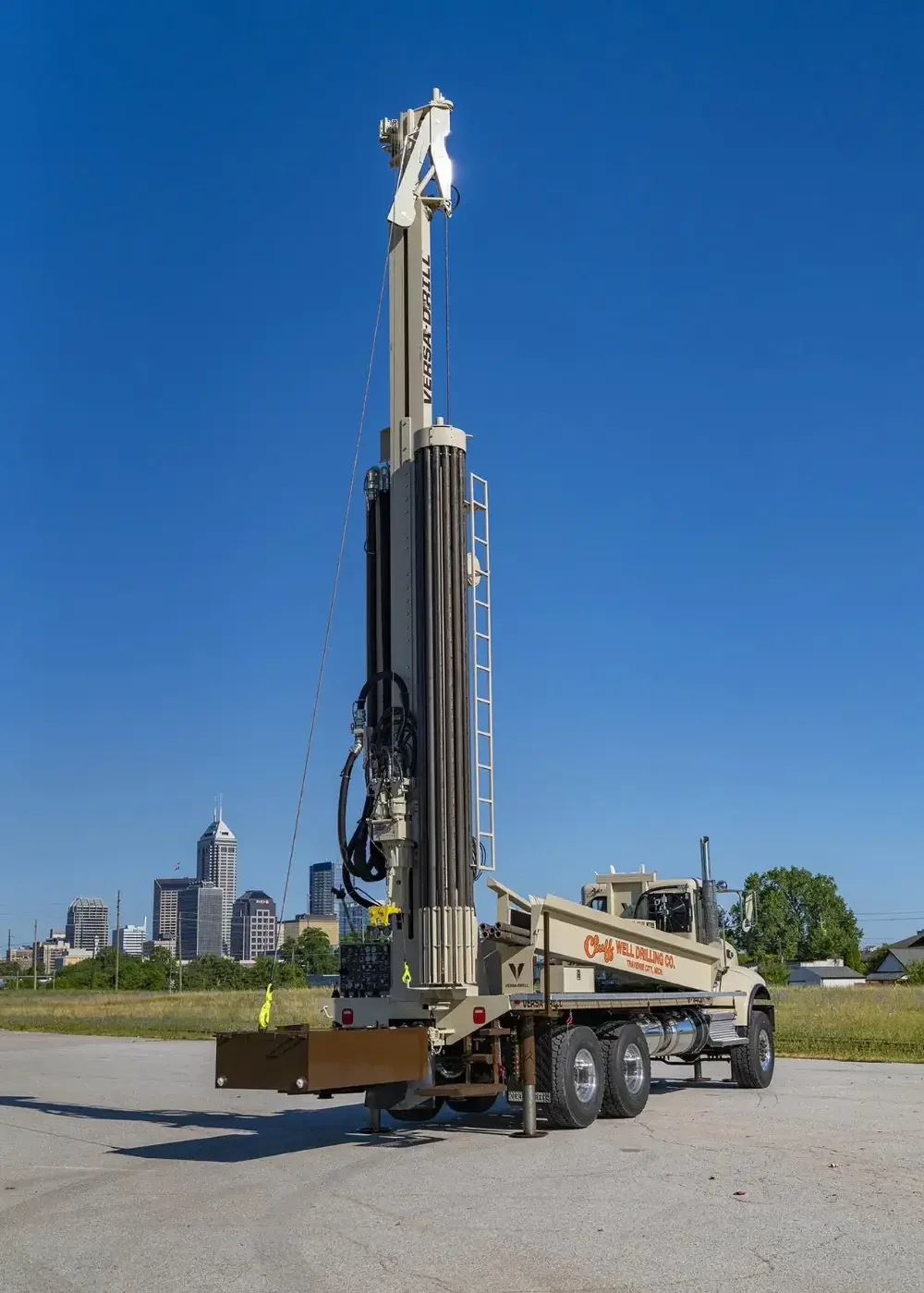

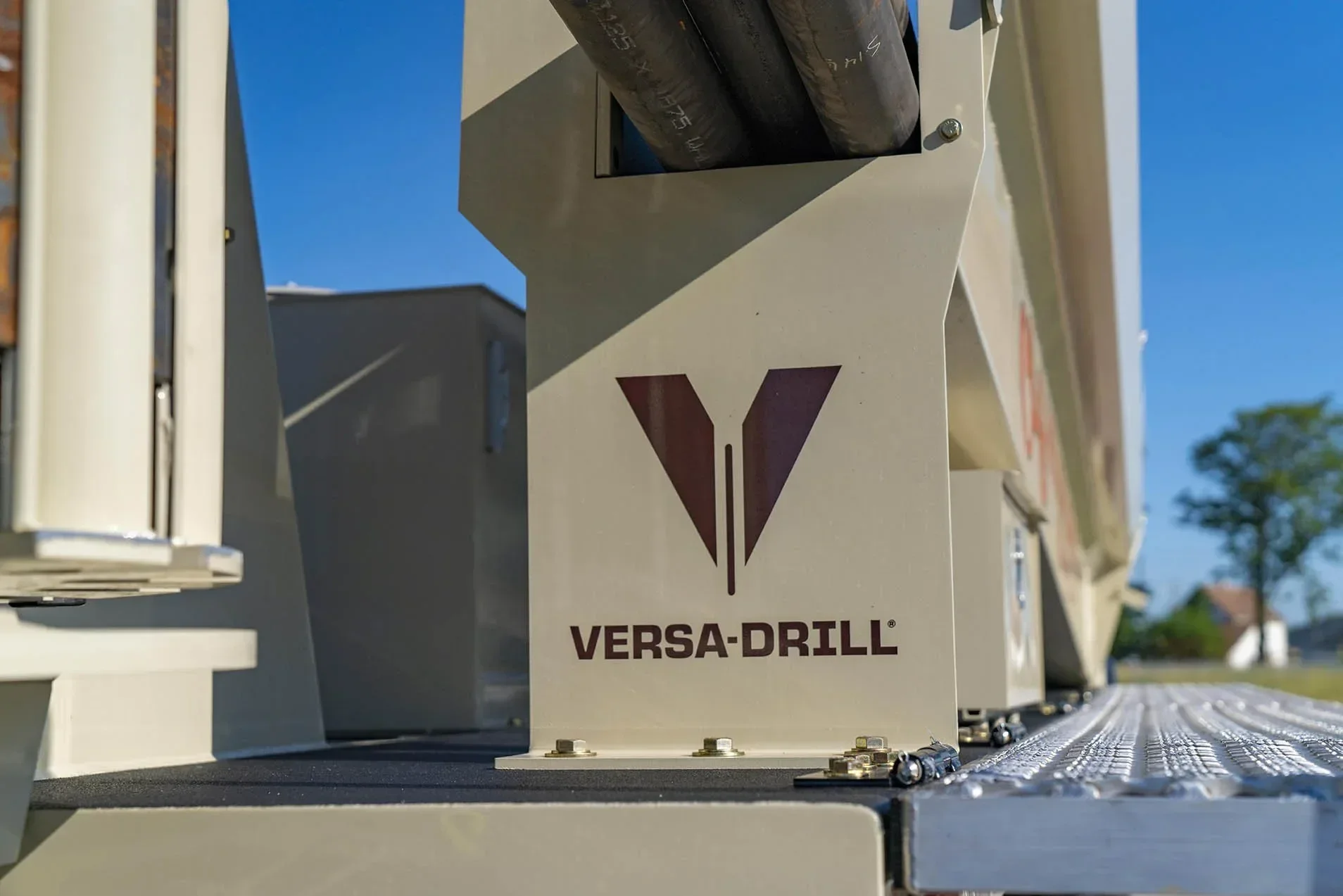

The V140X drilling rig requires minimal maintenance and has long-lasting components.
The V140X drilling rig requires minimal maintenance and has long-lasting components.

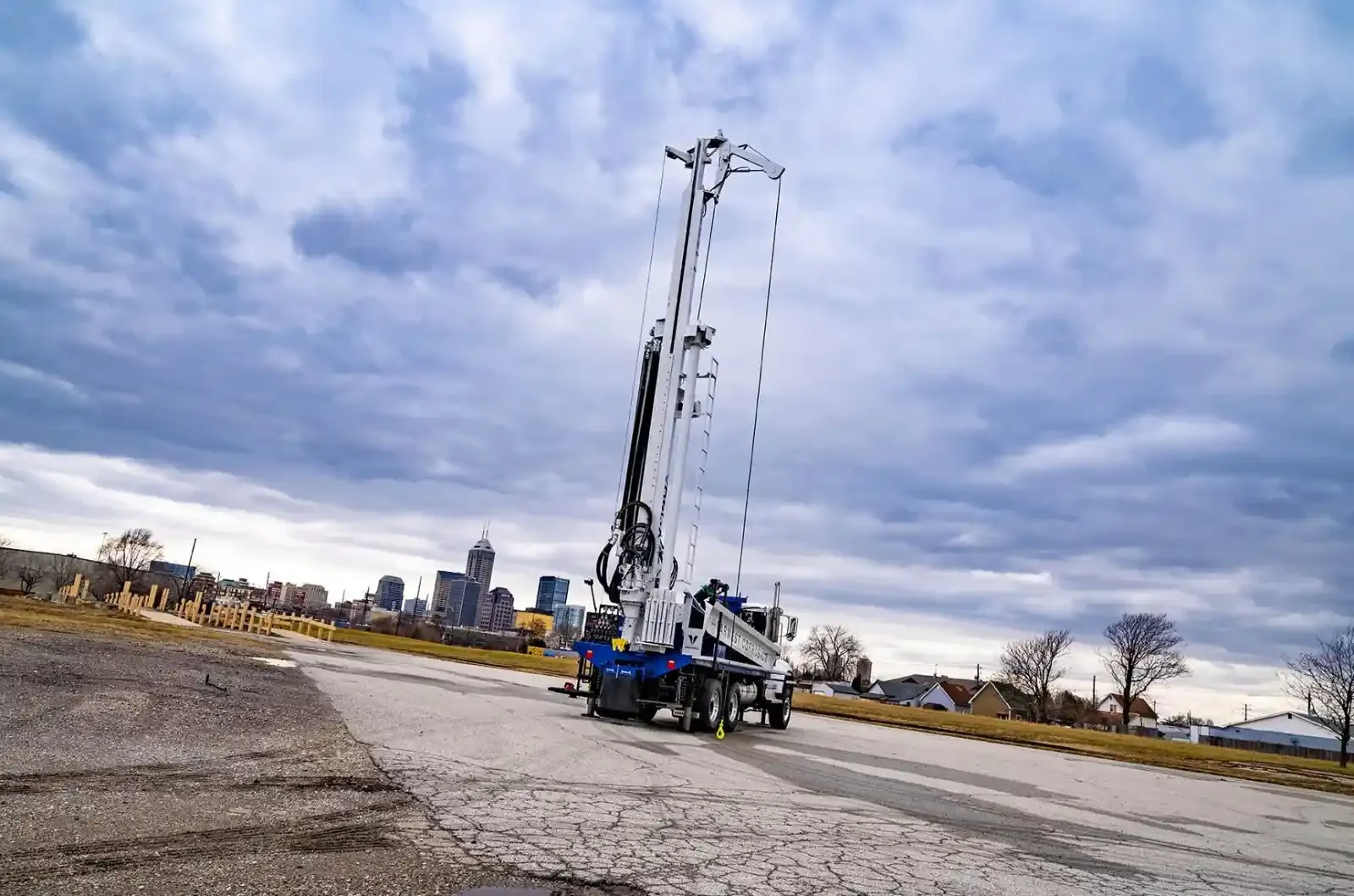

The V140X drilling rig's efficiency and durability contribute to cost savings.

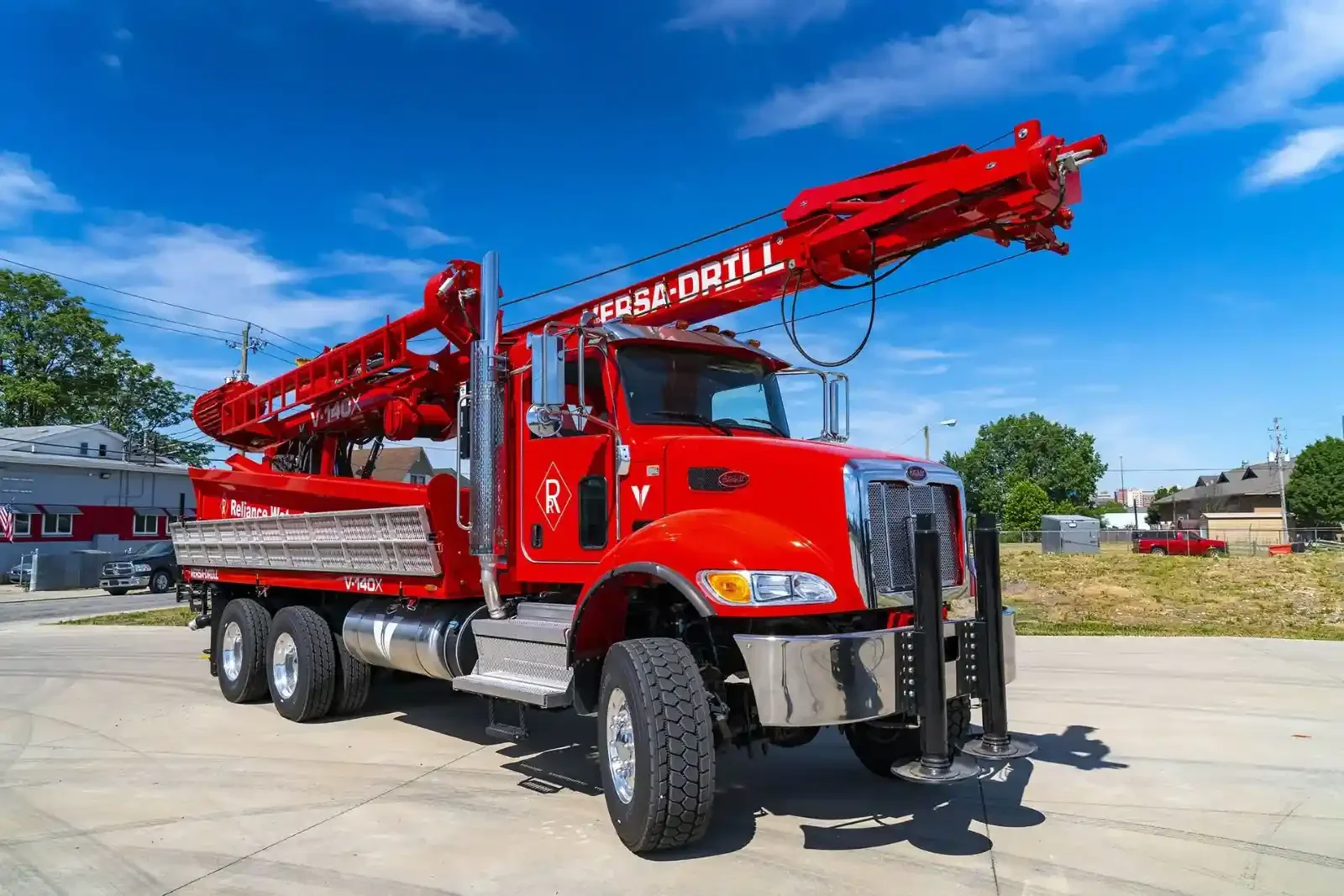

The V140X drilling rig can be used with various drilling tools and accessories.

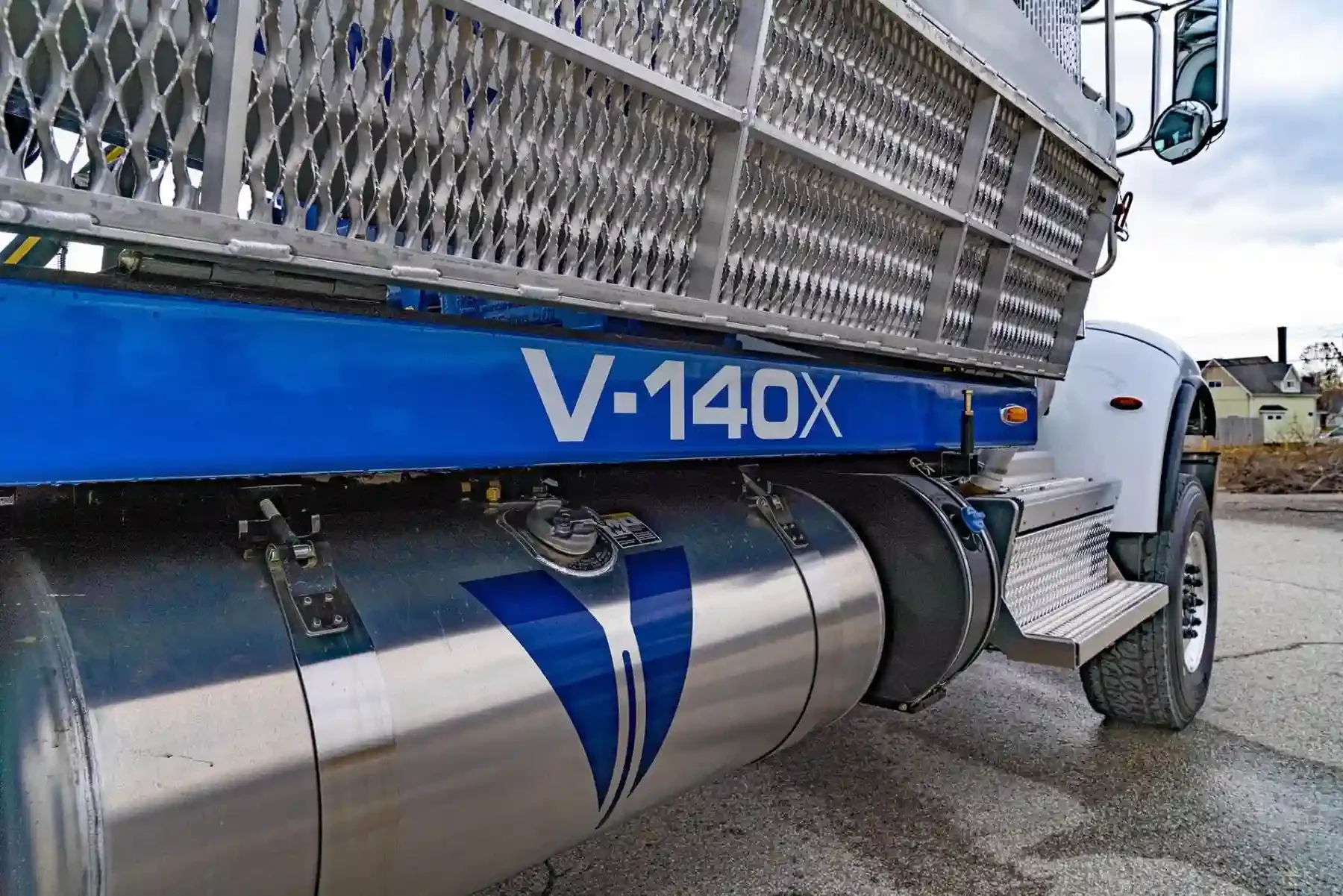

The V140X drilling rig offers remote monitoring capabilities for improved control.

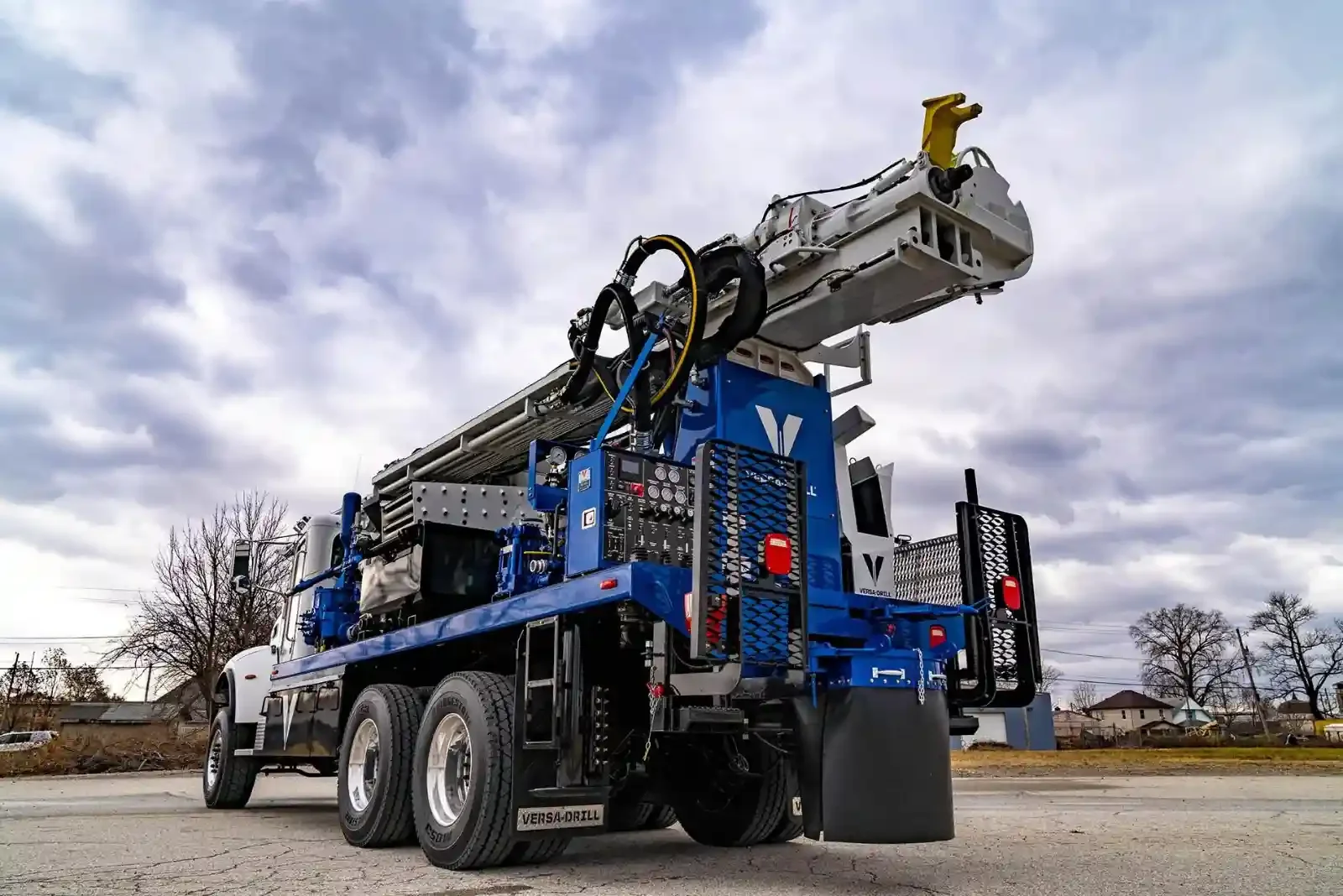

The V140X drilling rig can be customized to meet specific drilling requirements.

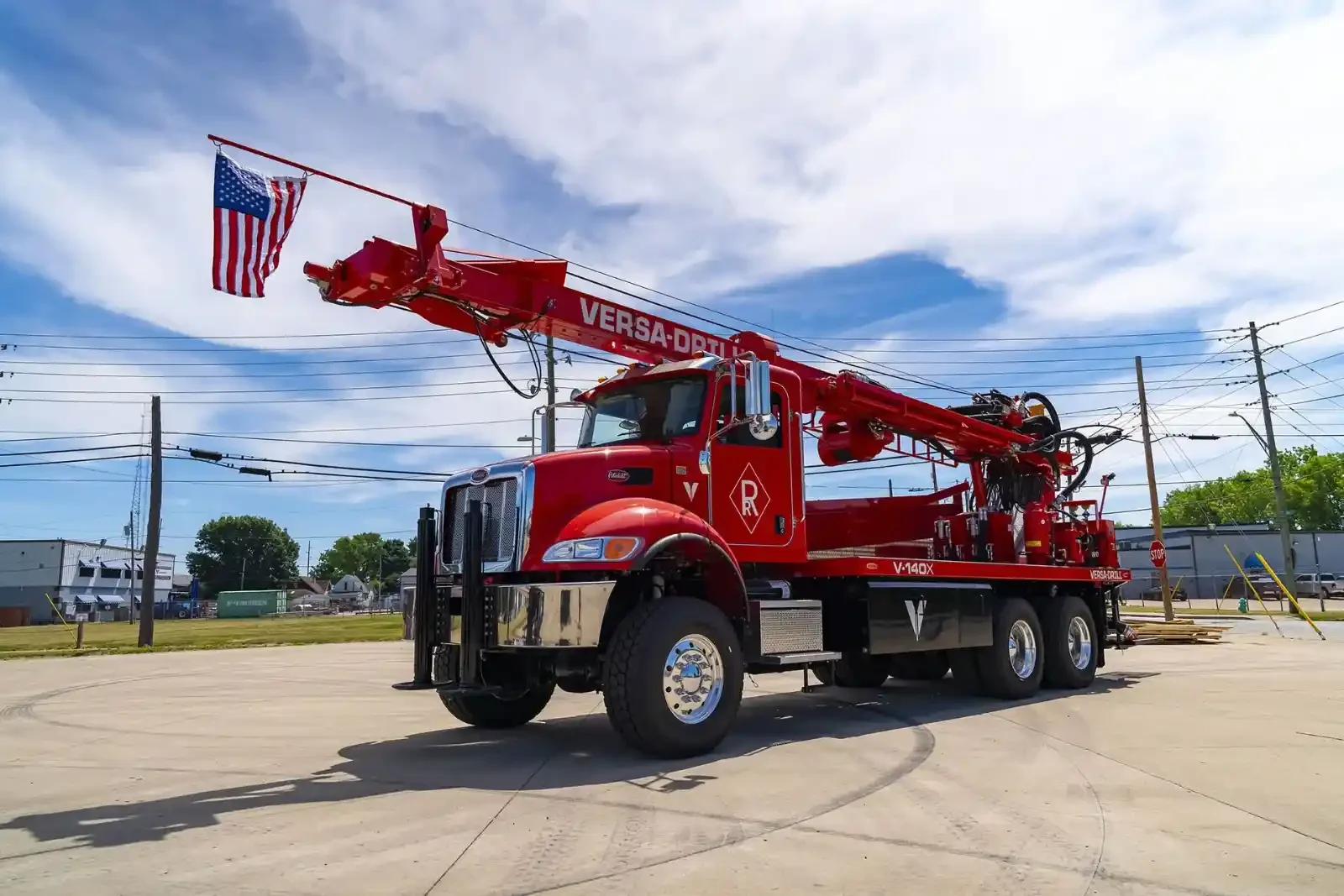

The V140X drilling rig is capable of drilling deep boreholes.

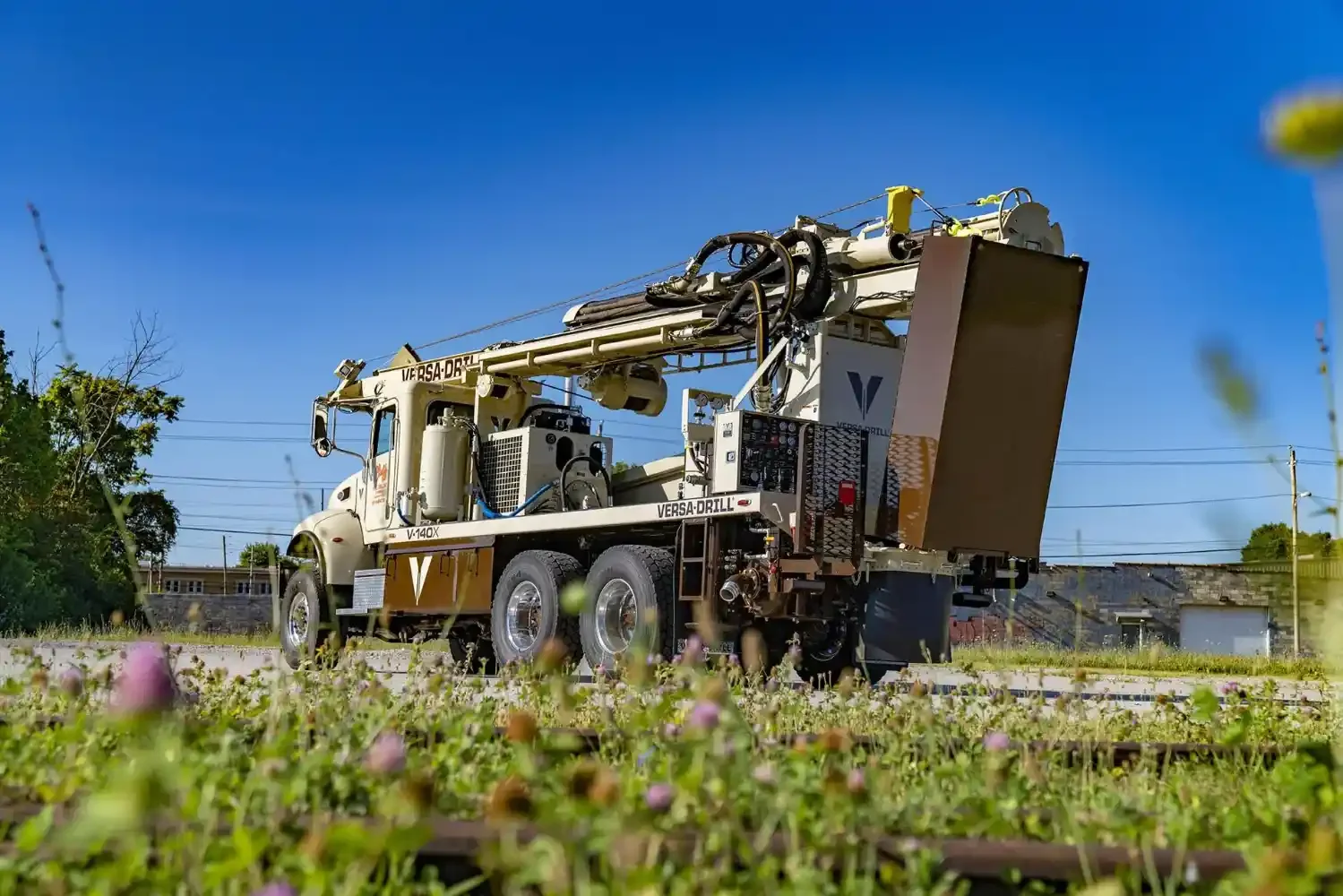

The V140X drilling rig allows for accurate collection of soil and rock samples.

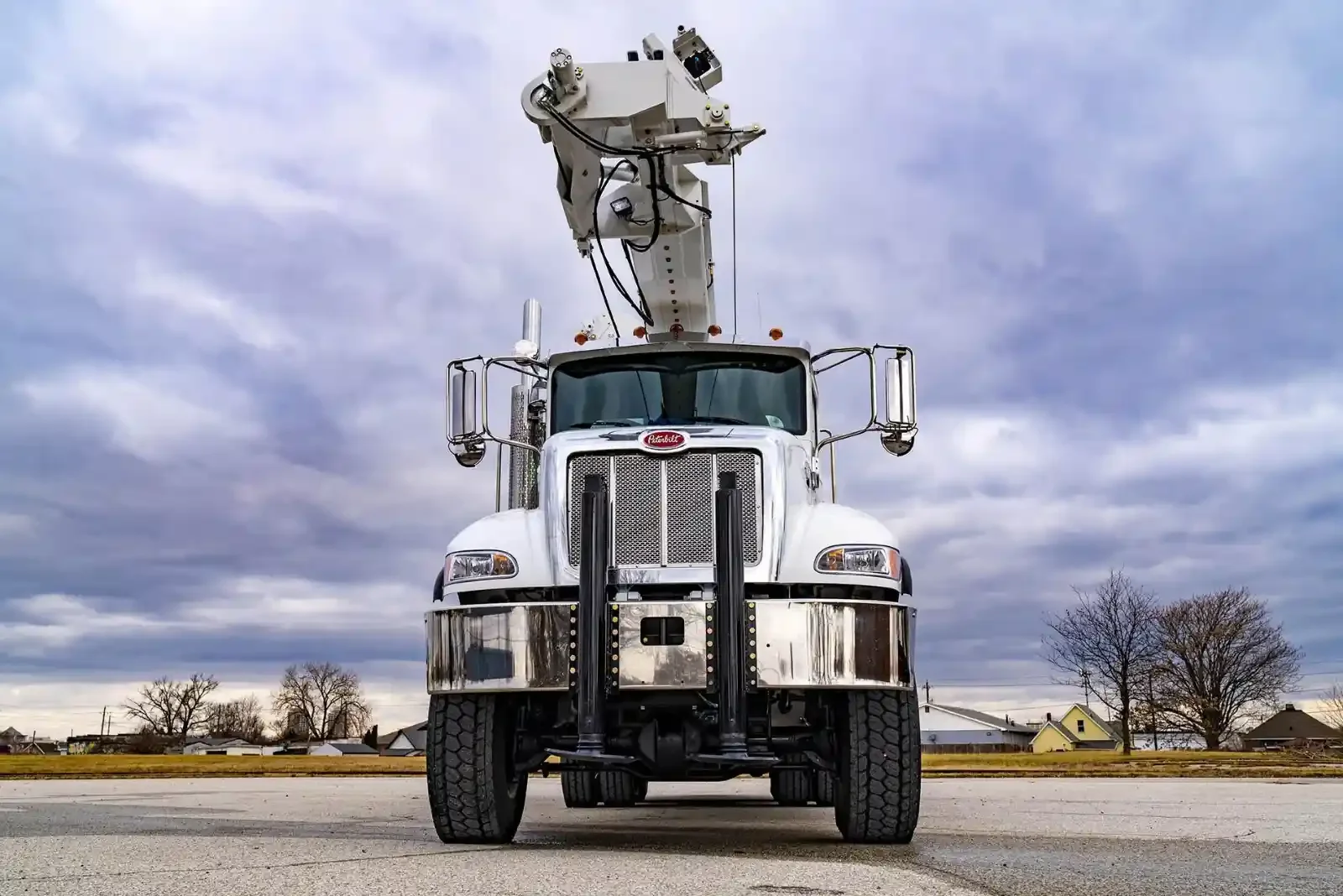

The V140X drilling rig incorporates noise reduction technologies.

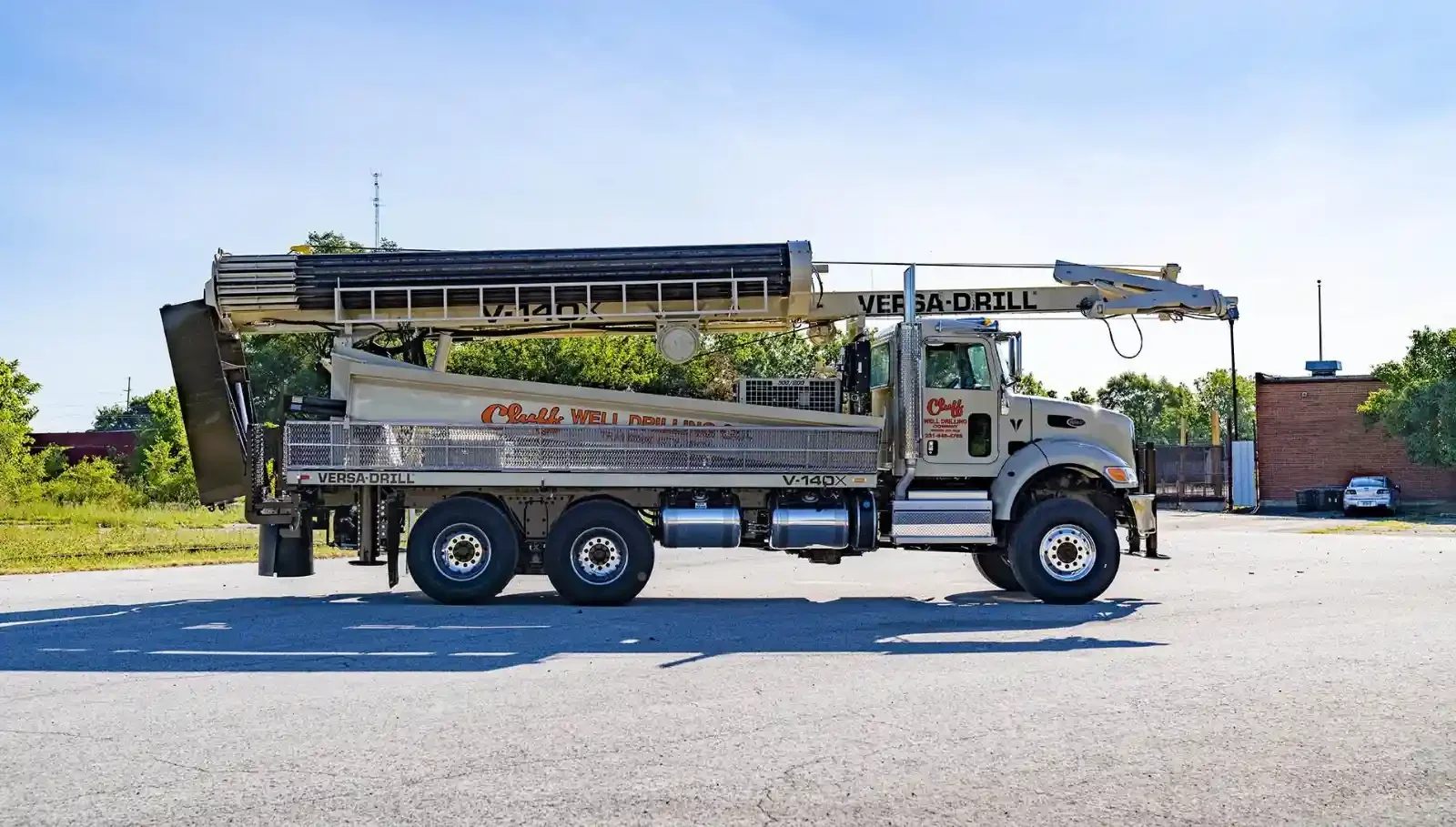

The V140X drilling rig meets environmental regulations and standards.

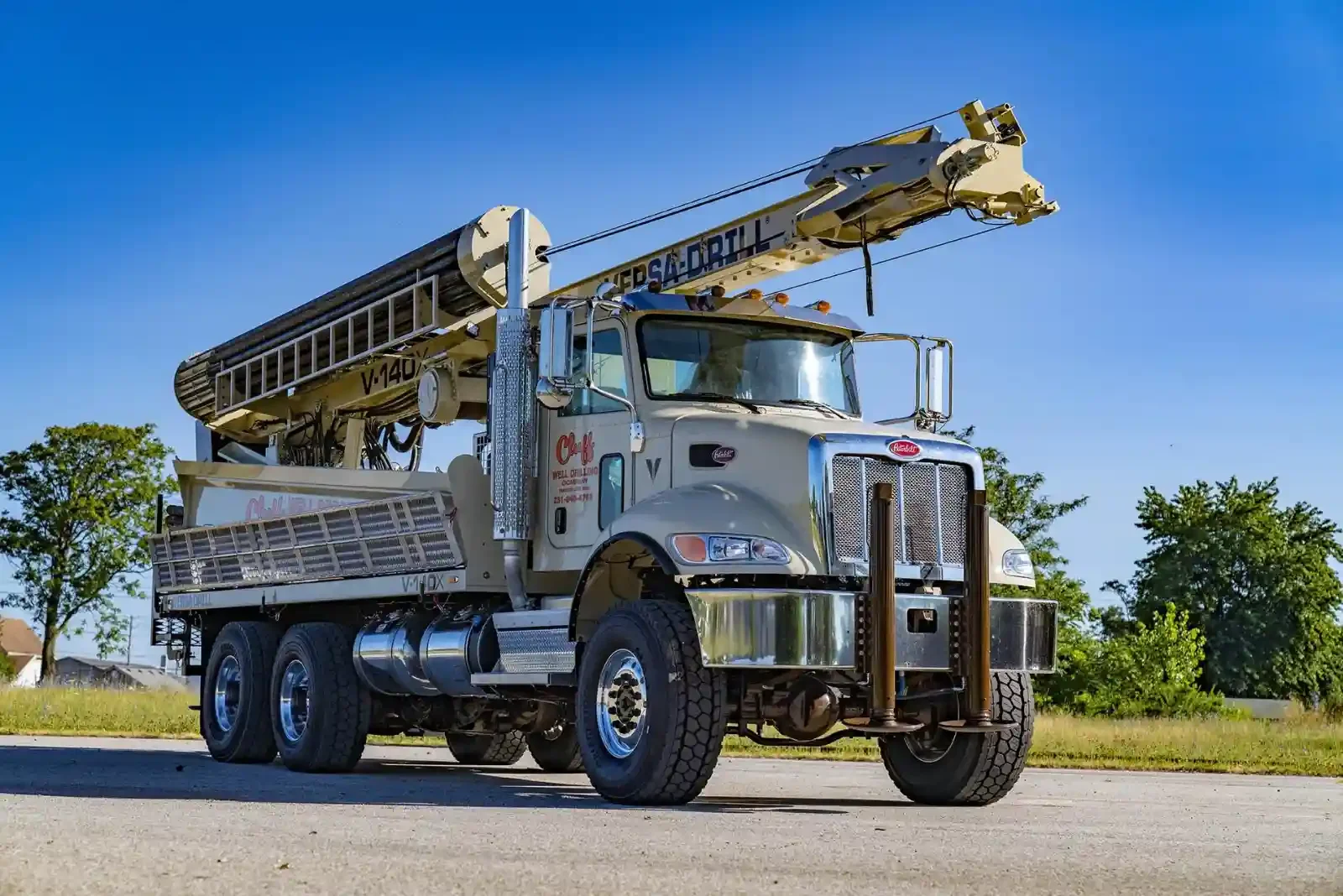

The V140X drilling rig's designed with ergonomic features for operator comfort.

V-140X Drilling Rig spec sheet

Download the V-140X Drilling Rig Guide

Standard Features and Specifications

CARRIER

  • Peterbilt 548 6x6

  • PACCAR PX-9 with 350 HP

  • Allison Transmission automatic

TRANSFER CASE

  • Marmon-Herrington

  • Safe Shift control system

HYDRAULIC SYSTEM

  • Bosch Rexroth

  • 3 auxiliary hydraulic connections

TOP HEAD

  • Variable 3-speed/torque with 2.4” thru-hole

  • 0-125 rpm @ 8,100 lbf·ft

  • 0-175 rpm @ 5,840 lbf·ft

  • 0-250 rpm @ 3,545 lbf·ft

DERRICK & FEED SYSTEM

  • 26’ top head stroke

  • 40,000 lbs pullback

  • 22,100 lbs pulldown

  • 120 FPM up

  • 217 FPM down

CAROUSEL

  • 3”x20’ - 17 rod carousel/18 rod box

  • 3.5”x20’ - 15 rod carousel/15 rod box

  • 4.5”x20’ - 11 rod carousel/9 rod box

MAIN WINCH

  • 12,000 lb.

CENTRALIZER TABLE

  • 13.25” through centralizer bushings

  • 18” fully open

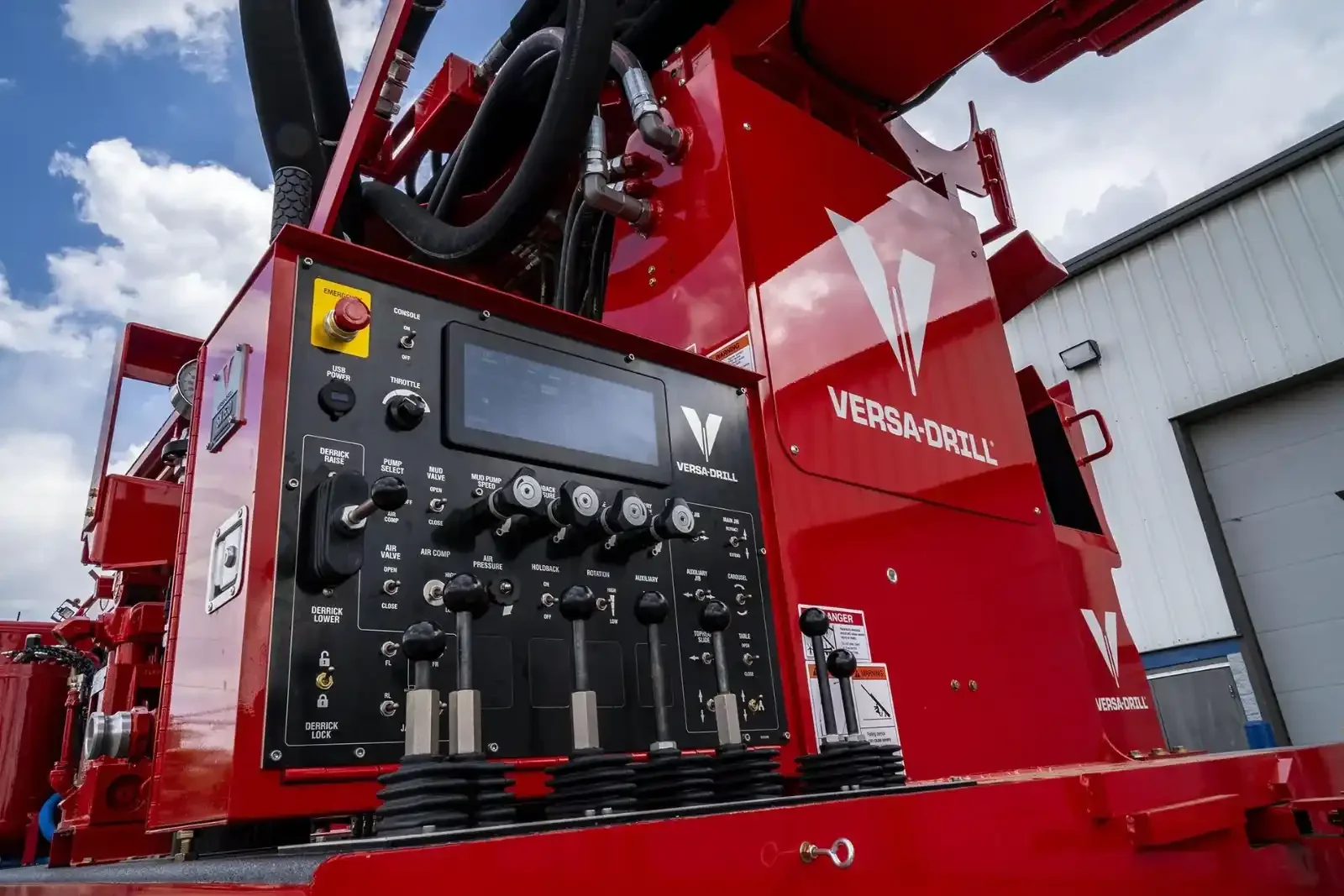

CONTROL PANEL

  • Electric over hydraulic controls

  • Marine grade electric switches

  • Hydraulic joysticks

  • 12” touch screen display

  • Twin aluminum platforms

  • Aluminum console cover

LEVELING JACKS

  • Four 36” stroke independently controlled with precision digital inclinometer leveling

WORK LIGHTS

  • 4 LED night lights

TOOLBOXES

  • 59”x24”x26”

  • 24”x24”x26”

  • 12”x12”x32”

OVERALL DIMENSIONS

  • Length: 35’10”

  • Width: 8’

  • Derrick up height: 40’

  • Derrick down height: 13’2”

Options/Upgrades (at additional cost)

MAIN WINCH

  • 18,000 lb.

AUXILIARY WINCH

  • 4,000 lb.

  • Free fall options available

MUD PUMP

  • 4x3x13 centrifugal 425 gpm/300 psi

  • 5x6 piston 200 gpm/310 psi

  • 5.5x8 piston 317 gpm/338 psi

  • 6x8 piston

AIR COMPRESSOR

  • 500 cfm/200 psi Vanair

  • 600 cfm/250 psi Vanair

LINE OILER

  • 7-gallon venturi

WATER INJECTION

  • 25 gpm FMC

  • Foam pulse pump

ADDITIONAL OPTIONS

  • In-deck grouter (multiple options)

  • Hose reel (multiple options)

  • Aluminum catwalk

  • Remote pendant for winches & jib boom

  • Versa-Rod spinner

  • 1-2-3 slot hammer holder

  • Stabilizer bushings

  • 300-gallon mud pit assembly

  • The MUD MANAGER solids control system

  • Water transfer pump (multiple options)

  • Geo feed speed-up

Versa-Drill V-140X

Versa-Drill V-140X

Versa-Drill V-140TRX

Versa-Drill V-140TRX

Versa-Drill MARK50

Versa-Drill MARK50

Versa-Drill MARK70

Versa-Drill MARK70

Versa-Drill Versa-Sonic

Versa-Drill Versa-Sonic

Versa-Drill V-12

Versa-Drill V-12

Versa-Drill V-125X

Versa-Drill V-125X

Drilling Rig Model Comparison

Specifications & Applications Overview

Model Image Carrier / Make Top Head Pullback Pulldown Carousel Control Panel Dimensions Applications
V-12 V-12 Ram 5500 4x42.5" thru-hole12,000 lbs7,000 lbs3"x20' - 7 rod7" display, CANBUS28'6" x 7'6", Up: 30', Down: 9'4"Air rotary, Water well, Geothermal, Exploration
V-125X V-125X Peterbilt 584 6x62.4" thru-hole25,000 lbs22,000 lbs3"x20' - 11 rod / 18 rod box12" touchscreen35'10" x 8', Up: 40', Down: 13'2"Air rotary, Geothermal, Exploration
V-140X V-140X Peterbilt 548 6x62.4" thru-hole40,000 lbs22,100 lbs3"x20' - 17 rod12" touchscreen35'10" x 8', Up: 40', Down: 13'2"Air rotary, Water well, Cathodic, Exploration
V-140TRX V-140TRX Cummins 9L 360HP2.4" thru-hole40,000 lbs22,100 lbsSame as V-140X12" touchscreenN/AAir rotary, Water well, Geothermal, Exploration
MARK50 MARK50 Peterbilt 567 6x42.4" thru-hole50,000 lbs28,000 lbs3"x20' - 15 rod12" touchscreen40' x 8.5', Up: 44', Down: 13'4"Air rotary, Water well, Geothermal, Exploration
MARK70 MARK70 Peterbilt 567 6x42.4" thru-hole70,000 lbs28,000 lbs4.5"x20' - 25 rod auto12" touchscreen40' x 8.5', Up: 44', Down: 13'4"Air rotary, Water well, Geothermal, Exploration
VERSA-SONIC VERSA-SONIC Peterbilt 548 6x4Sonicor 50k25,000 lbs22,100 lbsNo carousel4" touchscreen35'10" x 8', Up: 40', Down: 13'2"Air rotary, Water well, Geothermal, Exploration

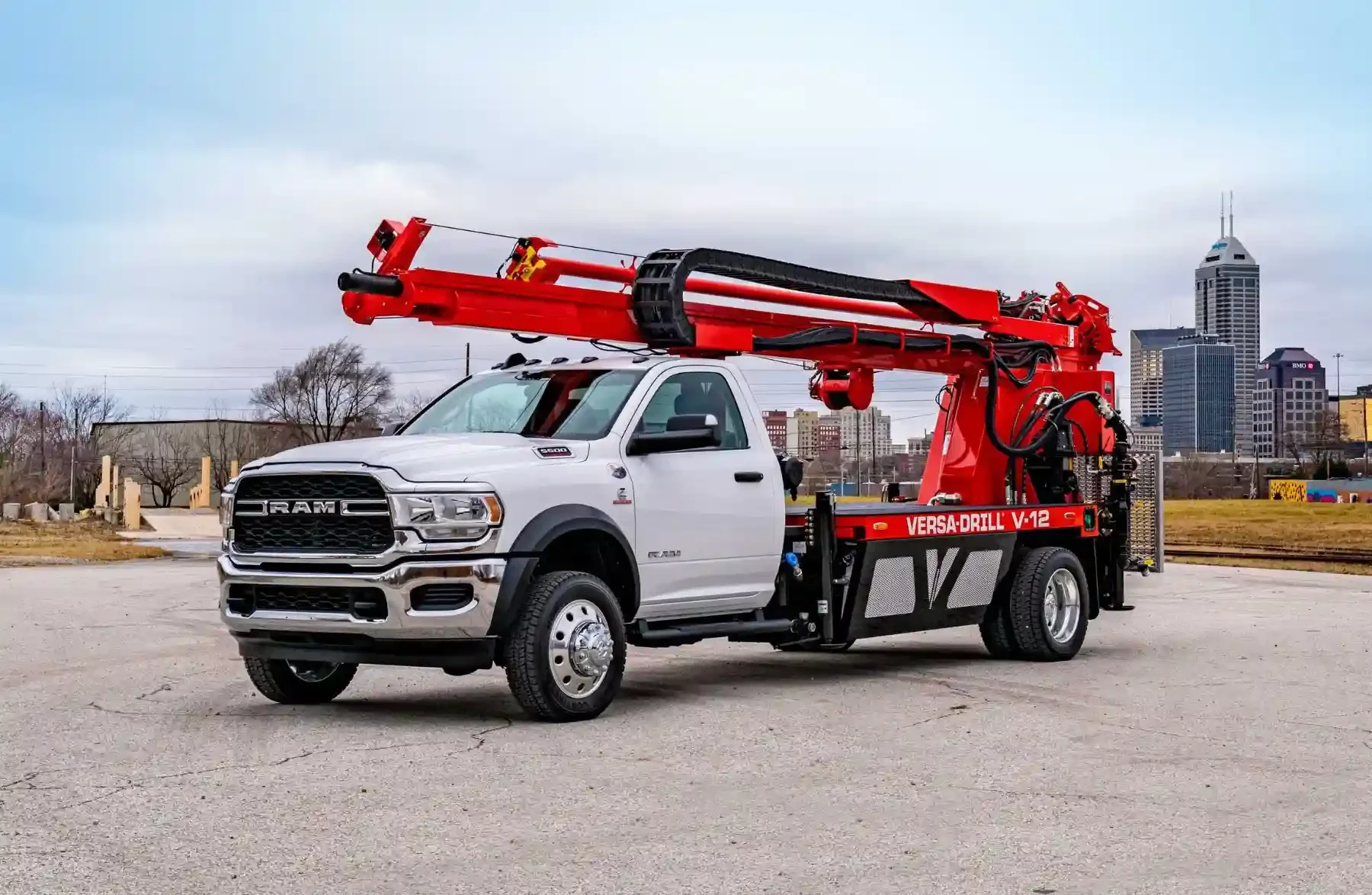

V-12
V-12 drilling rig
Carrier/MakeRam 5500 4x4
Top Head2.5" thru-hole
Pullback12,000 lbs
Pulldown7,000 lbs
Carousel3"x20' - 7 rod
Control Panel7" display, CANBUS
Dimensions28'6" x 7'6", Up: 30', Down: 9'4"
ApplicationsAir rotary, Water well, Geothermal, Exploration

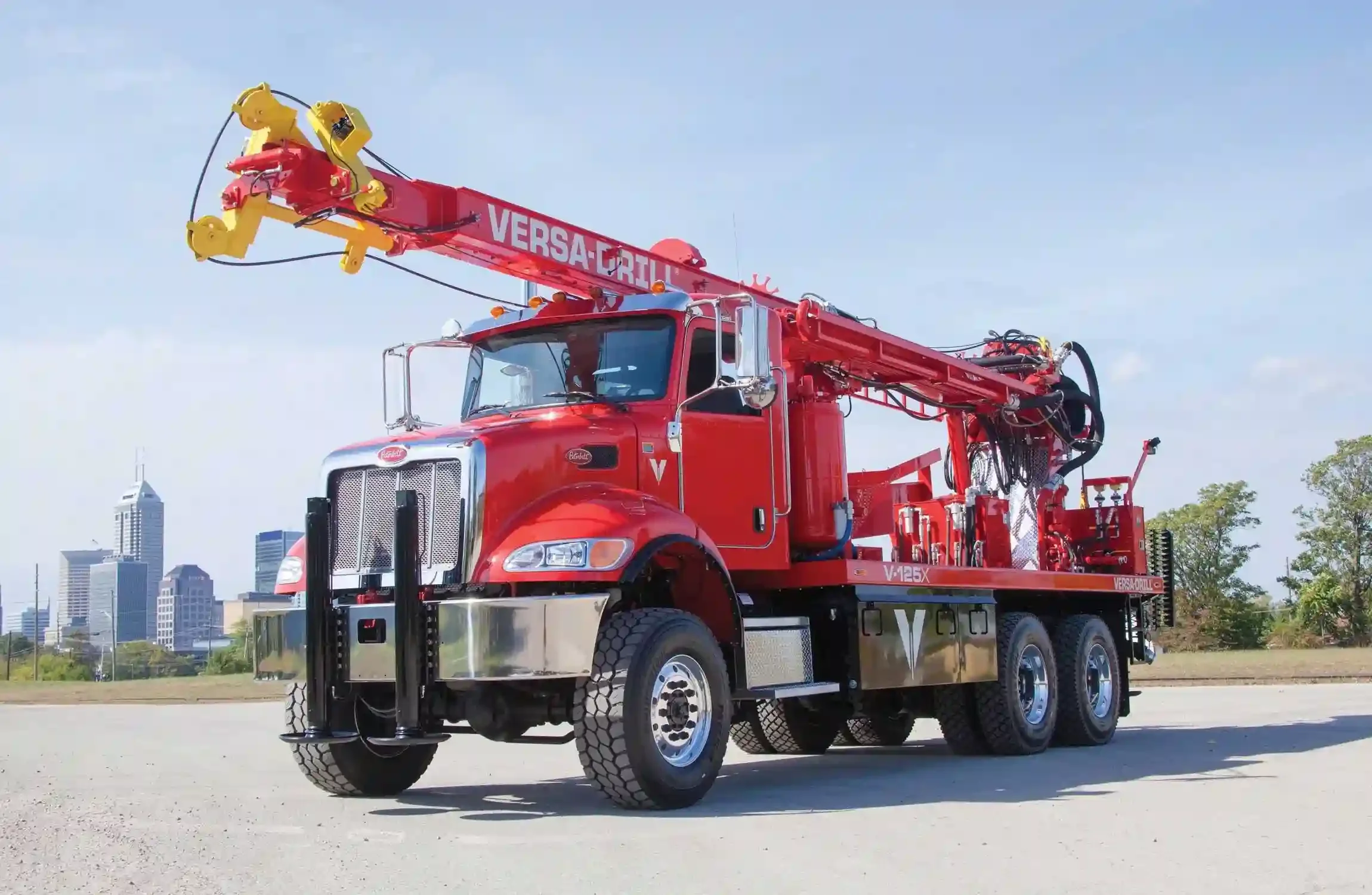

V-125X
V-125X drilling rig
Carrier/MakePeterbilt 584 6x6
Top Head2.4" thru-hole
Pullback25,000 lbs
Pulldown22,000 lbs
Carousel3"x20' - 11 rod / 18 rod box
Control Panel12" touchscreen
Dimensions35'10" x 8', Up: 40', Down: 13'2"
ApplicationsAir rotary, Geothermal, Exploration

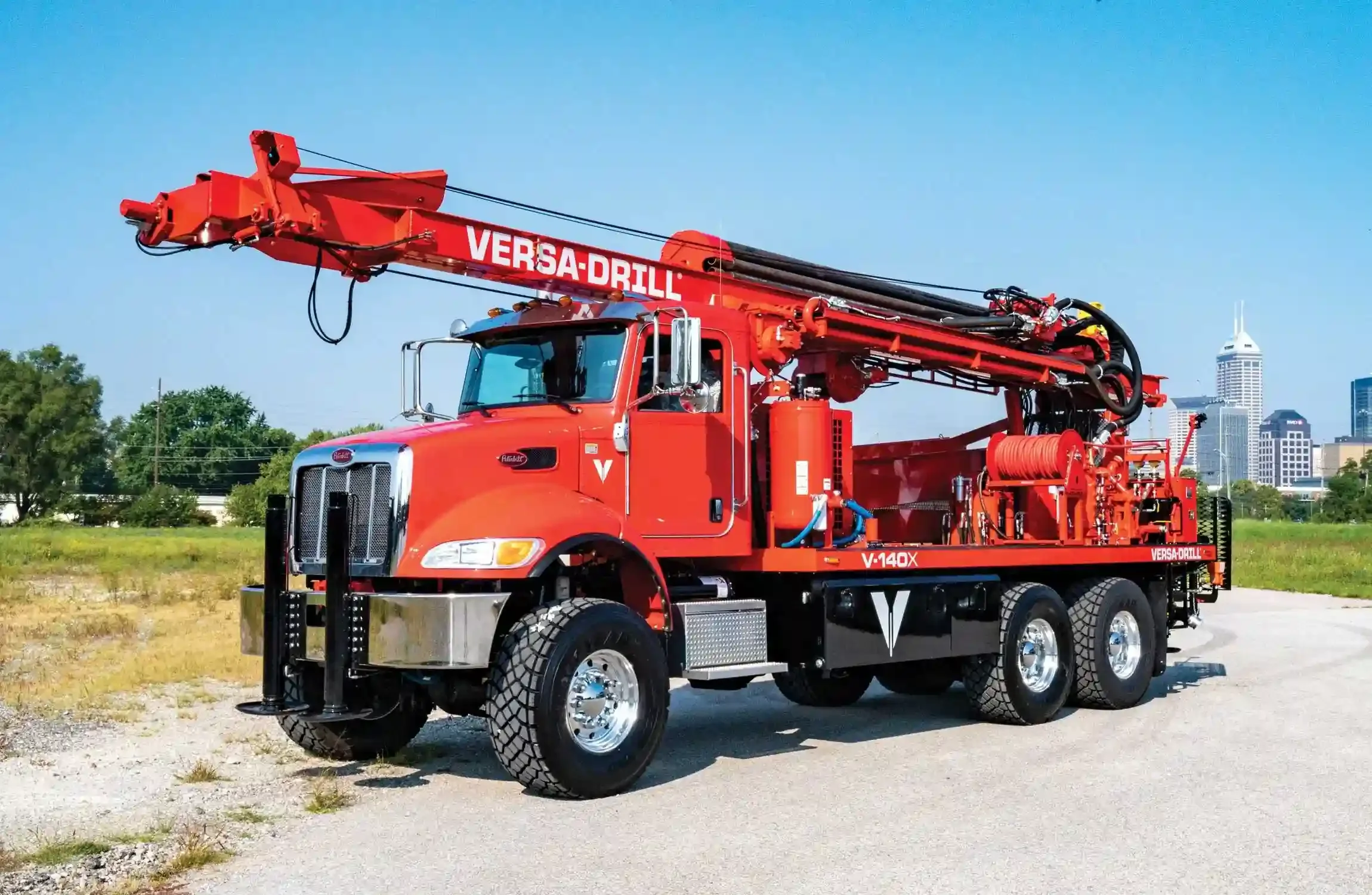

V-140X
V-140X drilling rig
Carrier/MakePeterbilt 548 6x6
Top Head2.4" thru-hole
Pullback40,000 lbs
Pulldown22,100 lbs
Carousel3"x20' - 17 rod
Control Panel12" touchscreen
Dimensions35'10" x 8', Up: 40', Down: 13'2"
ApplicationsAir rotary, Water well, Cathodic, Exploration

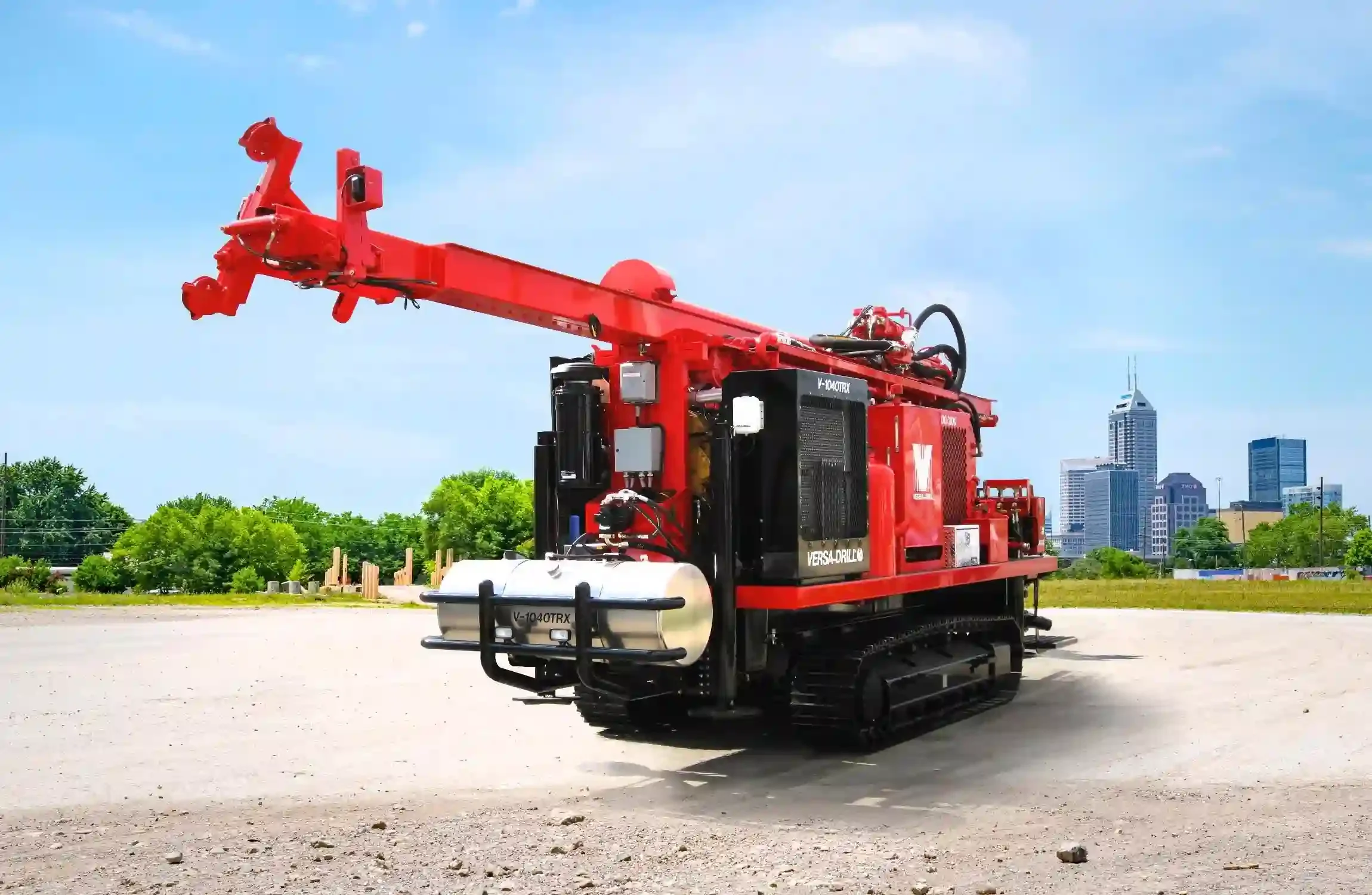

V-140TRX
V-140TRX drilling rig
Carrier/MakeCummins 9L 360HP
Top Head2.4" thru-hole
Pullback40,000 lbs
Pulldown22,100 lbs
CarouselSame as V-140X
Control Panel12" touchscreen
DimensionsN/A
ApplicationsAir rotary, Water well, Geothermal, Exploration
MARK50
MARK50 drilling rig
Carrier/MakePeterbilt 567 6x4
Top Head2.4" thru-hole
Pullback50,000 lbs
Pulldown28,000 lbs
Carousel3"x20' - 15 rod
Control Panel12" touchscreen
Dimensions40' x 8.5', Up: 44', Down: 13'4"
ApplicationsAir rotary, Water well, Geothermal, Exploration

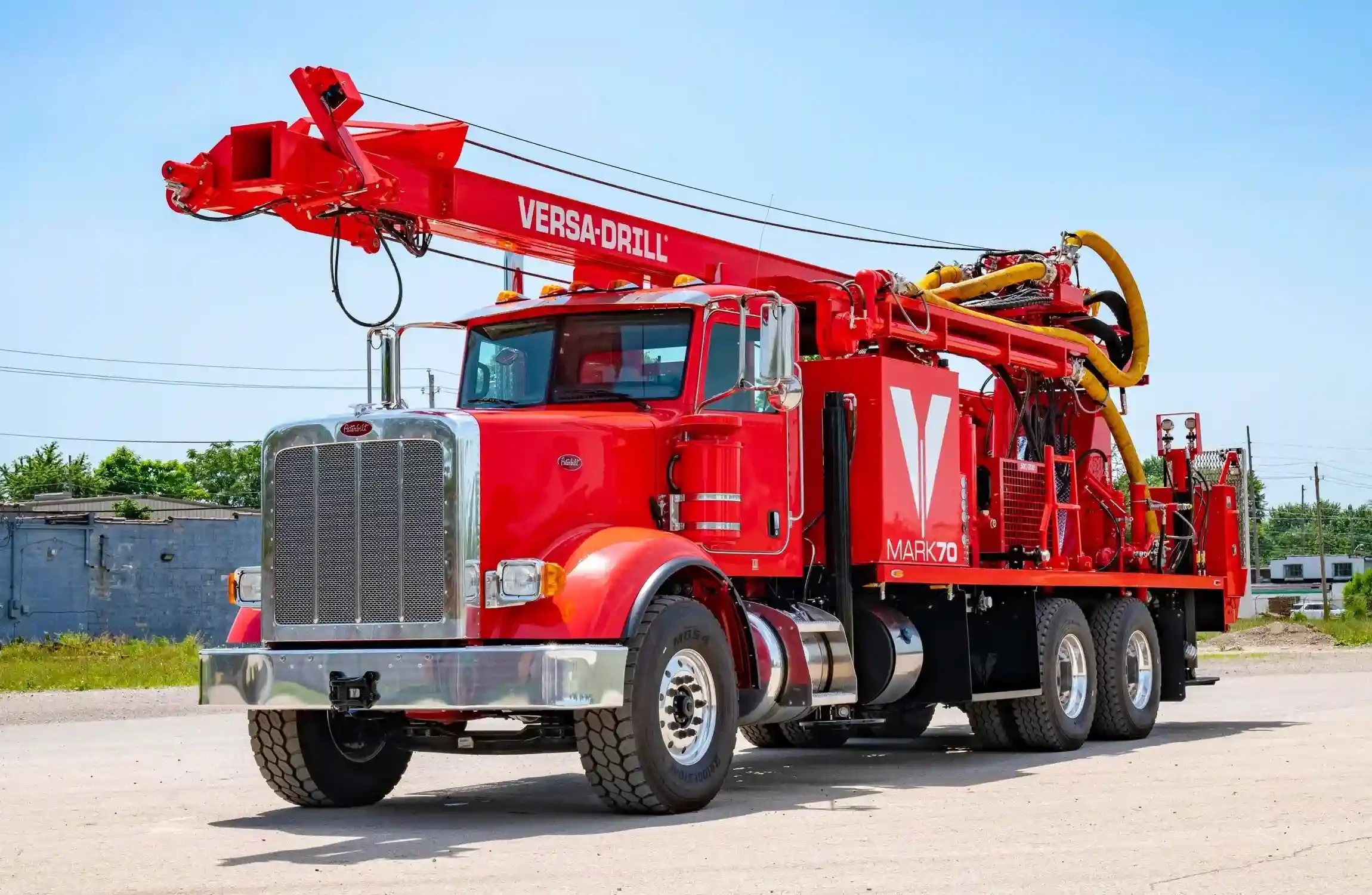

MARK70
MARK70 drilling rig
Carrier/MakePeterbilt 567 6x4
Top Head2.4" thru-hole
Pullback70,000 lbs
Pulldown28,000 lbs
Carousel4.5"x20' - 25 rod auto
Control Panel12" touchscreen
Dimensions40' x 8.5', Up: 44', Down: 13'4"
ApplicationsAir rotary, Water well, Geothermal, Exploration

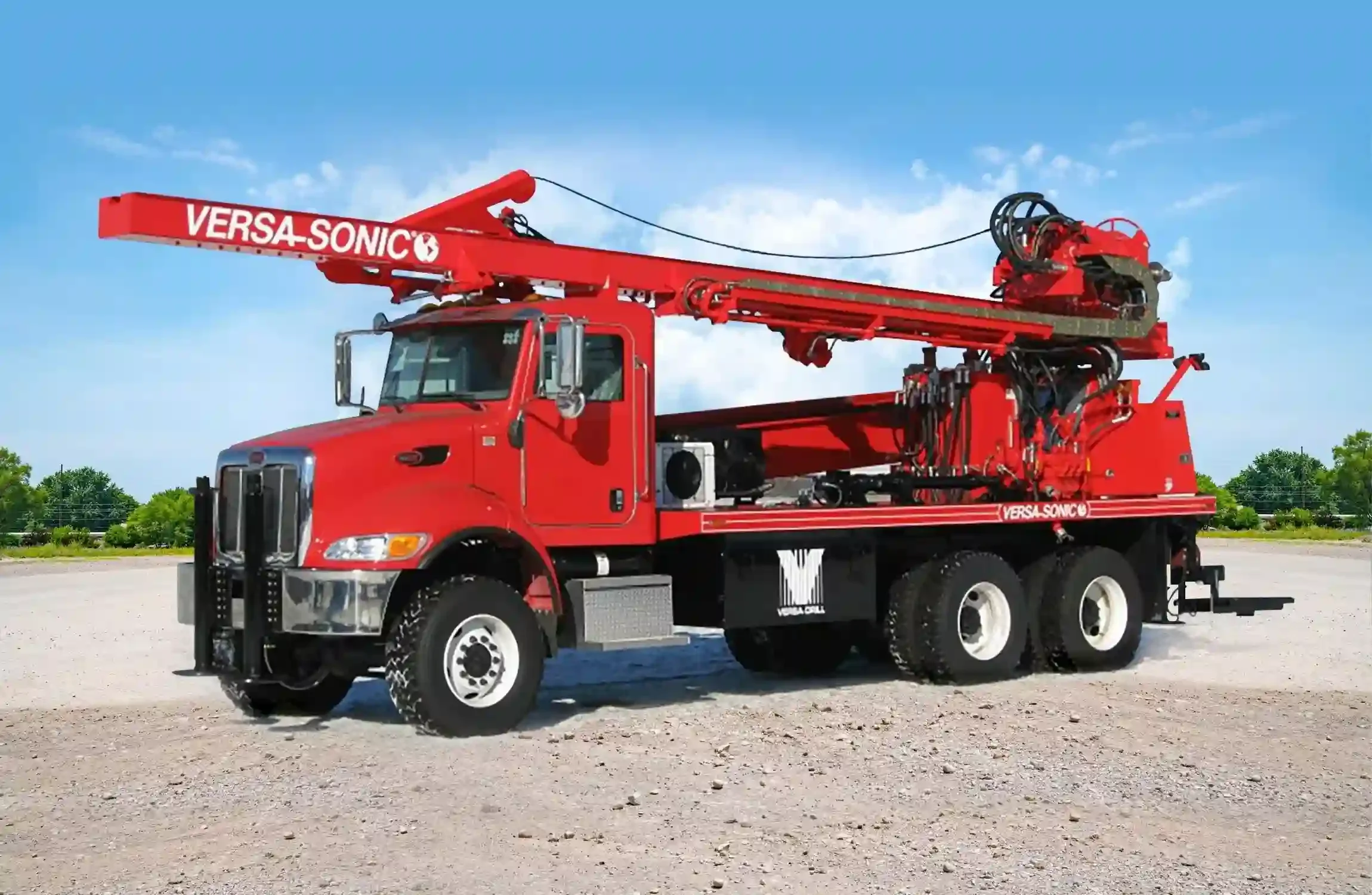

VERSA-SONIC
VERSA-SONIC drilling rig
Carrier/MakePeterbilt 548 6x4
Top HeadSonicor 50k
Pullback25,000 lbs
Pulldown22,100 lbs
CarouselNo carousel
Control Panel4" touchscreen
Dimensions35'10" x 8', Up: 40', Down: 13'2"
ApplicationsAir rotary, Water well, Geothermal, Exploration
