water well Drilling Rigs
Easily Maneuver With Our Water Well Drilling Rigs
We design reliable, low-maintenance and powerful drilling rigs that consistently outperform the competition. Our water well drilling rigs easily maneuver in and out of job sites with these compact, all-wheel-drive rigs.
All Versa-Drill water well drill rigs are equipped with our patented direct-drive hydraulic feed system. That means no cables or chains to adjust. It means no expensive maintenance. It means better safety for you and your team.
-
Check out our Versa-Drill water well drilling rigs for sale that are available in multiple configurations.
All-wheel-drive chassis with automatic transmissions
Up to 100,000 lbs pullback
Multiple centrifugal and mud pump options
Up to 1070 cfm/350 psi air compressors
Optional hands-free automated rod handling
WATER WELL DRILLING RIGS FOR SALE

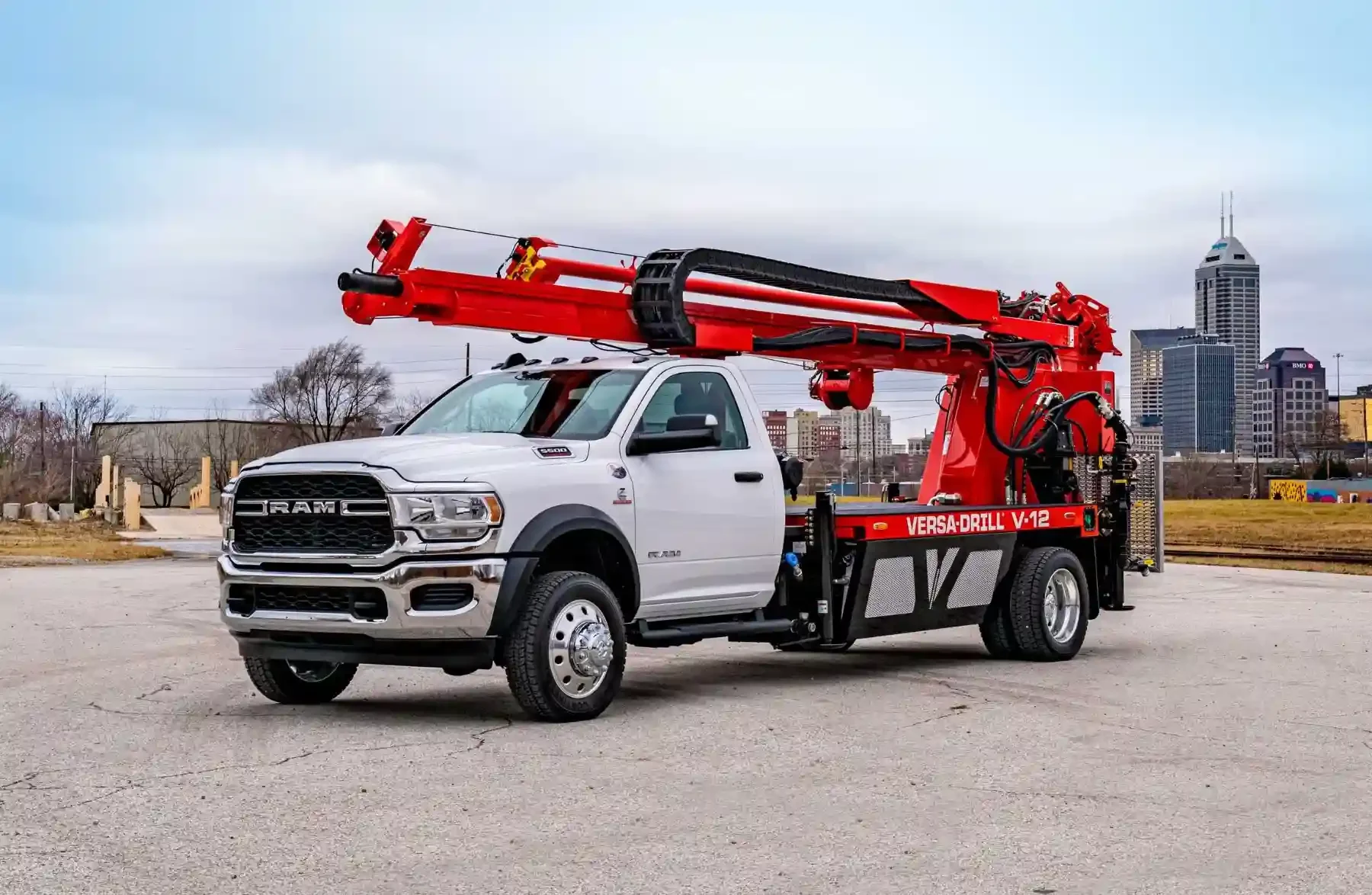

V-12 Water Well Drilling rig
Set atop a RAM 5500 Tradesman, the V-12 water well drilling rig is the most compact rig in the Versa-Drill fleet. No commercial driver’s license required
Water Well, Geothermal, Exploration, Cathodic Protection
12,000 Lbs Pullback
7,000 Lbs Pulldown

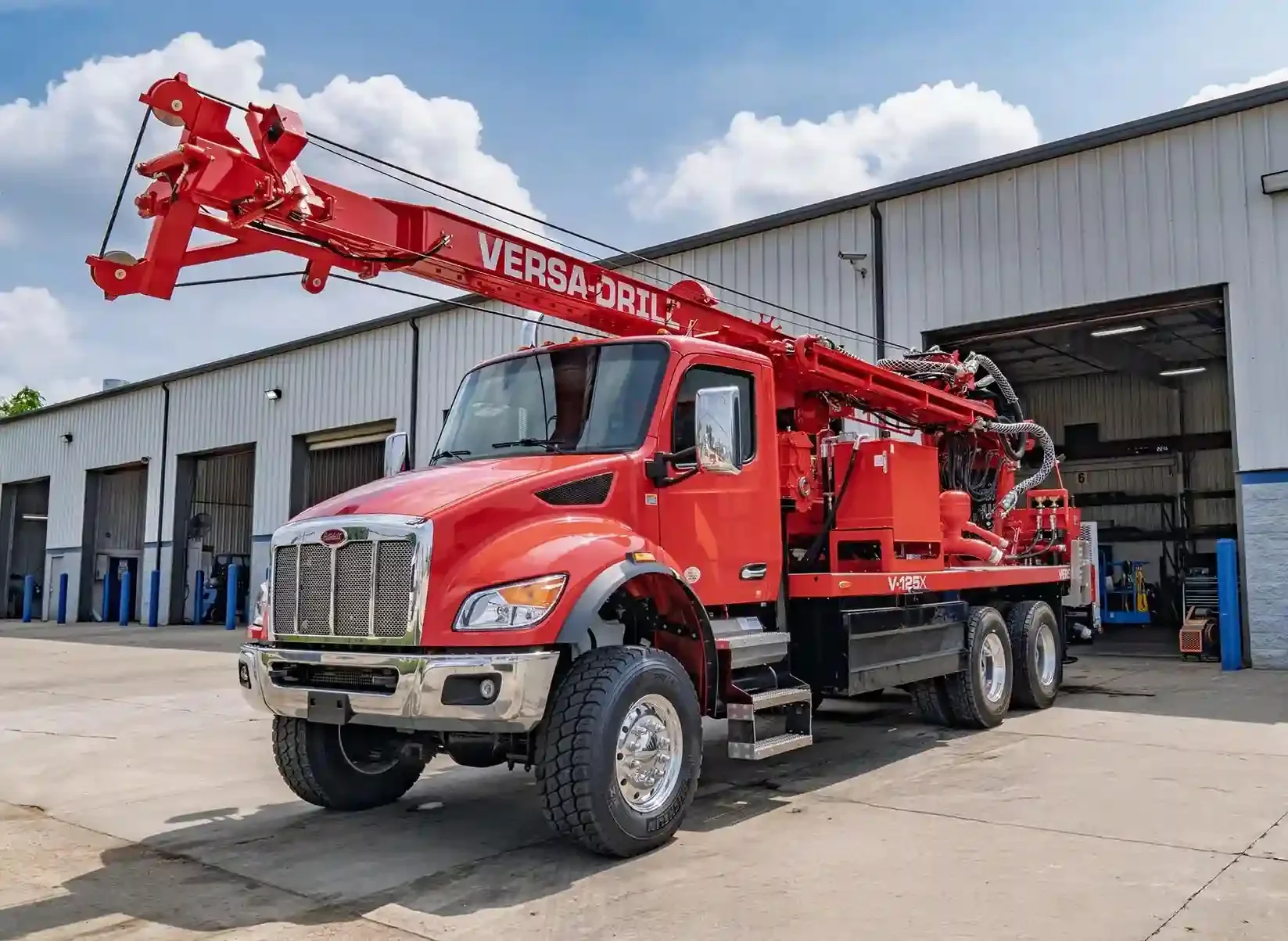

V-125X Water Well Drilling Rig
Lightweight yet powerful, the Versa-Drill V-125X showcases unmatched performance that makes it one of our top sellers.
Water Well, Geothermal, Exploration, Cathodic Protection
25,000 Lbs Pullback
22,000 Lbs Pulldown
V-140X Water Well Drilling Rig
Unrivaled in performance, the Versa-Drill V-140X has the lightweight capability of our V-125X with even more amazing power.
Water Well, Geothermal, Exploration, Cathodic Protection
40,000 Lbs Pullback
22,000 Lbs Pulldown
V-140TRX Water Well Drilling Rig
The V-140X’s unique rig is mounted on tracks, increasing its ability to endure the worst off-road conditions through mud and terrain.
Air Rotary, Water Well, Geothermal, Exploration, Cathodic Protection
40,000 Lbs Pullback
22,000 Lbs Pulldown
MARK50 Water well Drilling Rig
The Versa-Drill MARK70 provides astonishing power alongside our proven durability and ease.
Air Rotary, Water Well, Geothermal, Exploration, Cathodic Protection
50,000 Lbs Pullback
28,000 Lbs Pulldown

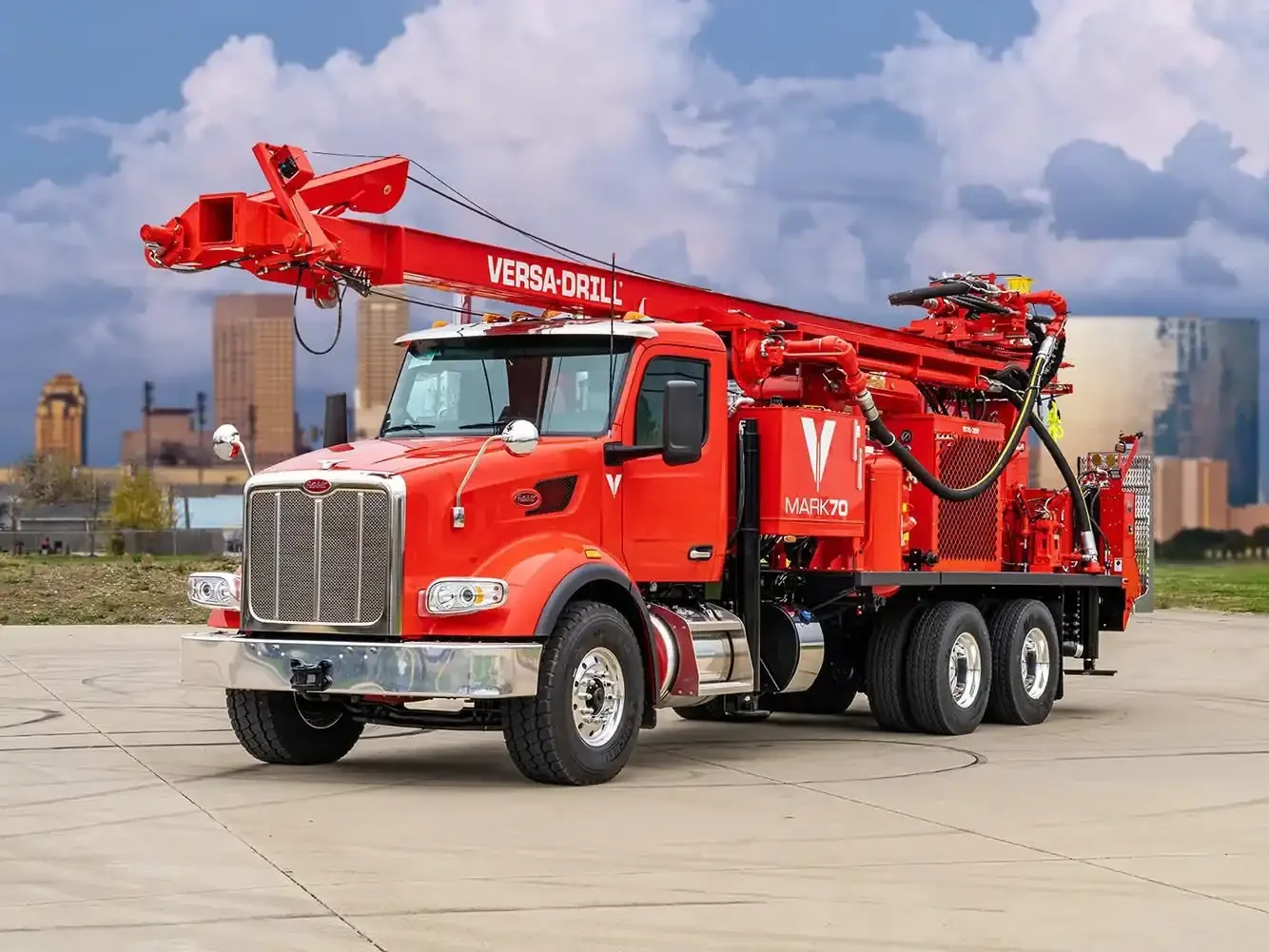

MARK70 Water Well Drilling RIg
The Versa-Drill MARK70 provides astonishing power alongside our proven durability and ease.
Air Rotary, Water Well, Geothermal, Exploration, Cathodic Protection
70,000 Lbs Pullback
28,000 Lbs Pulldown

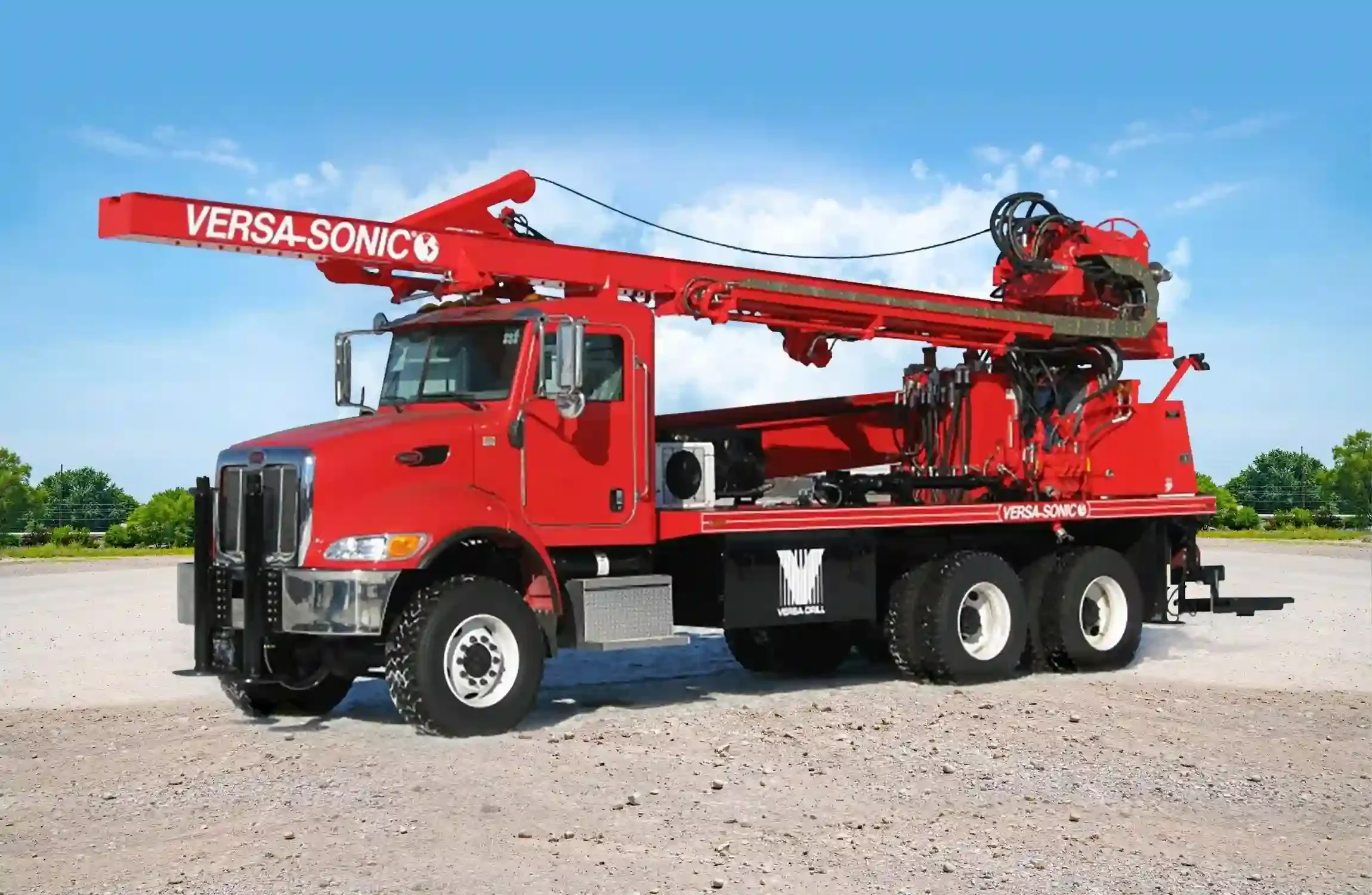

VersA-sonic Water Well Drilling Rig
The Versa-Sonic builds on our V-140X drill to allow for innovative soil penetration through sonic drilling.
Water Well, Geothermal, Exploration, Cathodic Protection
20,000 Lbs Pullback
11,000 Lbs Pulldown
Water Well Drilling Rig Model Comparison
Specifications & Applications Overview
| Model | Image | Carrier / Make | Top Head | Pullback | Pulldown | Carousel | Control Panel | Dimensions | Applications |
|---|---|---|---|---|---|---|---|---|---|
| V-12 |  |
Ram 5500 4x4 | 2.5" thru-hole | 12,000 lbs | 7,000 lbs | 3"x20' - 7 rod | 7" display, CANBUS | 28'6" x 7'6", Up: 30', Down: 9'4" | Air rotary, Water well, Geothermal, Exploration |
| V-140X |  |
Peterbilt 548 6x6 | 2.4" thru-hole | 40,000 lbs | 22,100 lbs | 3"x20' - 17 rod | 12" touchscreen | 35'10" x 8', Up: 40', Down: 13'2" | Air rotary, Water well, Cathodic, Exploration |
| V-140TRX |  |
Cummins 9L 360HP | 2.4" thru-hole | 40,000 lbs | 22,100 lbs | Same as V-140X | 12" touchscreen | N/A | Air rotary, Water well, Geothermal, Exploration |
| MARK50 |  |
Peterbilt 567 6x4 | 2.4" thru-hole | 50,000 lbs | 28,000 lbs | 3"x20' - 15 rod | 12" touchscreen | 40' x 8.5', Up: 44', Down: 13'4" | Air rotary, Water well, Geothermal, Exploration |
| MARK70 |  |
Peterbilt 567 6x4 | 2.4" thru-hole | 70,000 lbs | 28,000 lbs | 4.5"x20' - 25 rod auto | 12" touchscreen | 40' x 8.5', Up: 44', Down: 13'4" | Air rotary, Water well, Geothermal, Exploration |
| VERSA-SONIC |  |
Peterbilt 548 6x4 | Sonicor 50k | 25,000 lbs | 22,100 lbs | No carousel | 4" touchscreen | 35'10" x 8', Up: 40', Down: 13'2" | Air rotary, Water well, Geothermal, Exploration |
Get Your Custom Water Well Drilling Rig Today
Whether it’s a large commercial job or a small residential drilling project, your Versa-Drill rig is built to accompany you on your toughest days. Get the custom equipment you need to get your work done. Contact us to get your water well drilling rig.
