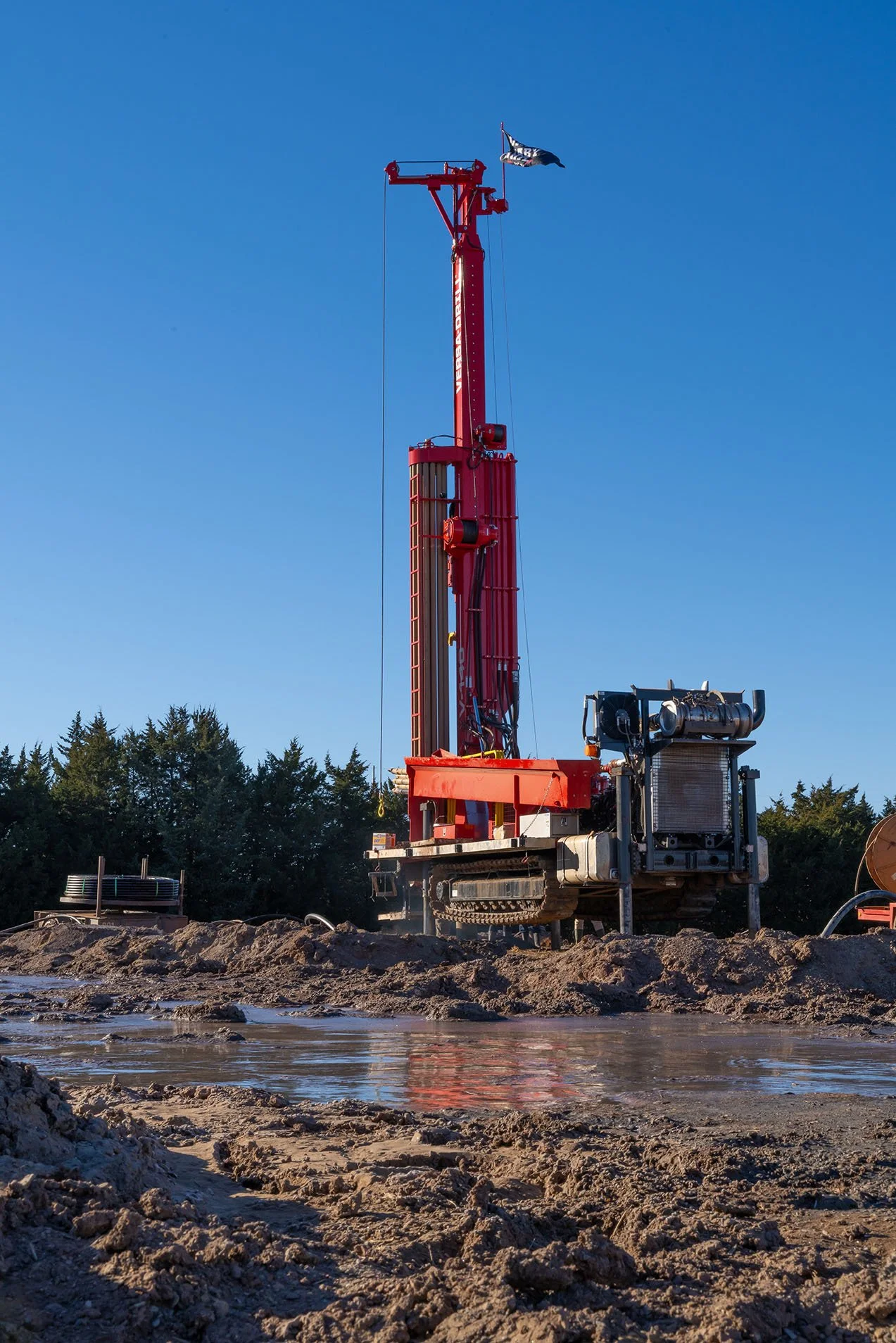

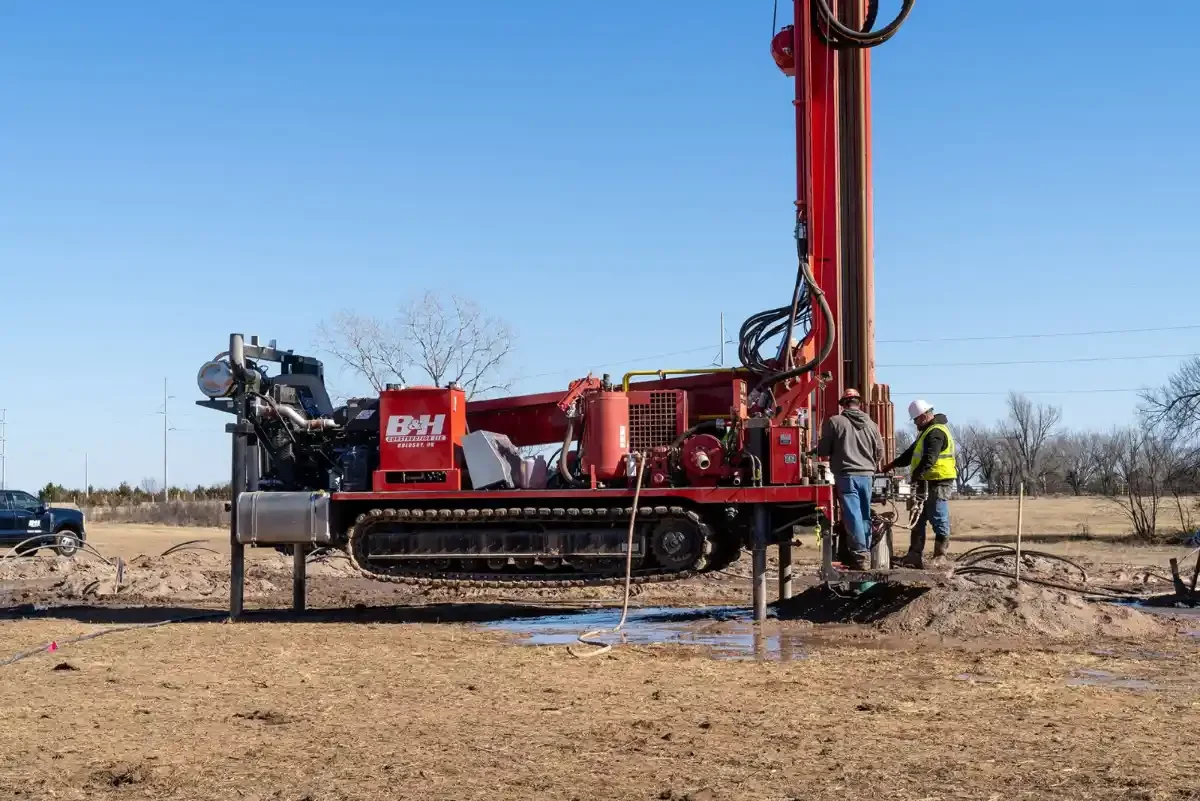

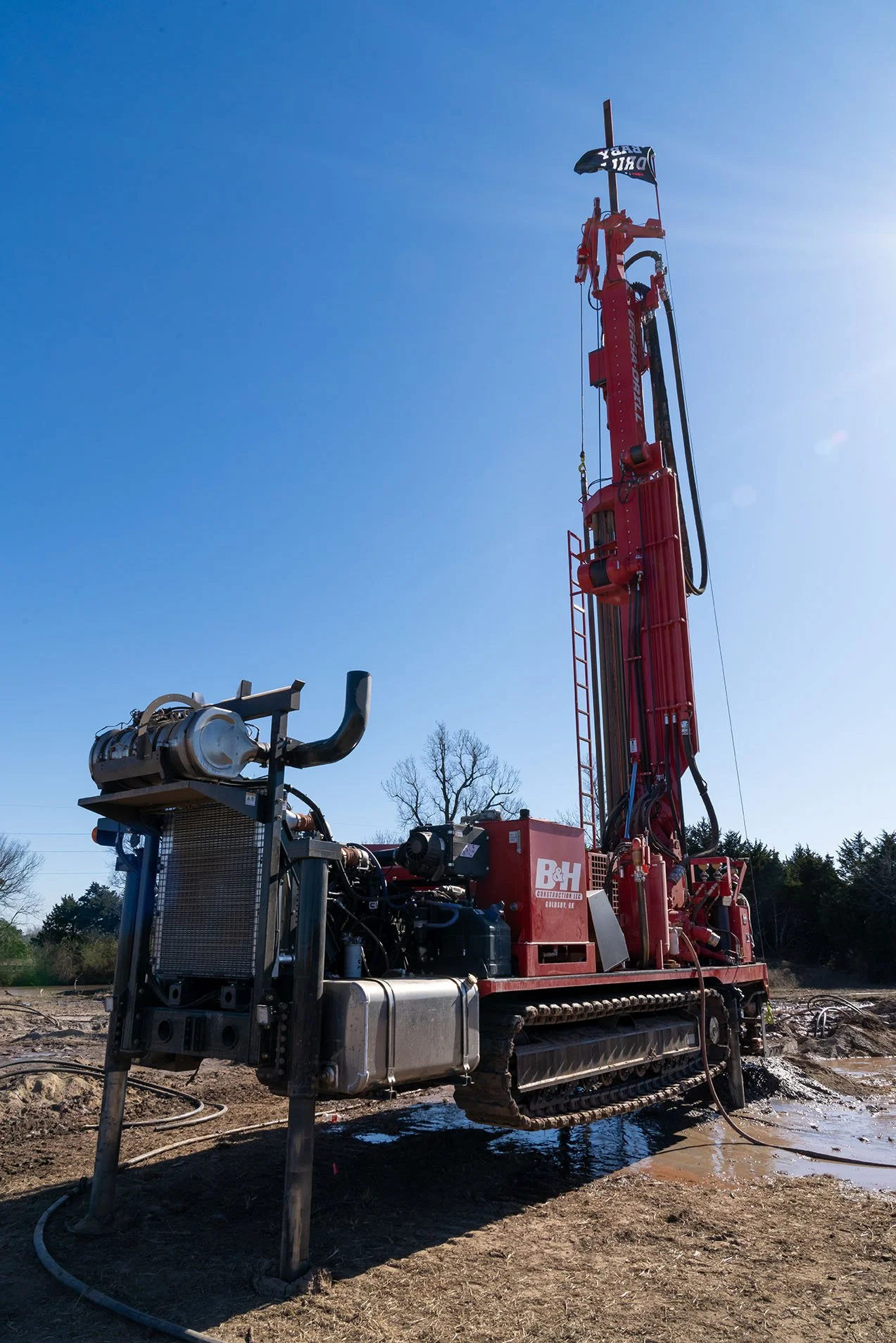

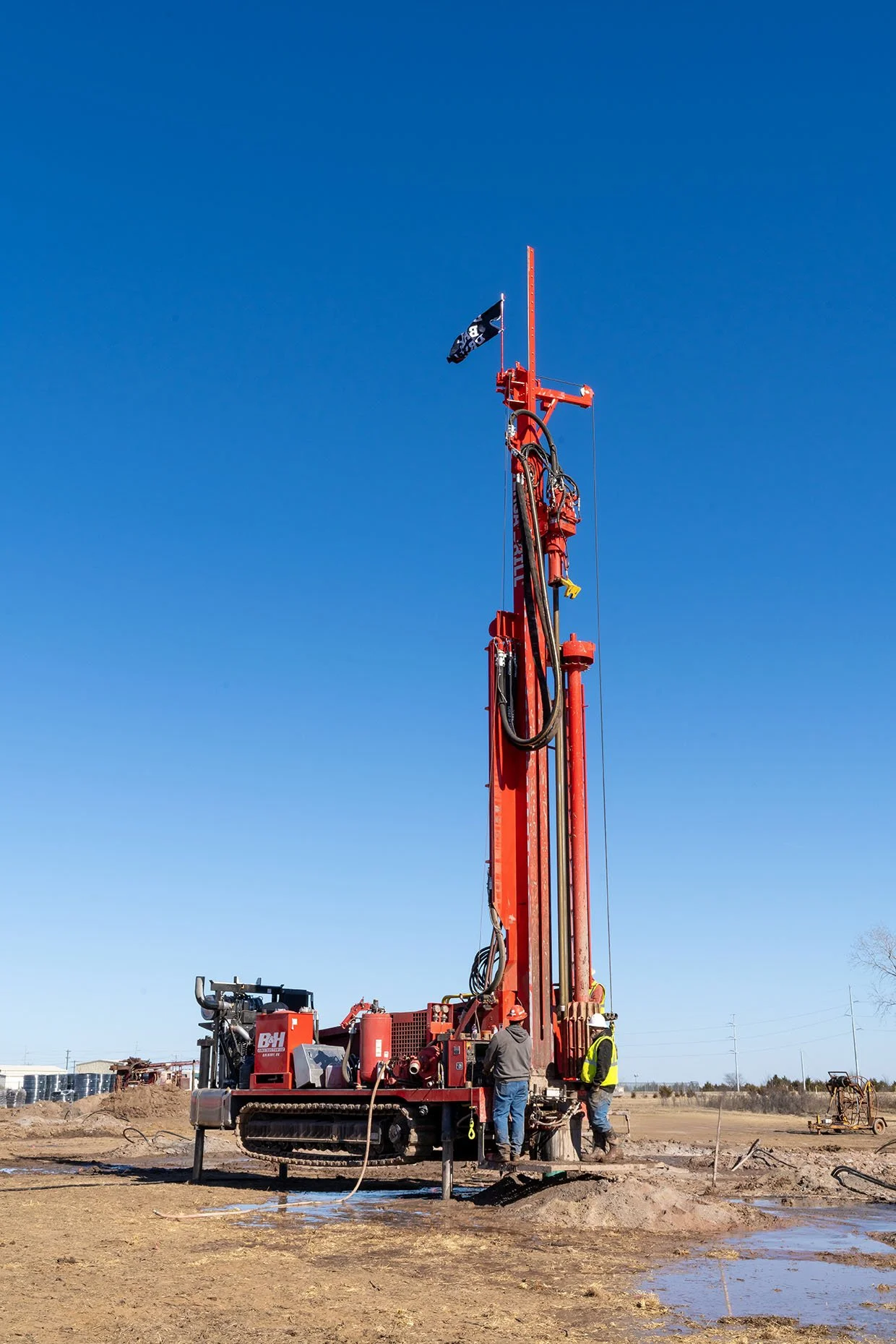

The Powerful V-140TRX Drilling Rig


Building on the V-125X and V-140X rigs, the Versa-Drill V-140 TRX exploration drilling rig has the same astonishing power with even more capability.

The V-140X’s unique rig is mounted on tracks, increasing its ability to endure the worst off-road conditions through mud and terrain. Completely customizable to drillers’ needs, this rig will prove itself to be a vital addition to your team.

With 40,000 lbs pullback and 22,100 lbs pulldown, the V-140TRX is ideal for geothermal and high-production work. On top of all these capabilities, this model continues our promise of ease, safety, and simplicity. Trust the V-140TRX’s adaptable and impressive power for your most difficult drilling sites.

APPLICATIONS FOR THE V-140trx Drilling Rig:

  • Air Rotary Drilling

  • Cathodic Protection Drilling

  • Water Well Drilling

  • Exploration Drilling

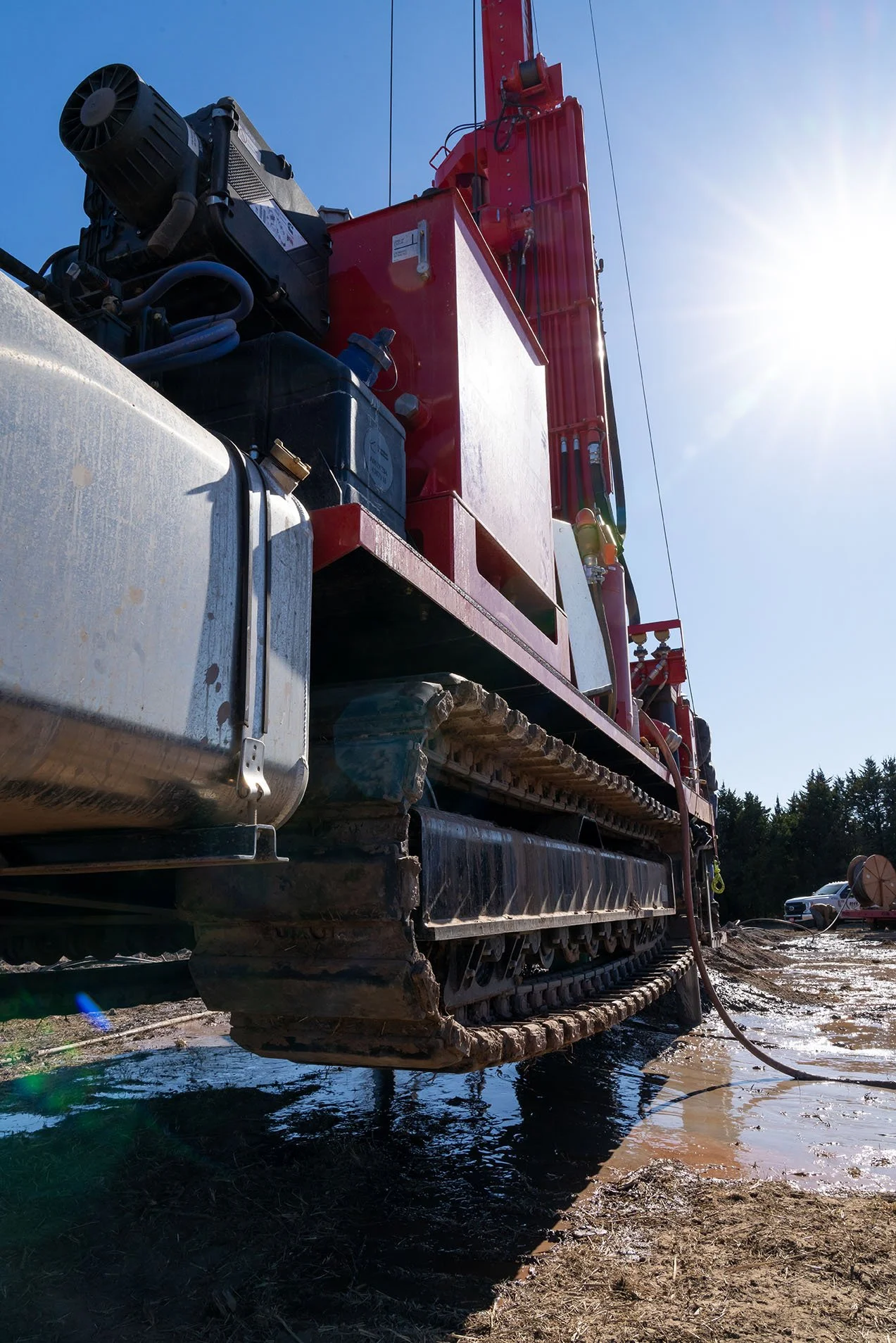

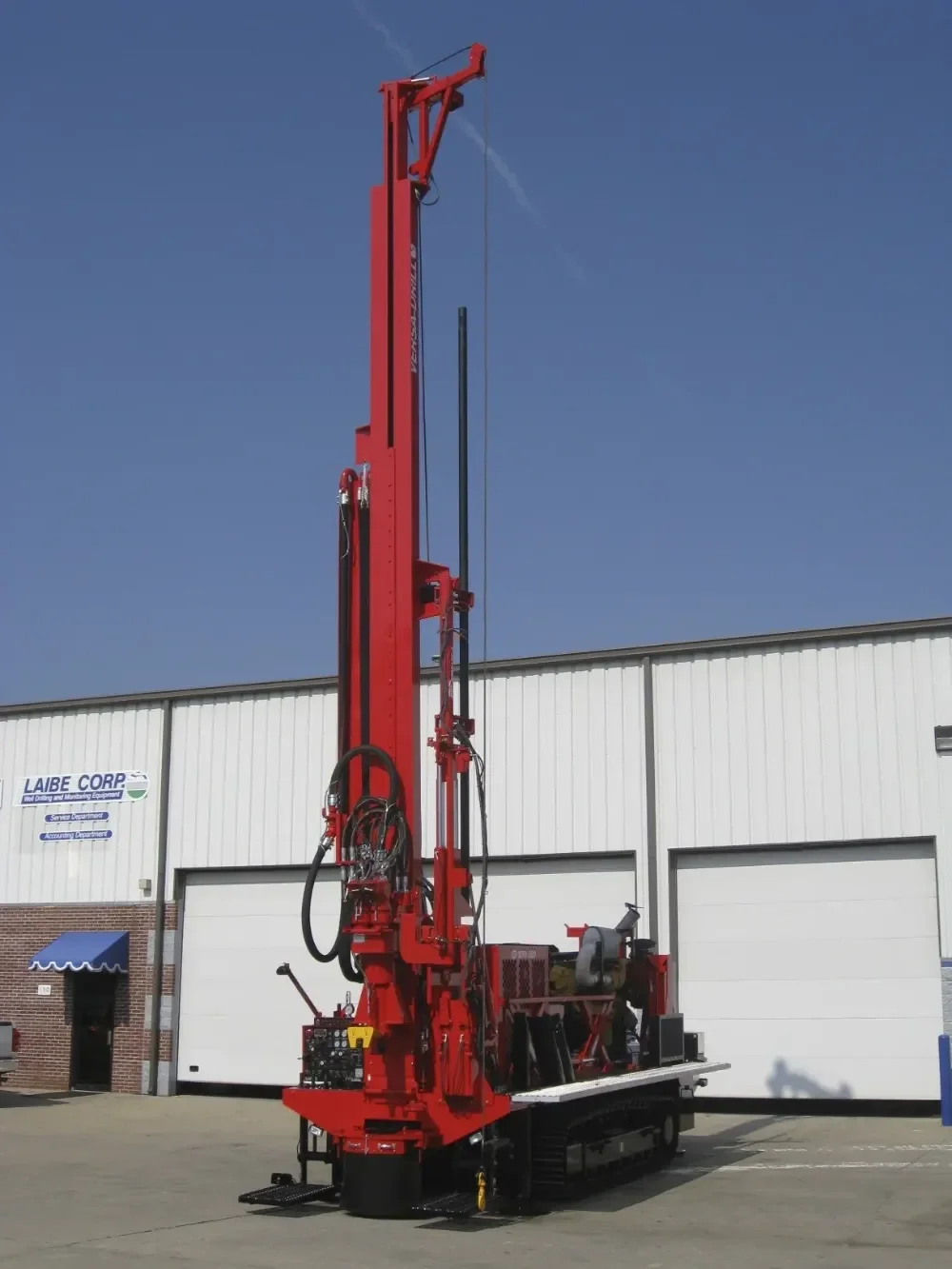

The V-140TRX drilling rig is equipped with tracks or a crawler system, allowing for easy maneuverability on challenging terrains.

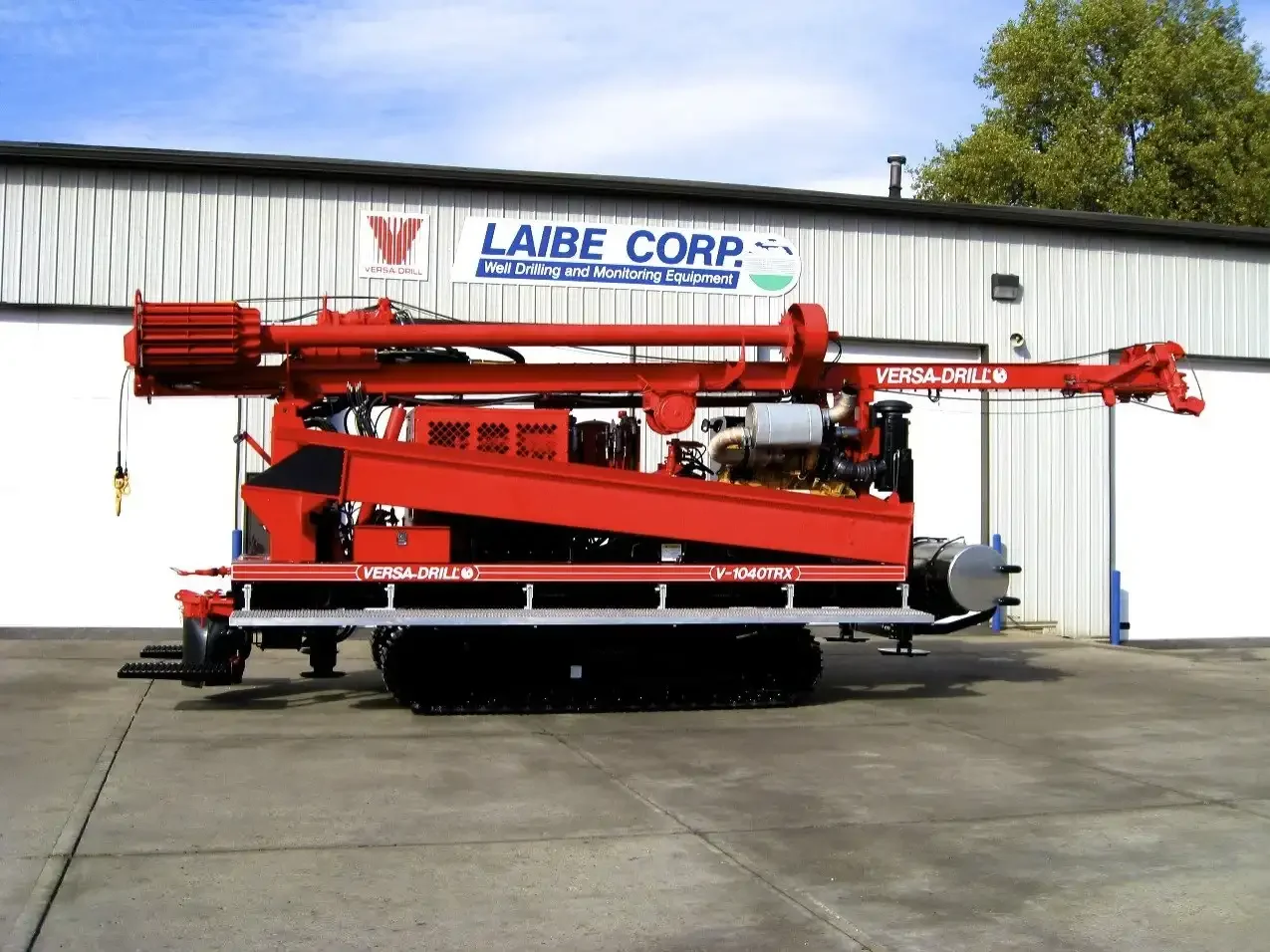

Built with robust materials and construction, the V-140TRX drilling rig is rugged and can withstand demanding drilling conditions.

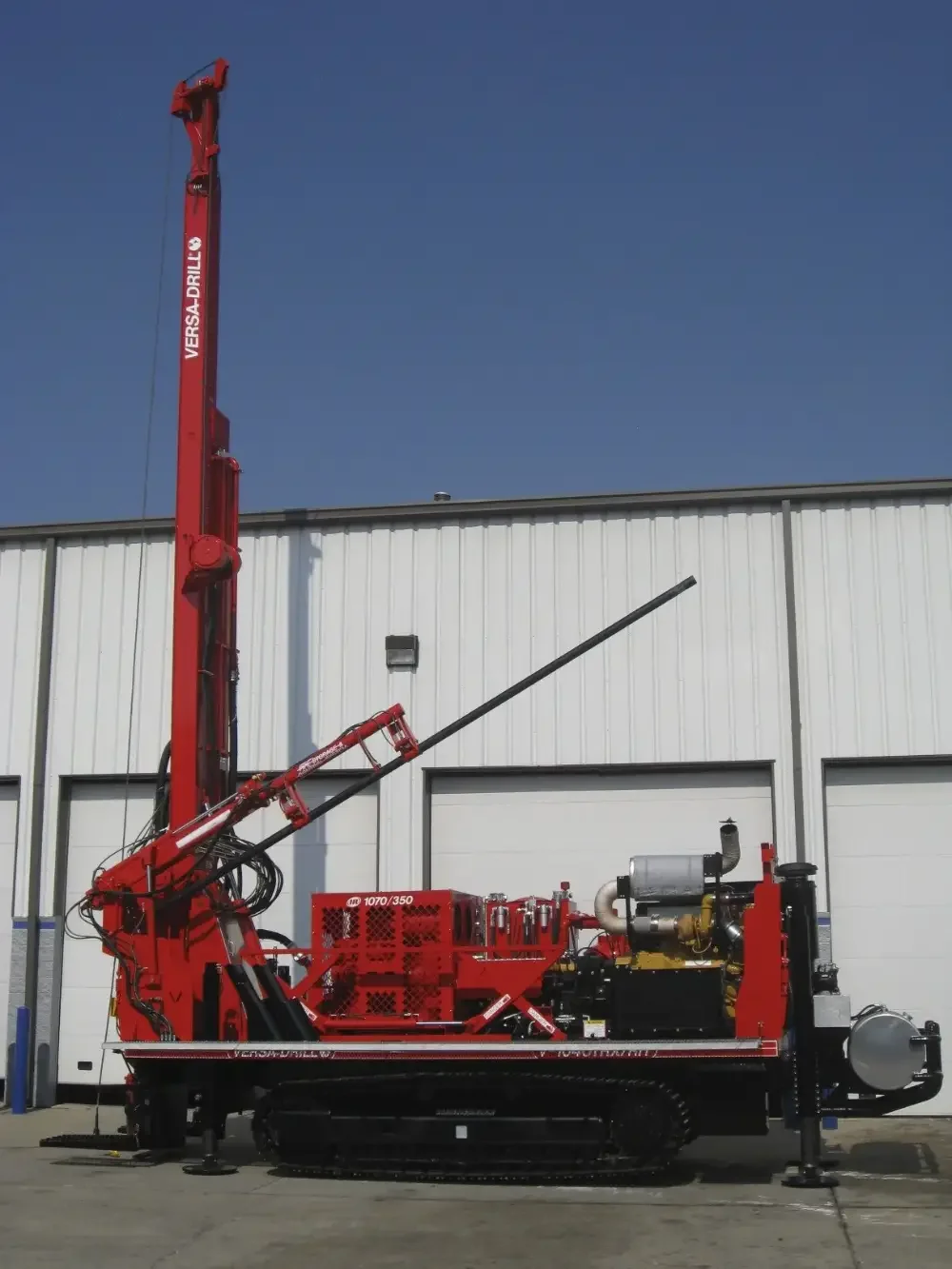

The V-140TRX drilling rig can be set up and ready for drilling in a short amount of time, maximizing productivity.

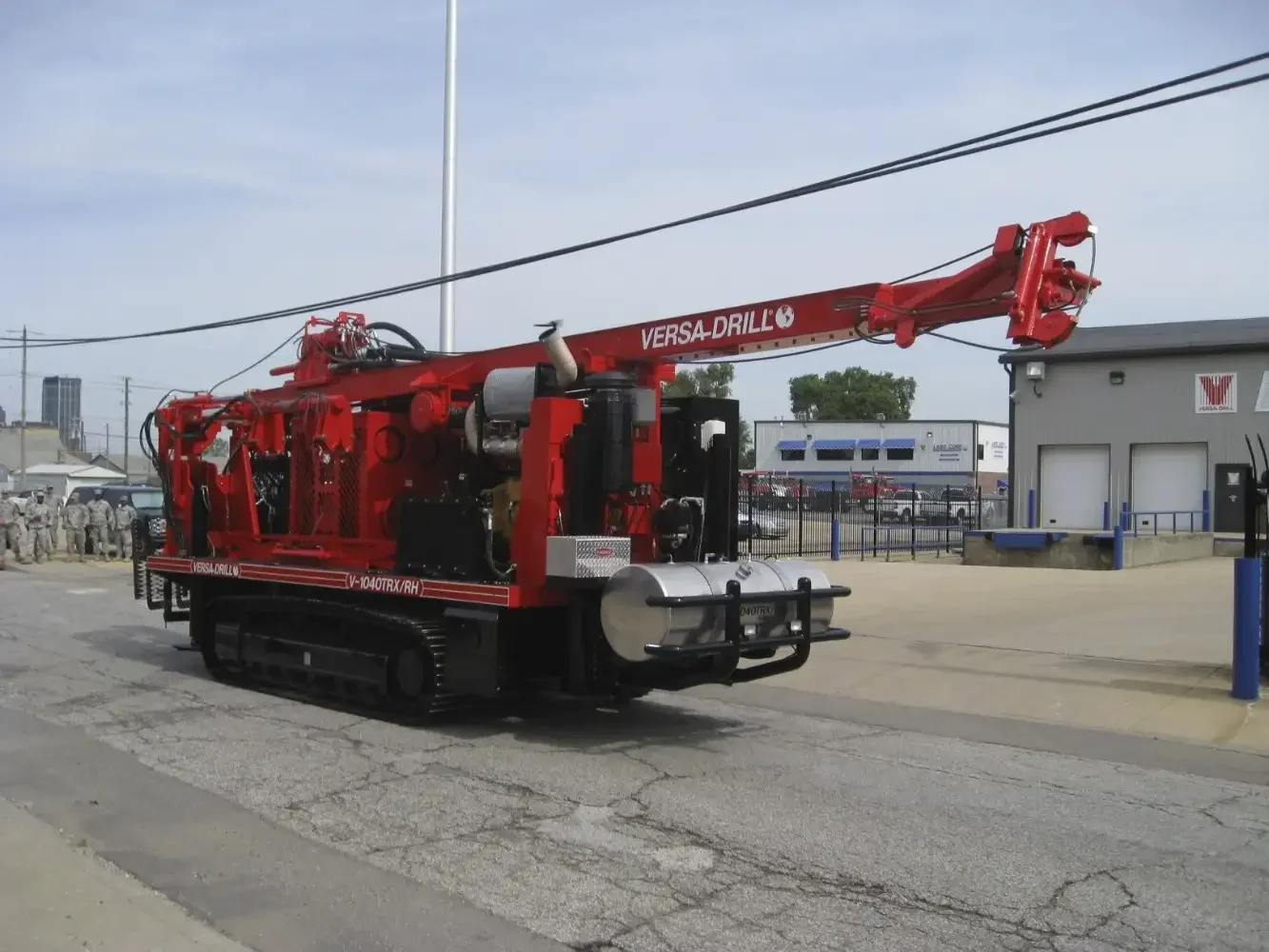

The V-140TRX drilling rig can be customized to meet specific drilling requirements and preferences.

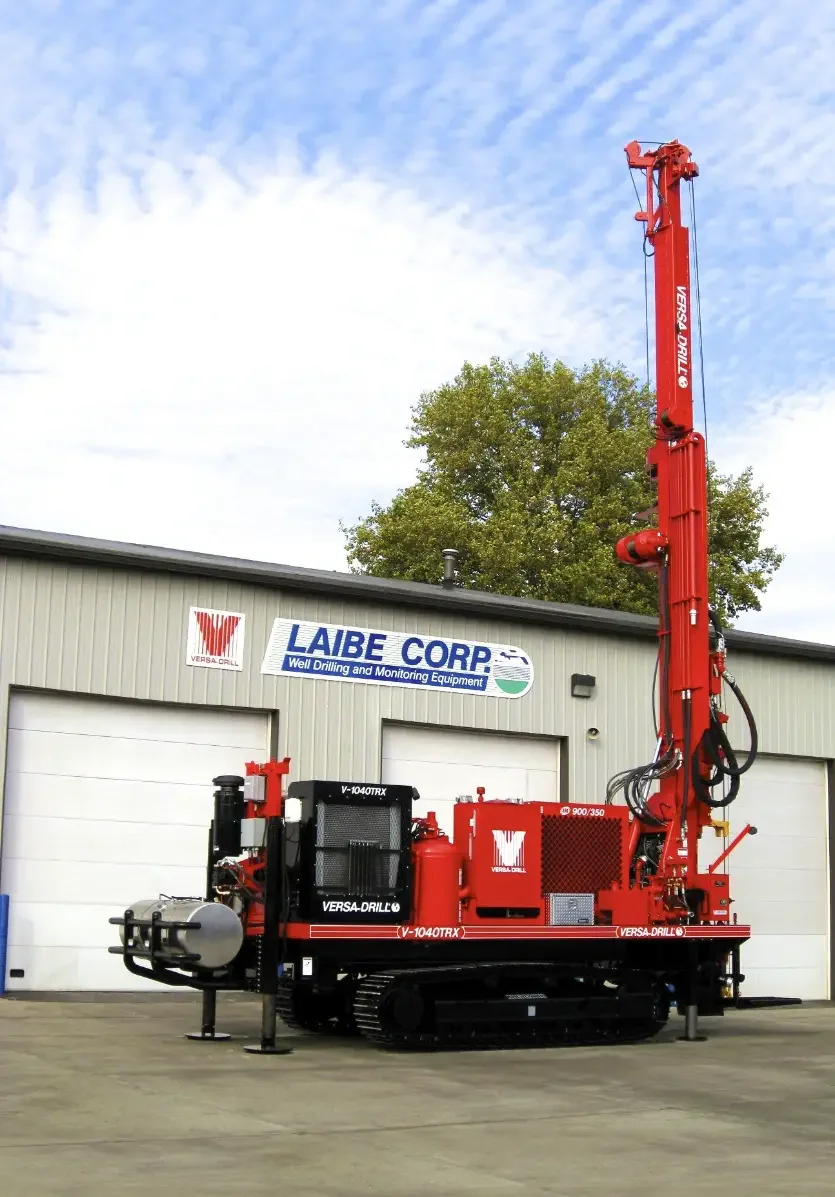

The V-140TRX drilling rig meets environmental regulations and standards, minimizing its impact on the environment.

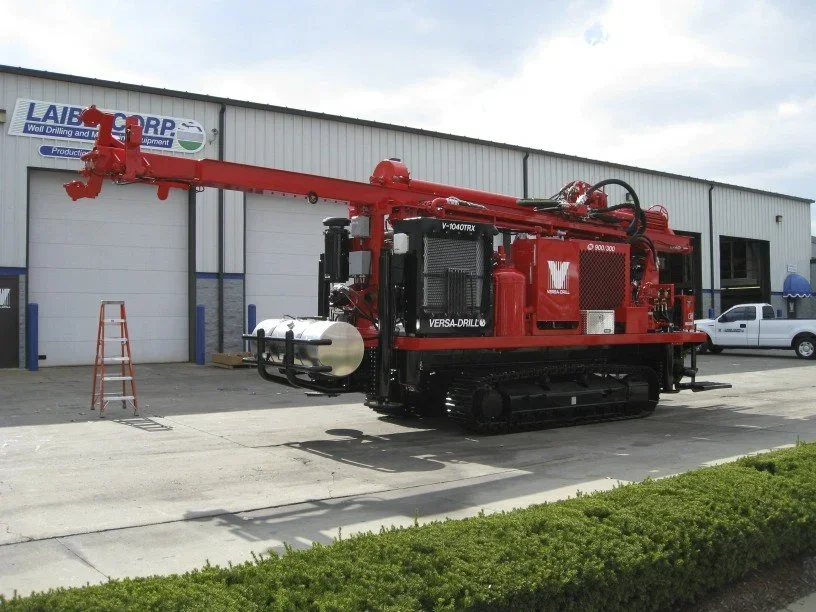

The V-140TRX drilling rig supports advanced drilling methods and technologies, improving efficiency and results.

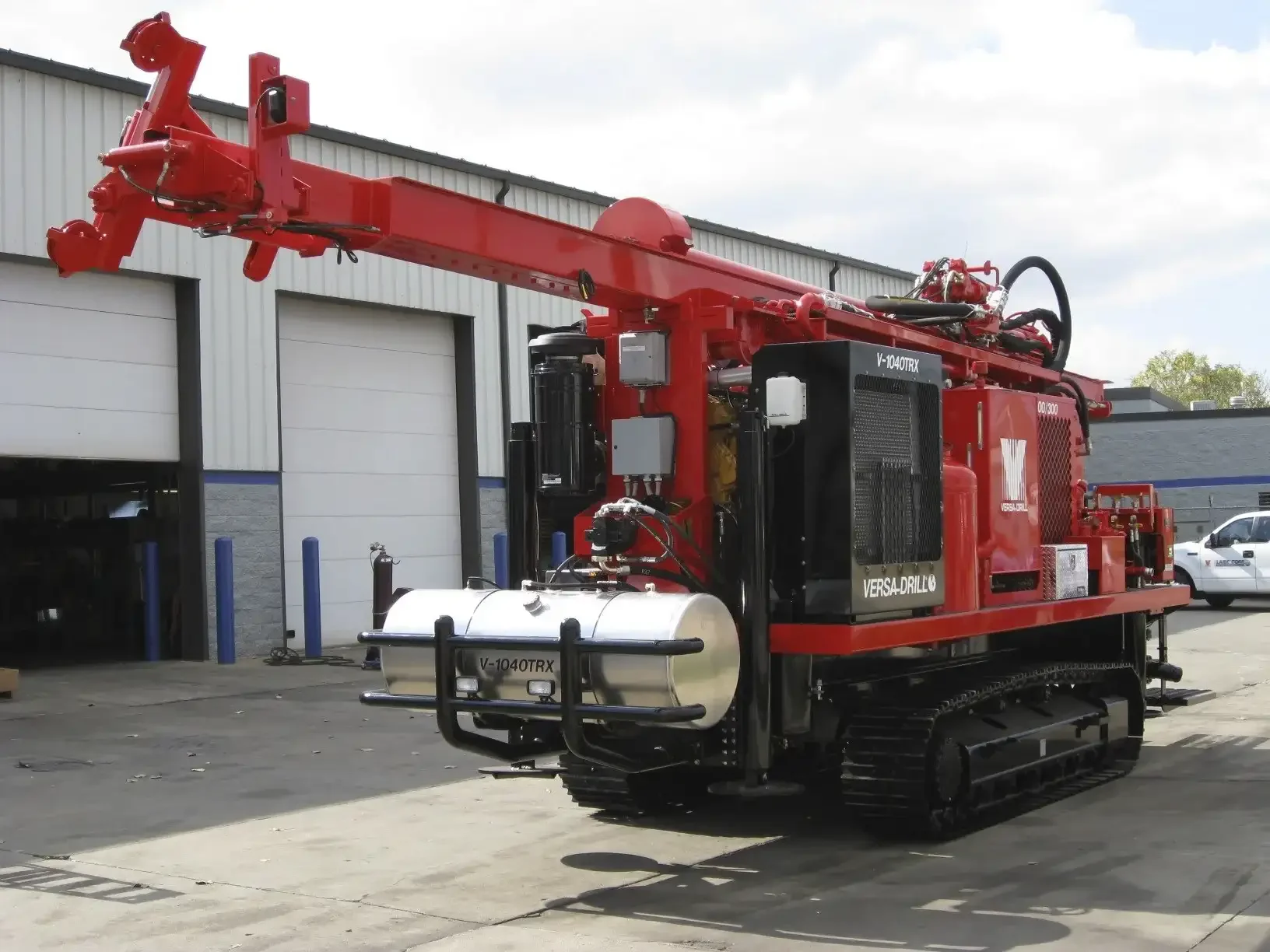

The V-140TRX drilling rig is backed by Versa-Drill's reputation as a trusted and respected manufacturer of drilling rigs.

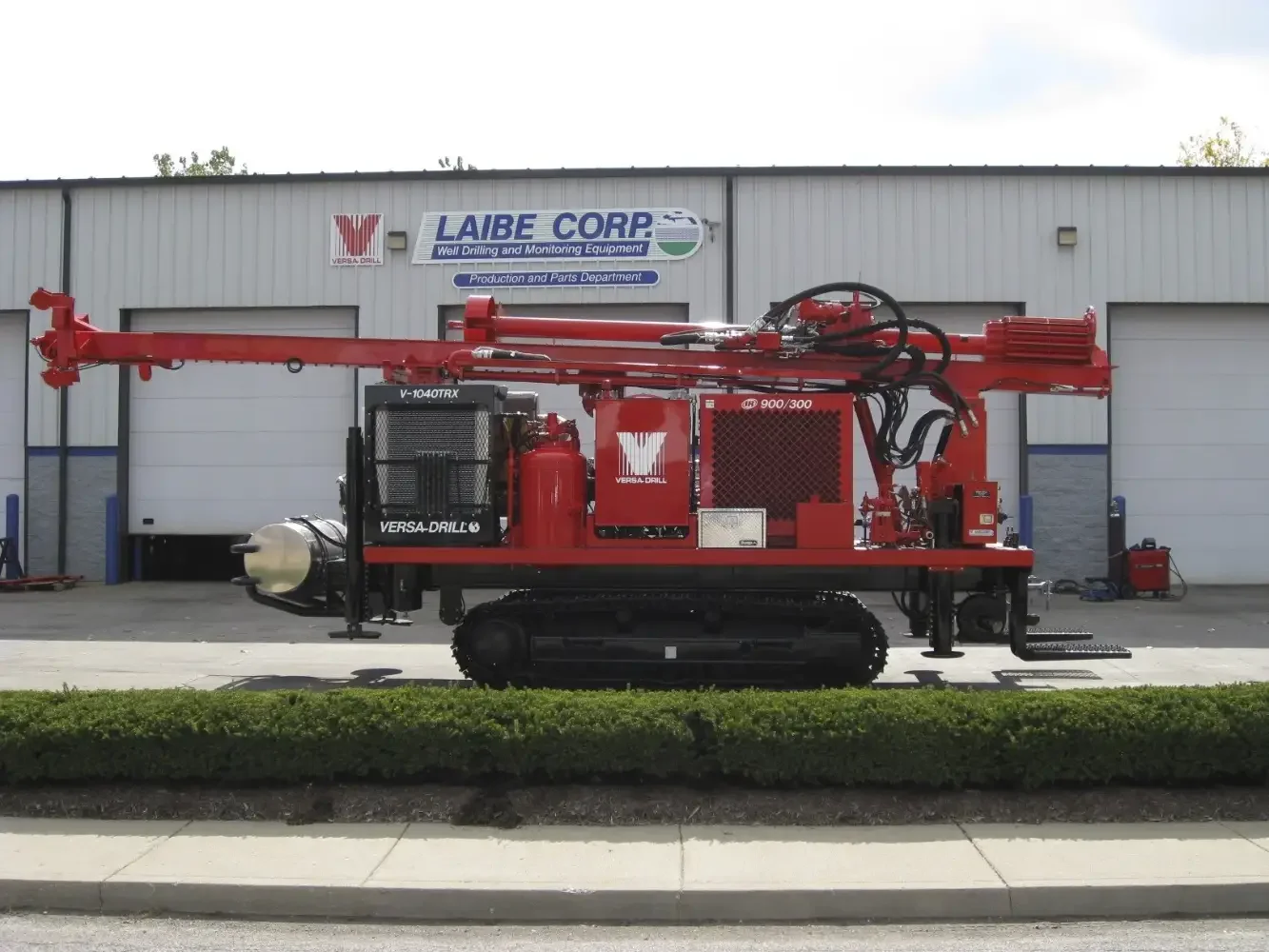

The V-140TRX drilling rig requires minimal maintenance, resulting in cost and time savings.



V-140 TRX Drilling Rig spec sheet

CENTRALIZER TABLE

  • 13.25” through centralizer bushings

  • 18” fully open

CONTROL PANEL

  • Electric over hydraulic controls

  • Marine grade electric switches

  • Hydraulic joysticks

  • 12” touch screen display

  • Twin height adjustable aluminum platforms

  • Aluminum console cover

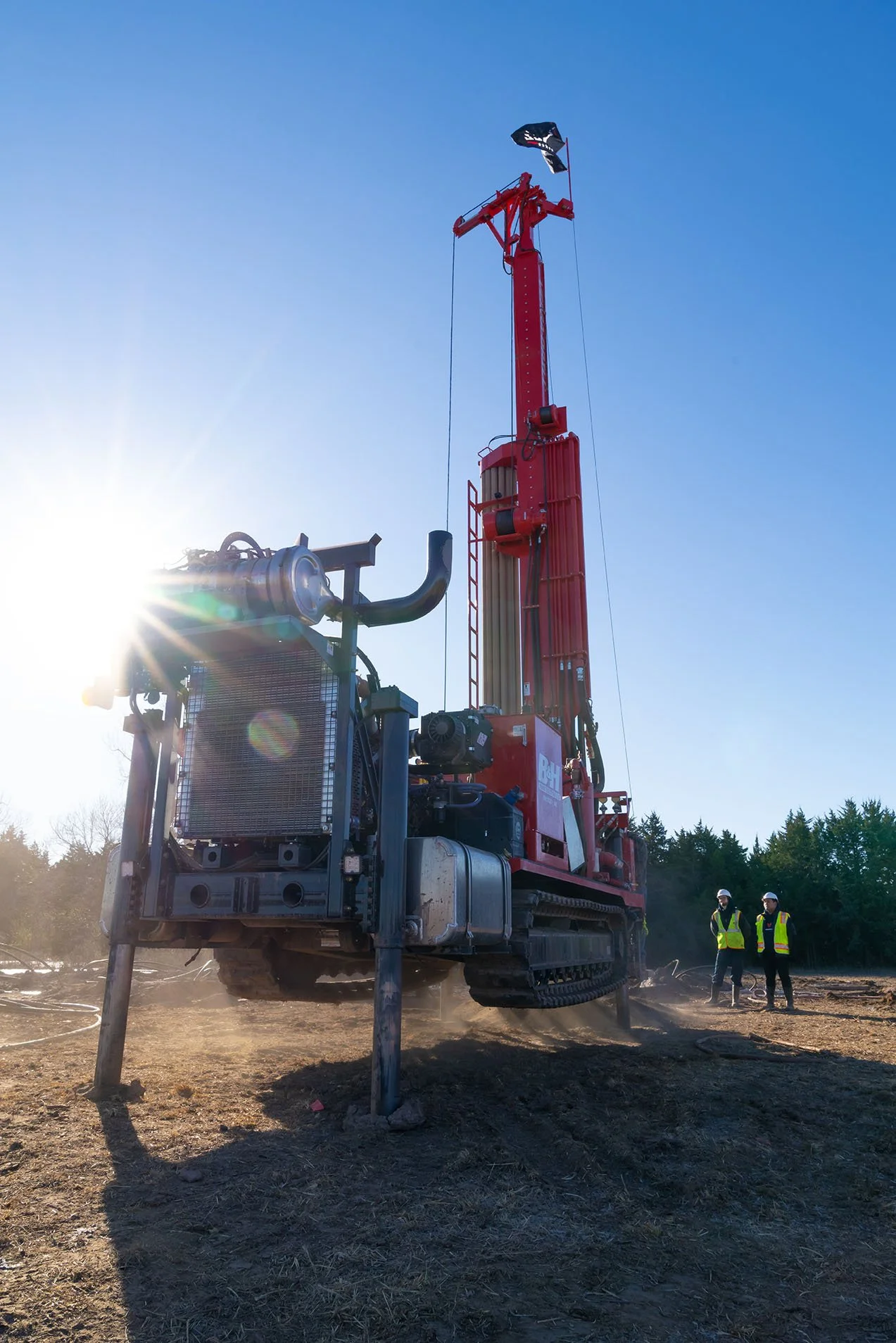

LEVELING JACKS

  • Four 36” stroke independently controlled with precision digital inclinometer leveling

NIGHT LIGHTS

  • 4 LED night lights

TOOLBOXES

  • 59”x24”x26”

  • 24”x24”x26”

  • 12”x12”x32”

Standard Features and Specifications

CARRIER

  • Cummins 9L

  • Track mounted

HYDRAULIC SYSTEM

  • Bosch Rexroth

  • 3 auxiliary hydraulic connections

TOP HEAD

  • Variable 3-speed/torque with 2.4” thru-hole

  • 0-125 rpm @ 8,100 lbf·ft

  • 0-175 rpm @ 5,840 lbf·ft

  • 0-250 rpm @ 3,545 lbf·ft

DERRICK & FEED SYSTEM

  • 26’ top head stroke

  • 40,000 lbs pullback

  • 22,100 lbs pulldown

  • 120 FPM up

  • 217 FPM down

CAROUSEL

  • 3”x20’ - 17 rod carousel/18 rod box

  • 3.5”x20’ - 15 rod carousel/15 rod box

  • 4.5”x20’ - 11 rod carousel/9 rod box

MAIN WINCH

  • 12,000 lb.

OPTIONS (at additional cost)

WATER INJECTION

  • 25 gpm FMC

  • 75 gpm FMC

  • Foam pulse pump

ADDITIONAL OPTIONS

  • In-deck grouter (multiple options)

  • Hose reel (multiple options)

  • Aluminum catwalk

  • Remote pendant for winches & jib boom

  • Versa-Rod spinner

  • 1-2-3 slot hammer holder

  • Stabilizer bushings

  • 300-gallon mud pit assembly

  • The MUD MANAGER solids control system

  • Water transfer pump (multiple options)

MAIN WINCH

  • 18,000 lb.

AUXILIARY WINCH

  • 4,000 lb.

  • Free fall options available

MUD PUMP

  • 4x3x13 centrifugal 425 gpm/300 psi

  • 5x6 piston 200 gpm/310 psi

  • 5.5x8 piston 317 gpm/338 psi

  • 6x8 piston

AIR COMPRESSOR

  • 500 cfm/200 psi Vanair

  • 600 cfm/250 psi Vanair

  • 1070 cfm/350 psi Doosan

LINE OILER

  • 7-gallon venturi

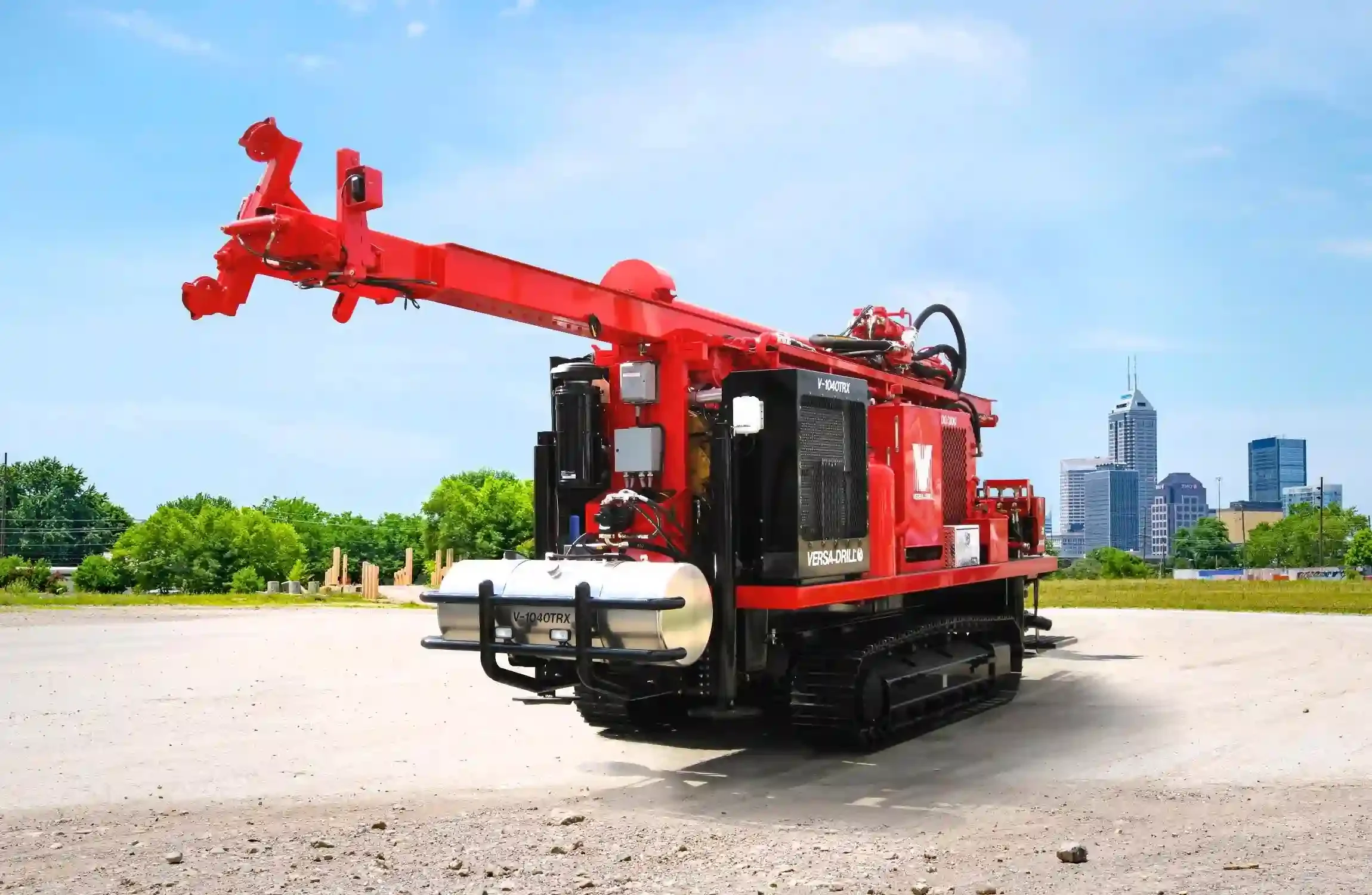

Versa-Drill V-140TRX

Versa-Drill V-140TRX

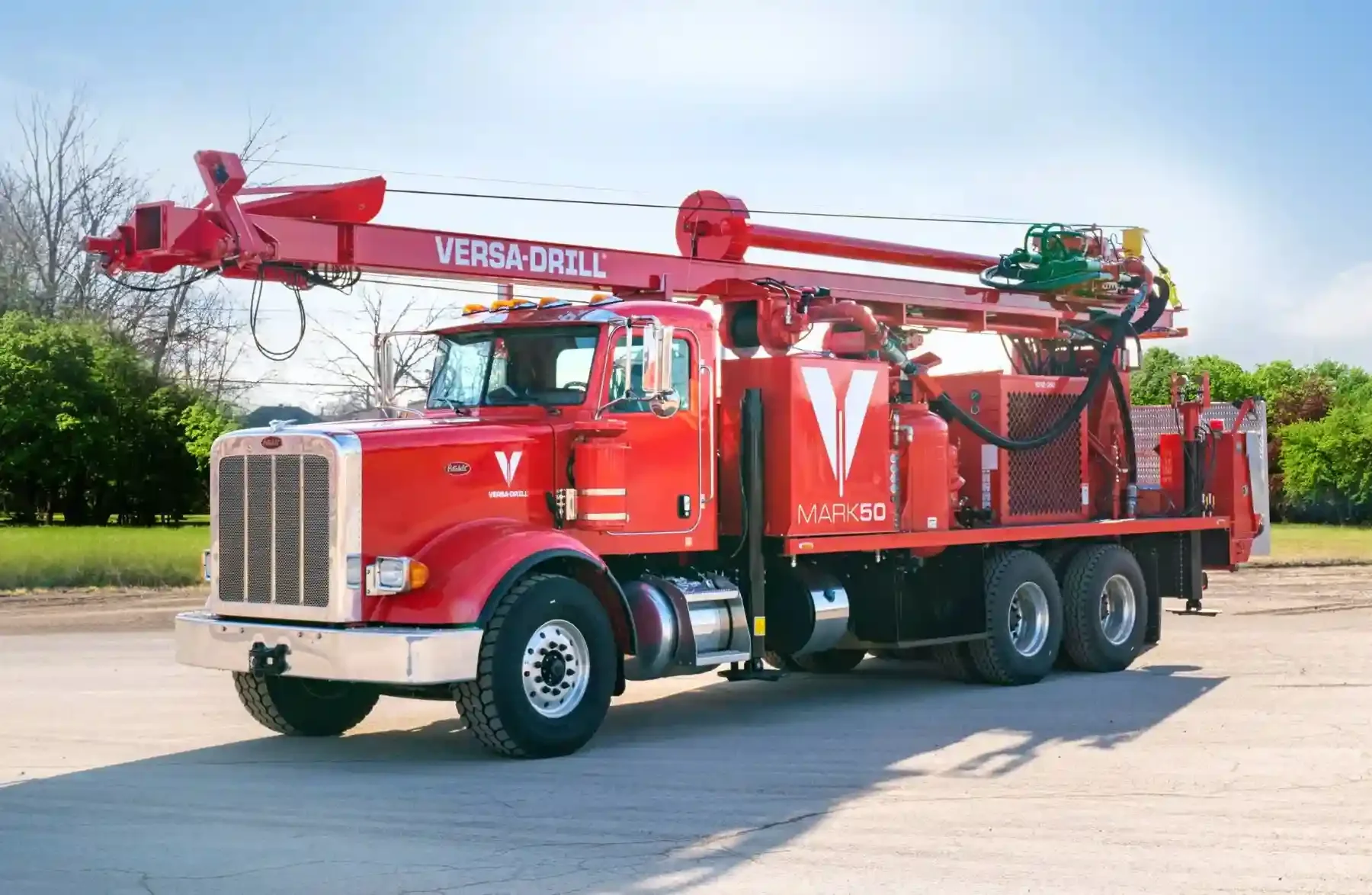

Versa-Drill MARK50

Versa-Drill MARK50

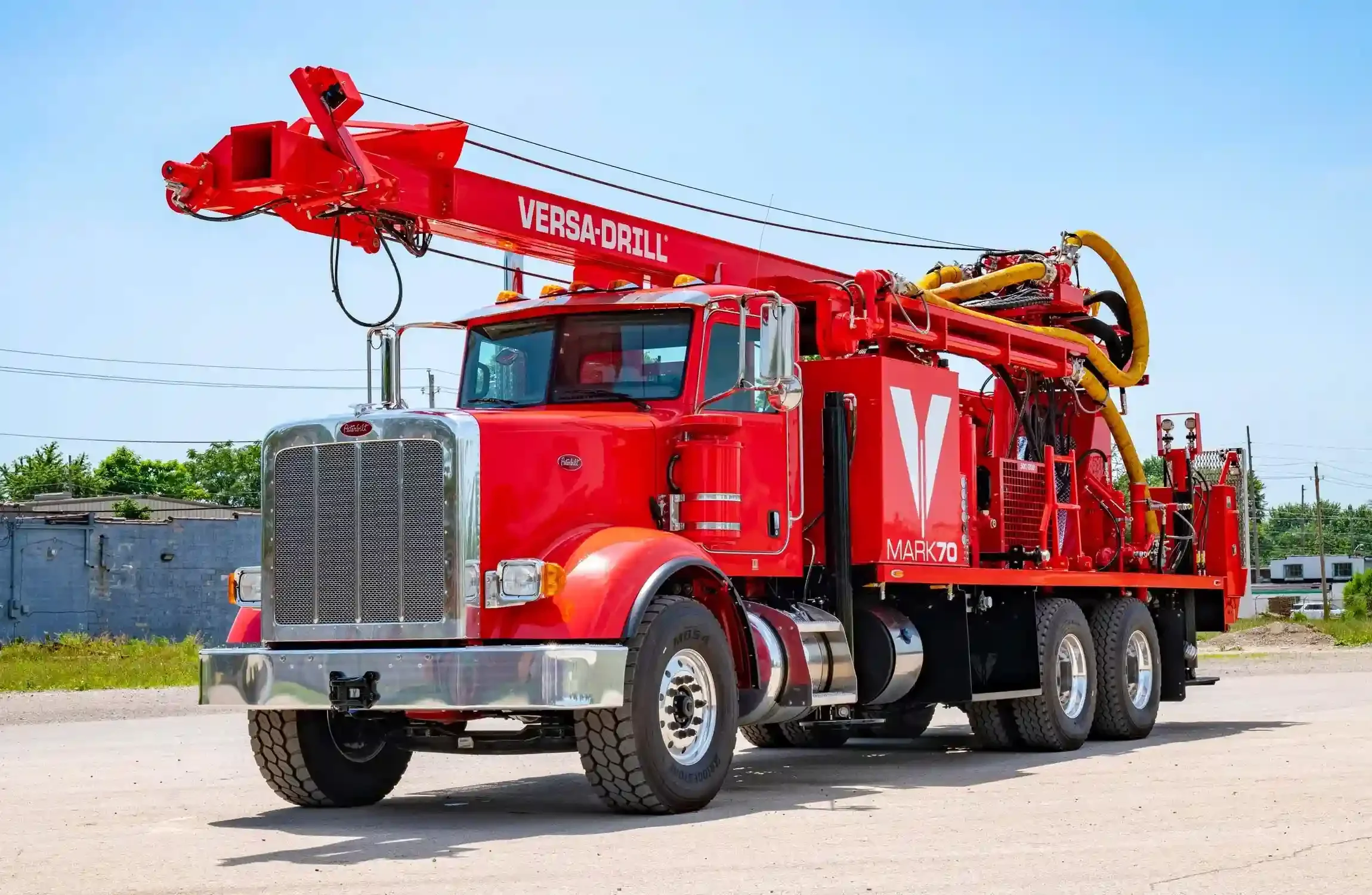

Versa-Drill MARK70

Versa-Drill MARK70

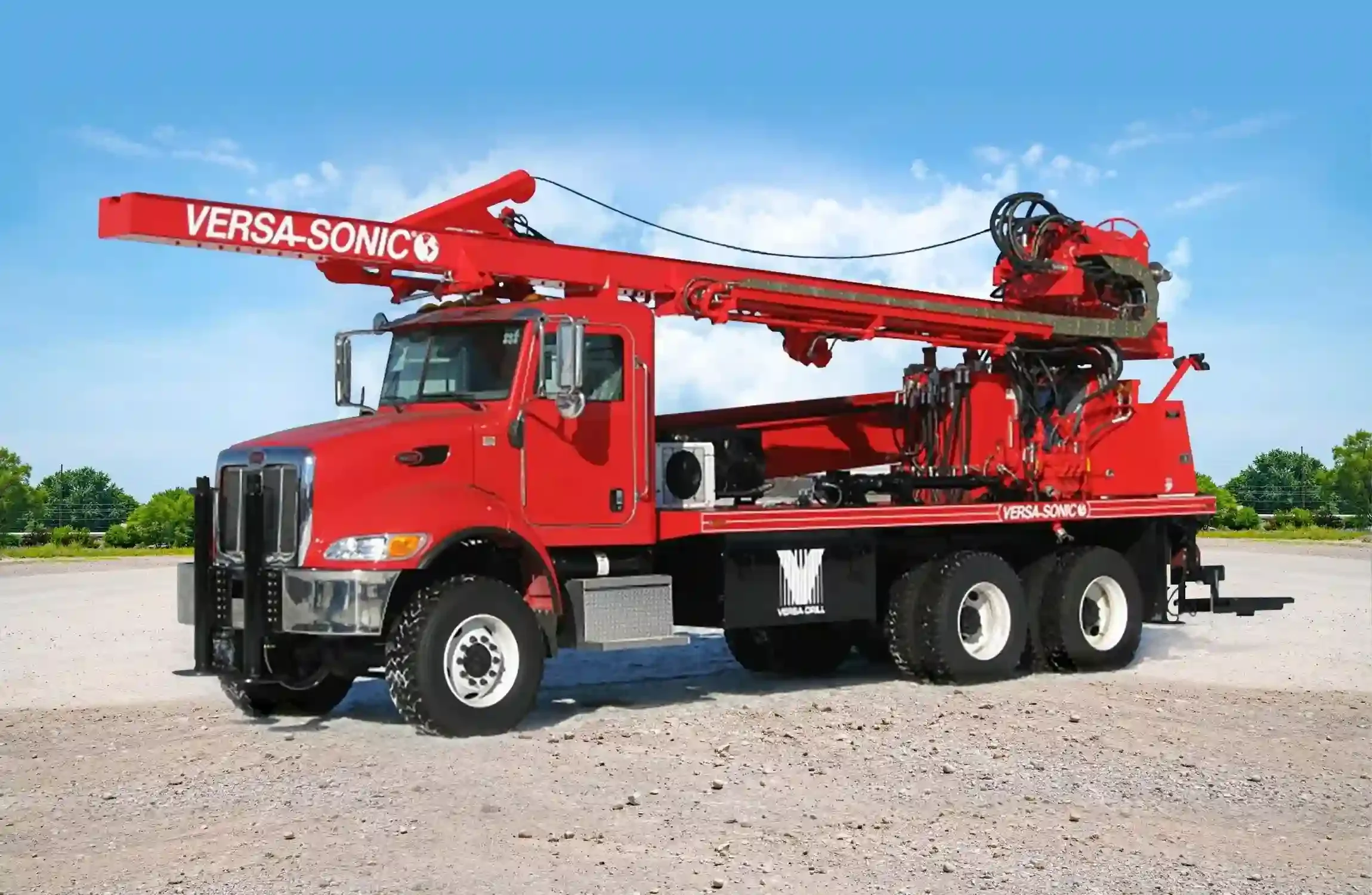

Versa-Drill Versa-Sonic

Versa-Drill Versa-Sonic

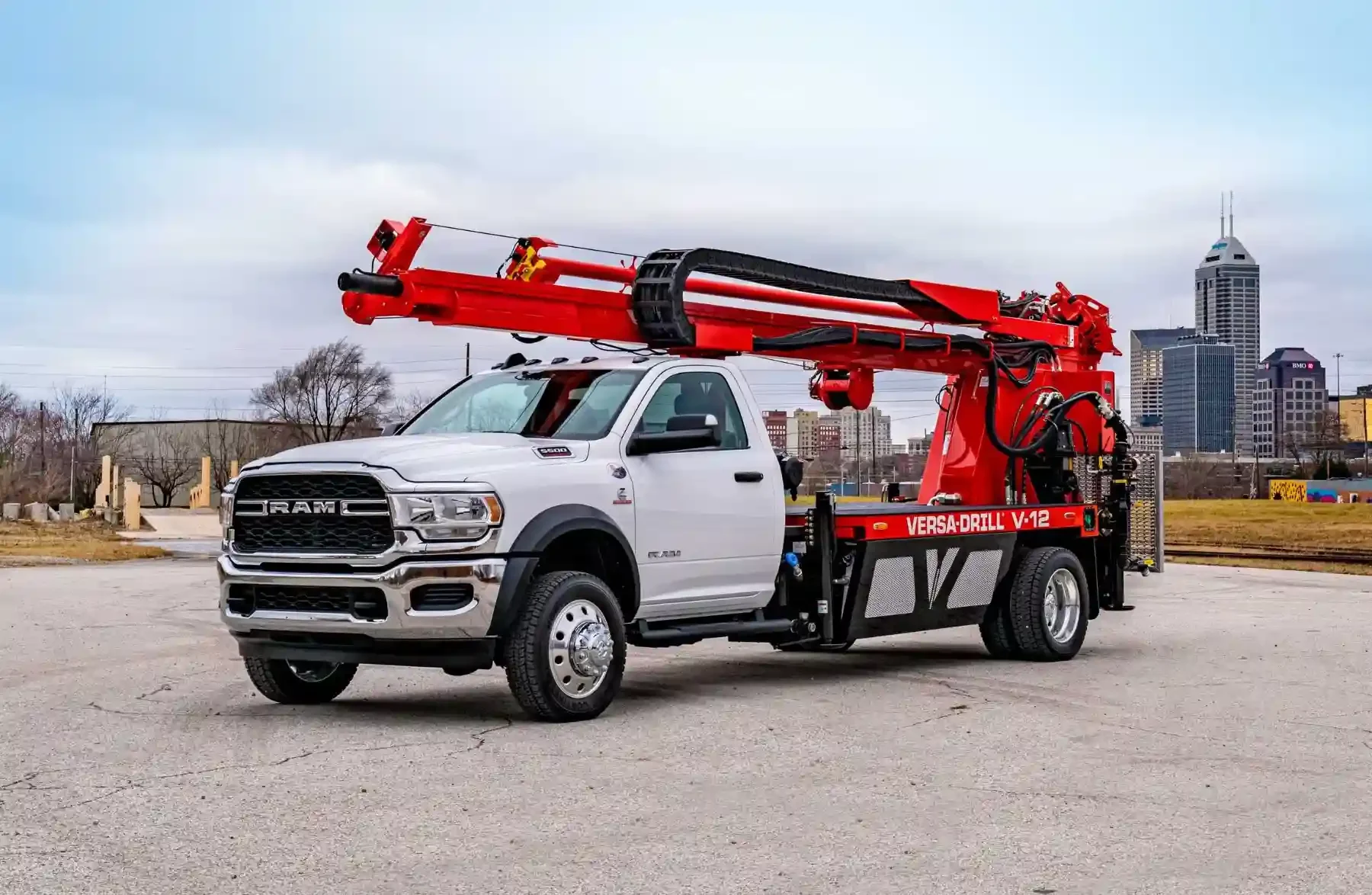

Versa-Drill V-12

Versa-Drill V-12

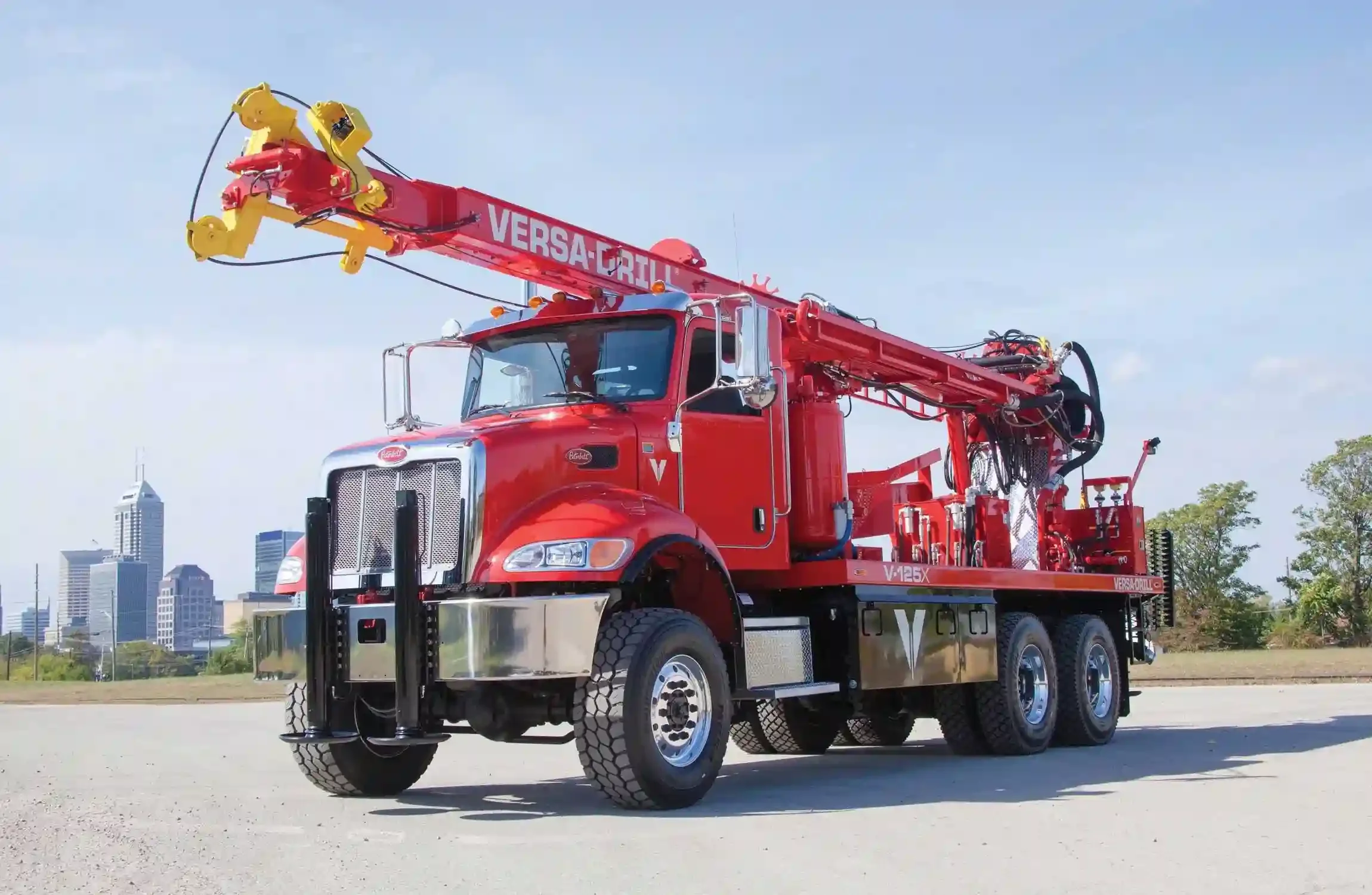

Versa-Drill V-125X

Versa-Drill V-125X

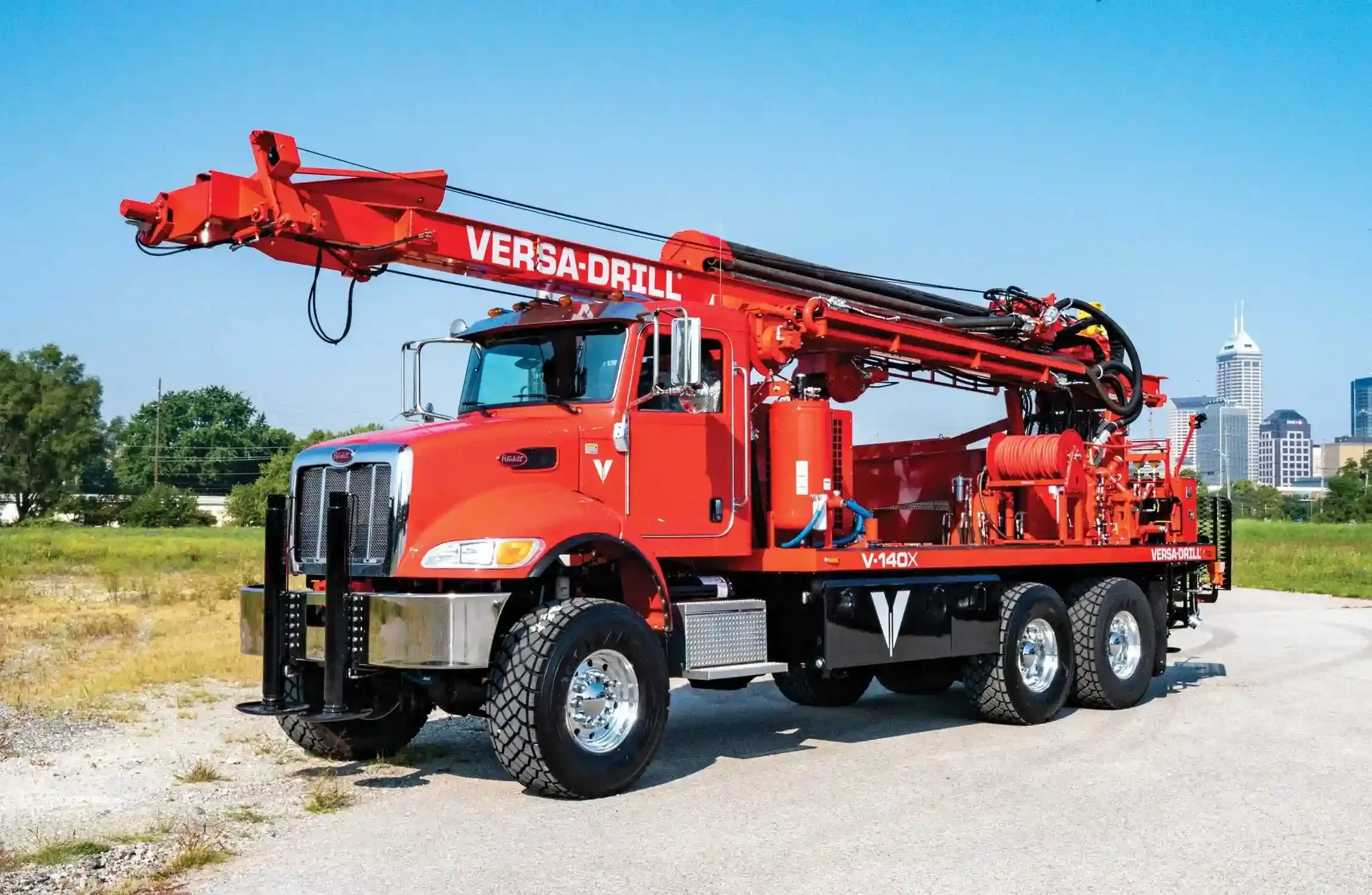

Versa-Drill V-140X
